FBASS10-18 10"/250mm Bass Speaker

LaVoce
Your price:
€ 54,70
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to

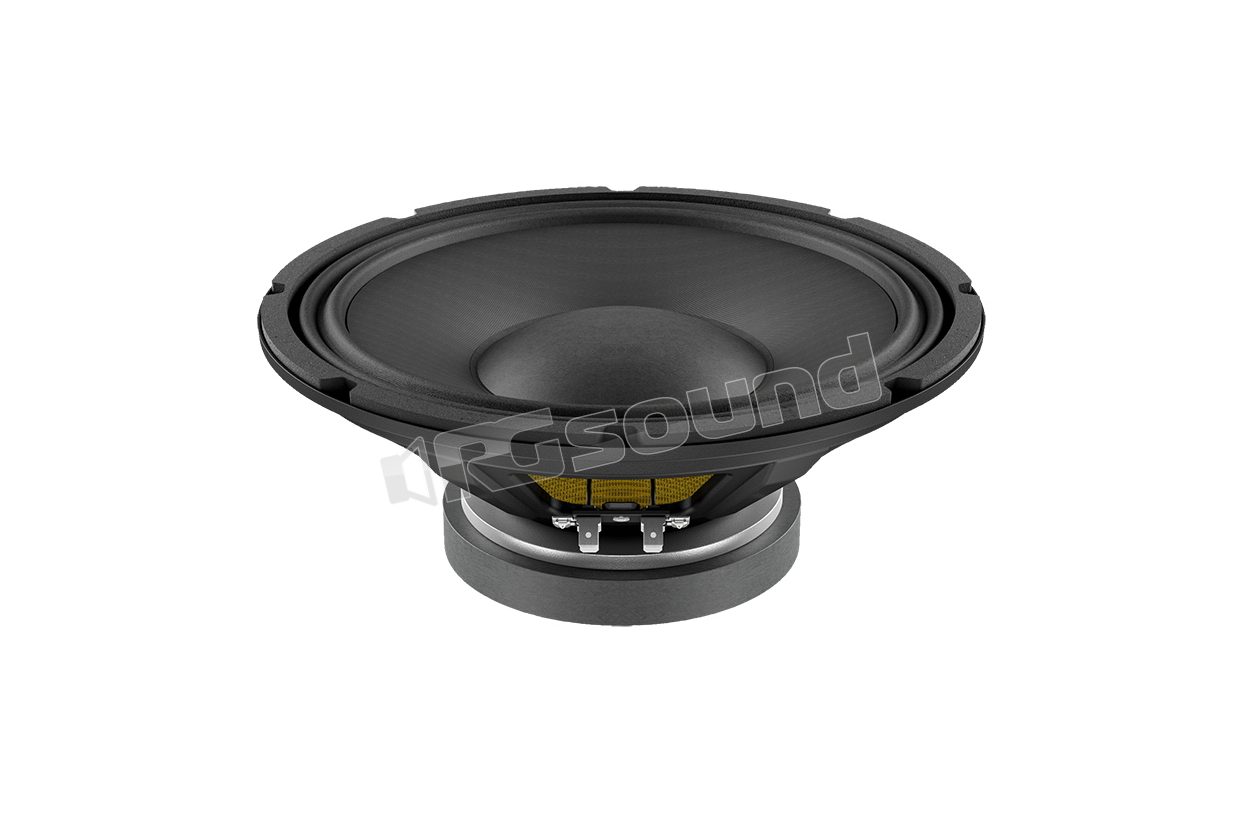

LaVoce FBASS10-18-8 Bass Speaker 10"/250mm

LaVoce code 70R60100

FBASS10-18-8 Features

  • Copper voice coil 1.8 inches
  • Sensitivity 96 db/spl
  • Program power handling 300 watts
  • Balanced and rich overall tone
  • Solid bass and intense midrange

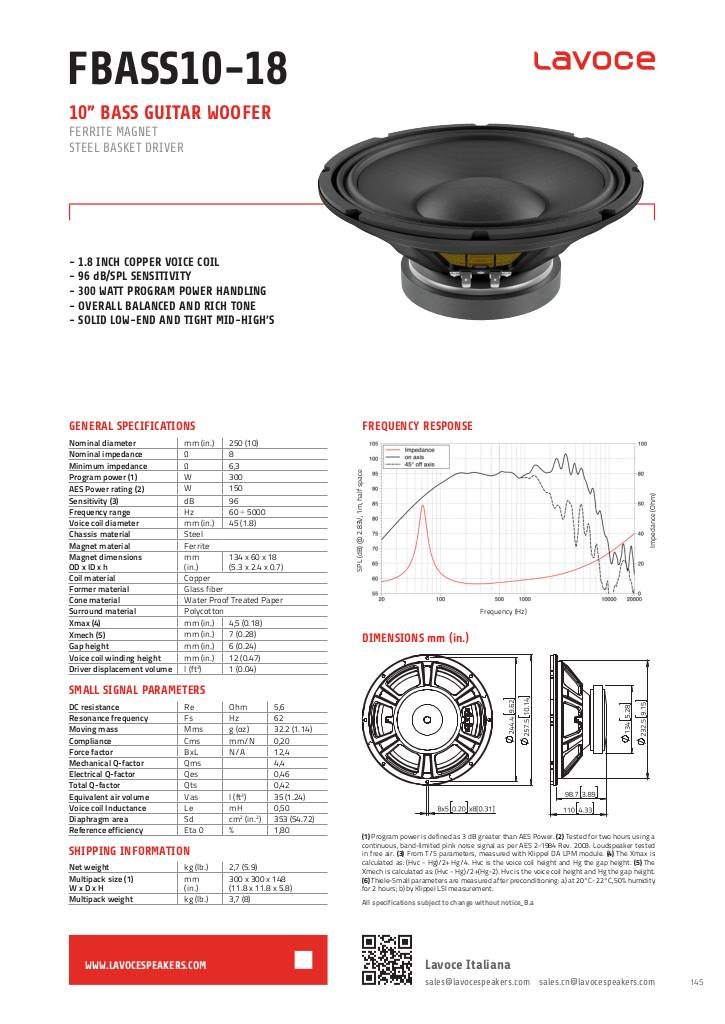

scheda tecnica

1549117508-fbass10-18-8-1.pdf

LaVoce FBASS10-18-8 Technical Specifications

  • Nominal diameter mm (in) 250 (10)
  • Nominal impedance Ohm 8
  • Minimum impedance Ohm 6.3
  • Program power W 300
  • AES power W 150
  • Sensitivity dB 96
  • Frequency range Hz 60 ÷ 5000
  • Voice coil diameter mm (in) 45 (1.8)
  • Frame material Steel
  • Magnet material Ferrite
  • Magnet dimensions OD x ID x h mm (in) 134 x 60 x 18 (5.3 x 2.4 x 0.7)
  • Coil material Copper
  • Cone structure material Fiberglass
  • Cone material Waterproof treated paper
  • Surround material Polycotton
  • Xmax mm (in) 4.5 (0.18)
  • Xmech mm (in) 7 (0.28)
  • Gap height mm (in) 6 (0.24)
  • Voice coil winding height mm (in) 12 (0.47)
  • Driver displacement volume l (ft³) 1 (0.04)
  • DC resistance Ohm 5.6
  • Resonance frequency Hz 62
  • Moving mass g (oz) 32.2 (1.14)
  • Compliance mm/N 0.20
  • Force factor N/A 12.4
  • Mechanical Q factor 4.4
  • Electrical Q factor 0.46
  • Total Q factor 0.42
  • Equivalent air volume l (ft3) 35 (1.24)
  • Voice coil inductance mH 0.50
  • Diaphragm area cm2 (in.2) 353 (54.72)
  • Reference efficiency 1.8%
  • Net weight kg (lb) 2.7 (5.9)
  • Multipack dimensions L x W x H 300 x 300 x 148 (11.8 x 11.8 x 5.8)
  • Multipack weight kg (lb) 3.7 (8)
€ 54,70 Price incl. VAT
