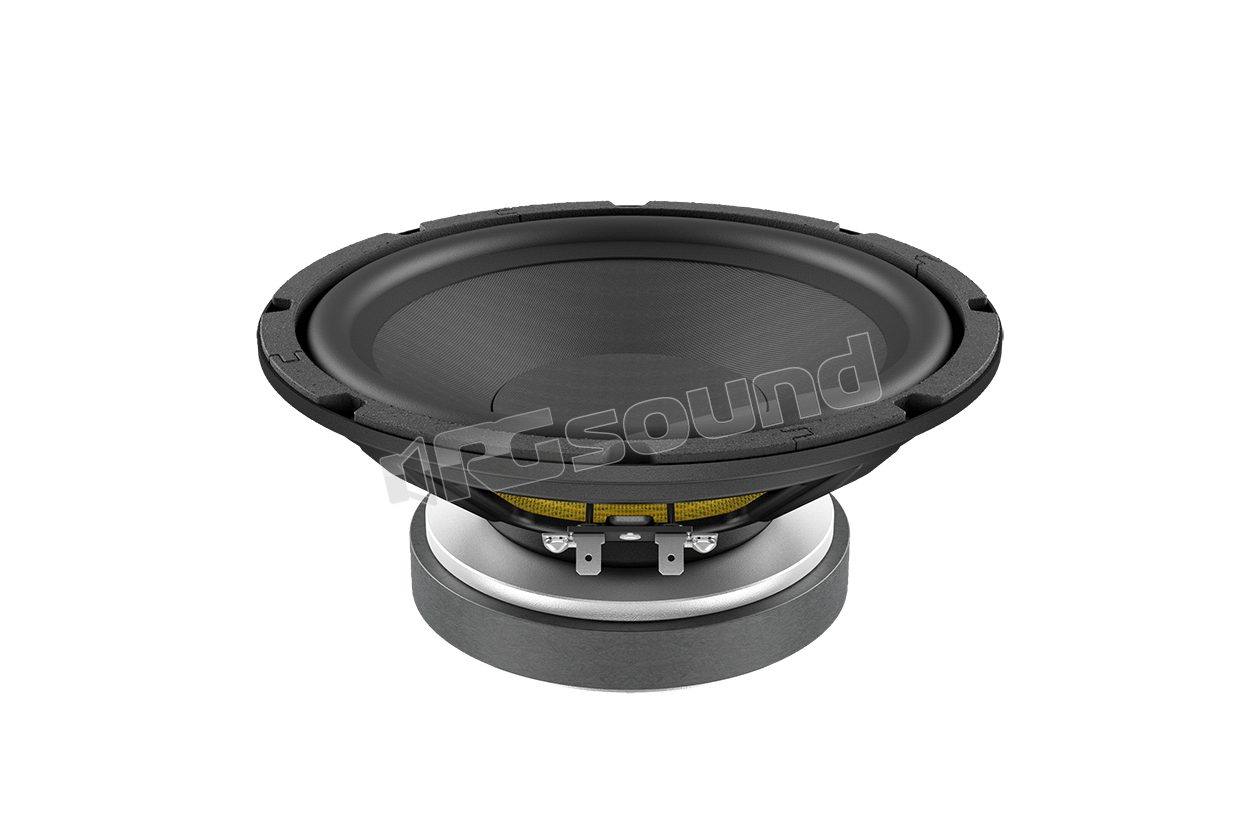

FBASS08-18 8"/200mm Bass Speaker

LaVoce
Your price:
€ 47,70
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to

LaVoce FBASS08-18-8 8"/200mm Bass Speaker

LaVoce code 70R60080

FBASS08-18-8 Features

  • 1.8 inch copper voice coil
  • Sensitivity 93 db/spl
  • Program power handling 300 watts
  • Rubber surround material
  • Overall balanced and rich tone
  • Solid bass and precise midrange-treble

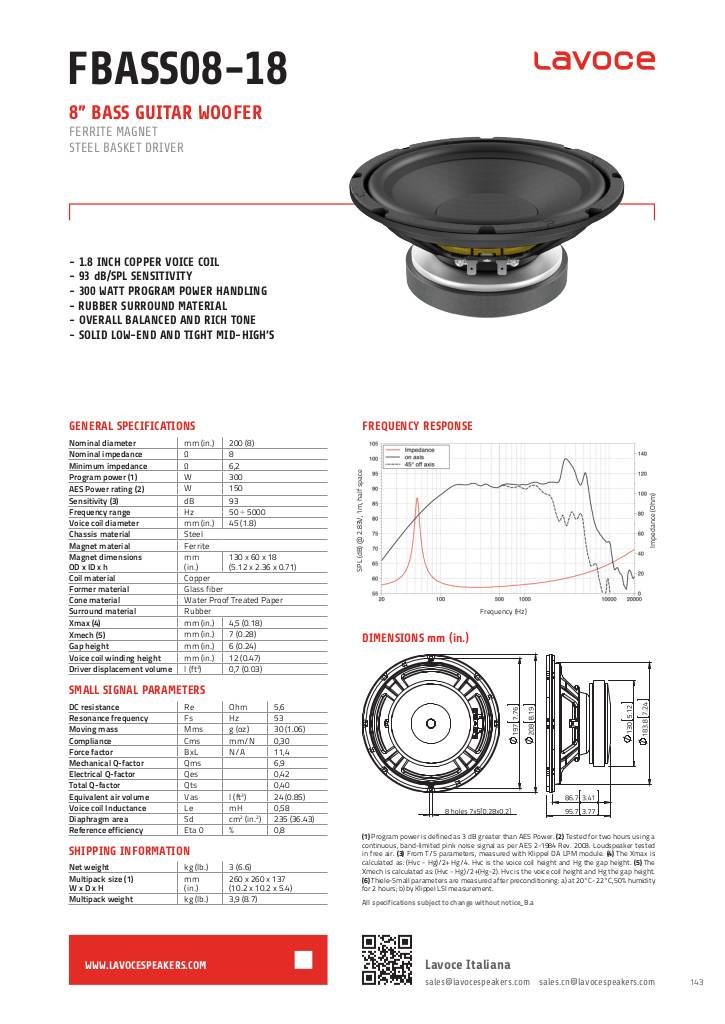

scheda tecnica

1549117130-fbass08-18-8-1.pdf

LaVoce FBASS08-18-8 Technical Specifications

  • Nominal diameter mm (in) 200 (8)
  • Nominal impedance Ohm 8
  • Minimum impedance Ohm 6.2
  • Program power W 300
  • AES power W 150
  • Sensitivity dB 93
  • Frequency range Hz 50 ÷ 5000
  • Voice coil diameter mm (in) 45 (1.8)
  • Frame material Steel
  • Magnet material Ferrite
  • Magnet dimensions OD x ID x h mm (in) 130 x 60 x 18 (5.12 x 2.36 x 0.71)
  • Coil material Copper
  • Structure material Fiberglass
  • Cone material Water-resistant treated paper
  • Surround material Rubber
  • Xmax mm (in) 4.5 (0.18)
  • Xmech mm (in) 7 (0.28)
  • Gap height mm (in) 6 (0.24)
  • Voice coil winding height mm (in) 12 (0.47)
  • Driver displacement volume l (ft³) 0.7 (0.03)
  • DC resistance Ohm 5.6
  • Resonance frequency Hz 53
  • Moving mass g (oz) 30 (1.06)
  • Compliance mm/N 0.30
  • Force factor N/A 11.4
  • Mechanical Q factor 6.9
  • Electrical Q factor 0.42
  • Total Q factor 0.40
  • Equivalent air volume l (ft3) 24 (0.85)
  • Voice coil inductance mH 0.58
  • Diaphragm area cm2 (in.2) 235 (36.43)
  • Reference efficiency 0.8%
  • Net weight kg (lb) 3 (6.6)
  • Multipack dimensions L x W x H 260 x 260 x 137 (10.2 x 10.2 x 5.4)
  • Multipack weight kg (lb) 3.9 (8.7)
€ 47,70 Price incl. VAT
