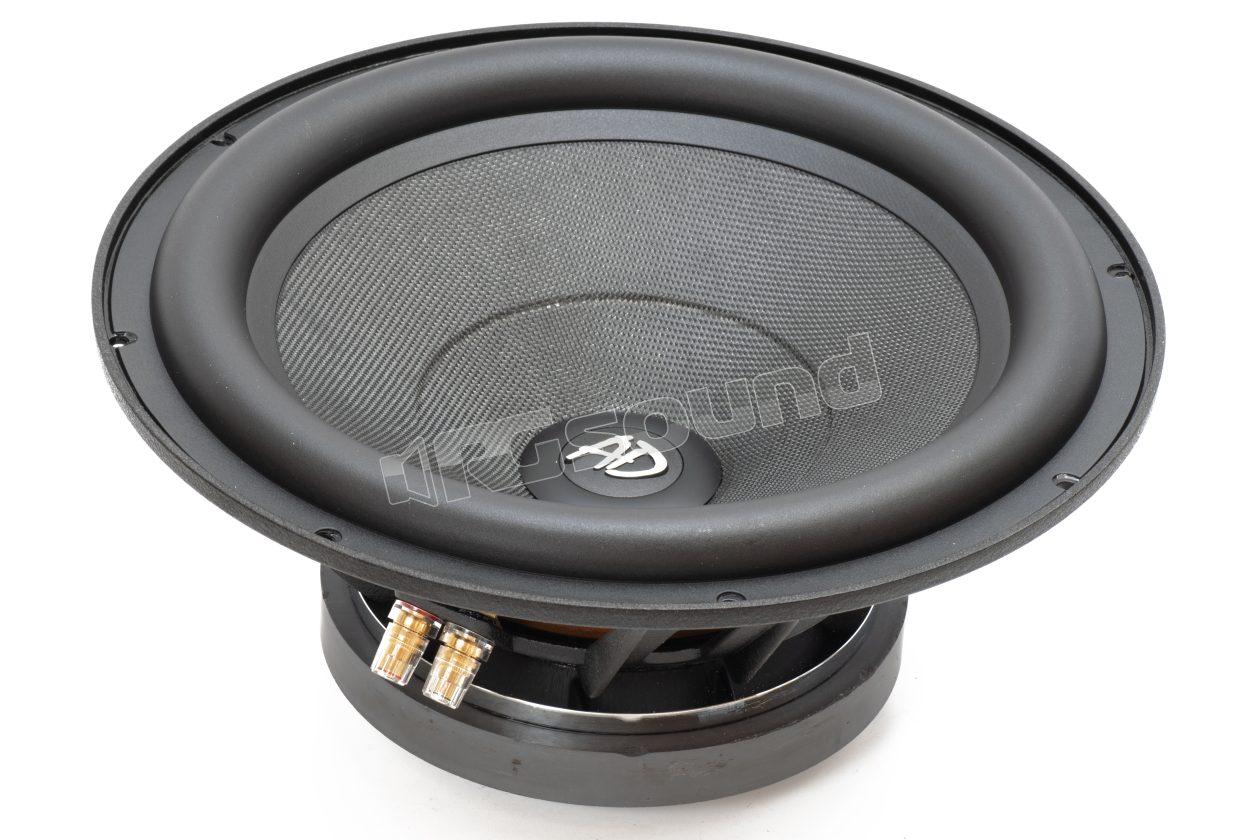

F12 30 cm subwoofer with paper and fiberglass cone

AD Audio Development
Your price:
€ 653,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Subwoofer
Speaker Size
320 mm
MAX Power
600 Watt
Frequency Response
20 - 200 Hertz
Sensitivity
86 dB
Impedance
3,6 (1,8 + 1,8) Ohm
Installation Depth
135 mm
Woofer Material
Paper / Fibreglass

AD Audio Development F12 Subwoofer 30 cm with paper and fiberglass cone

AD Audio Development F12 with paper and fiberglass cone, dual 1.8 Ohm voice coil and configurable in parallel or series. This subwoofer is designed and created to satisfy SPL fans while maintaining high quality, and is suitable for bass-reflex or band-pass alignments. It can also withstand strong accelerations without deforming.

F12 Features

  • Cone: Paper / fiberglass dual-layer, unique processing performed within the company with the objective of minimizing cone flexing and restoring ideal piston movement.
  • Suspension: Thermoformed butyl rubber
  • Spider: Two pieces in conex
  • Voice coil: Dual OFC copper voice coil on fiberglass support (diameter 65mm), forced ventilation through magnet.
  • Basket, Magnet: Aluminum with numerous reinforcing ribs, high saturation ferrite ring.

Why choose AD

All AD Audio Development products are handcrafted in Italy. Every component is hand-built by industry experts, using highest quality materials and advanced technologies to guarantee exceptional sound performance and reliability over time.

The brand's philosophy is based on production that allows for rigorous quality control and constructive care that is rarely found in industrial products. AD components can be compared, for performance and construction, to higher-end models, often sold at significantly higher prices.

Choosing AD Audio Development means purchasing a handcrafted hi-fi product, 100% made in Italy, with an unbeatable value-for-money ratio for those seeking maximum performance without compromises.

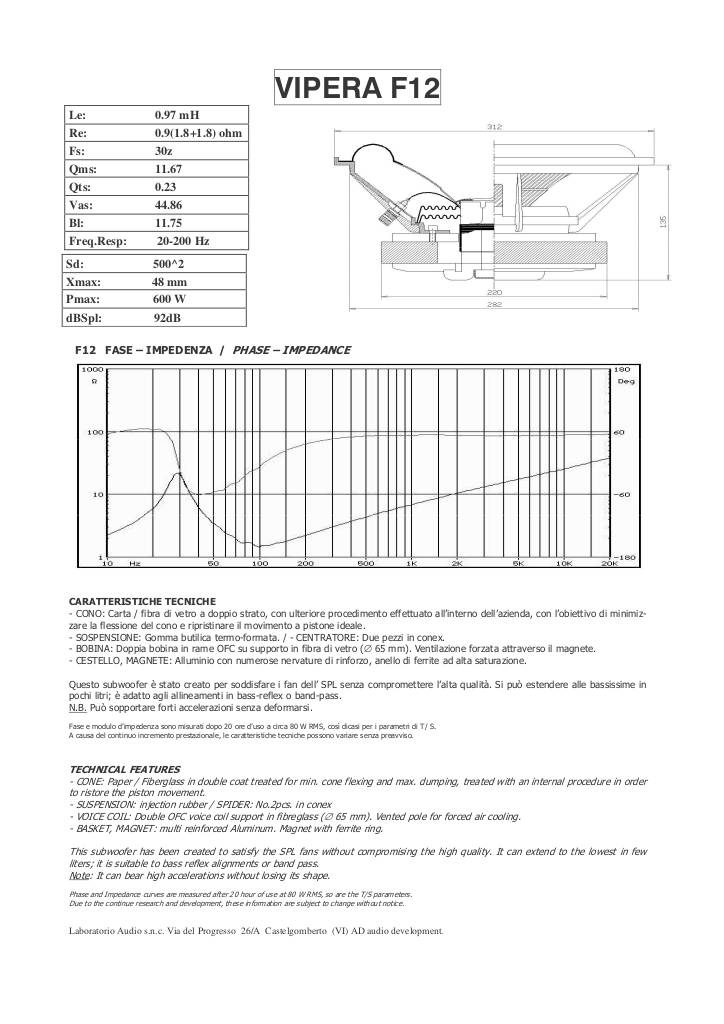

Scheda tecnica

20160112101636-f12.pdf

AD Audio Development Technical Specifications

  • Speaker size 320 mm
  • Maximum power 600 Watt
  • RMS power Watt
  • Frequency response 20 - 200 Hertz
  • Sensitivity 86 dB
  • Impedance 3.6 (1.8 + 1.8) Ohm
  • Installation depth 135 mm
  • Woofer Material paper / fiberglass
€ 653,00 Price incl. VAT
