F 62C

Helix

Discontinued

Your price:
€ 149,00
Price per single item (VAT included)

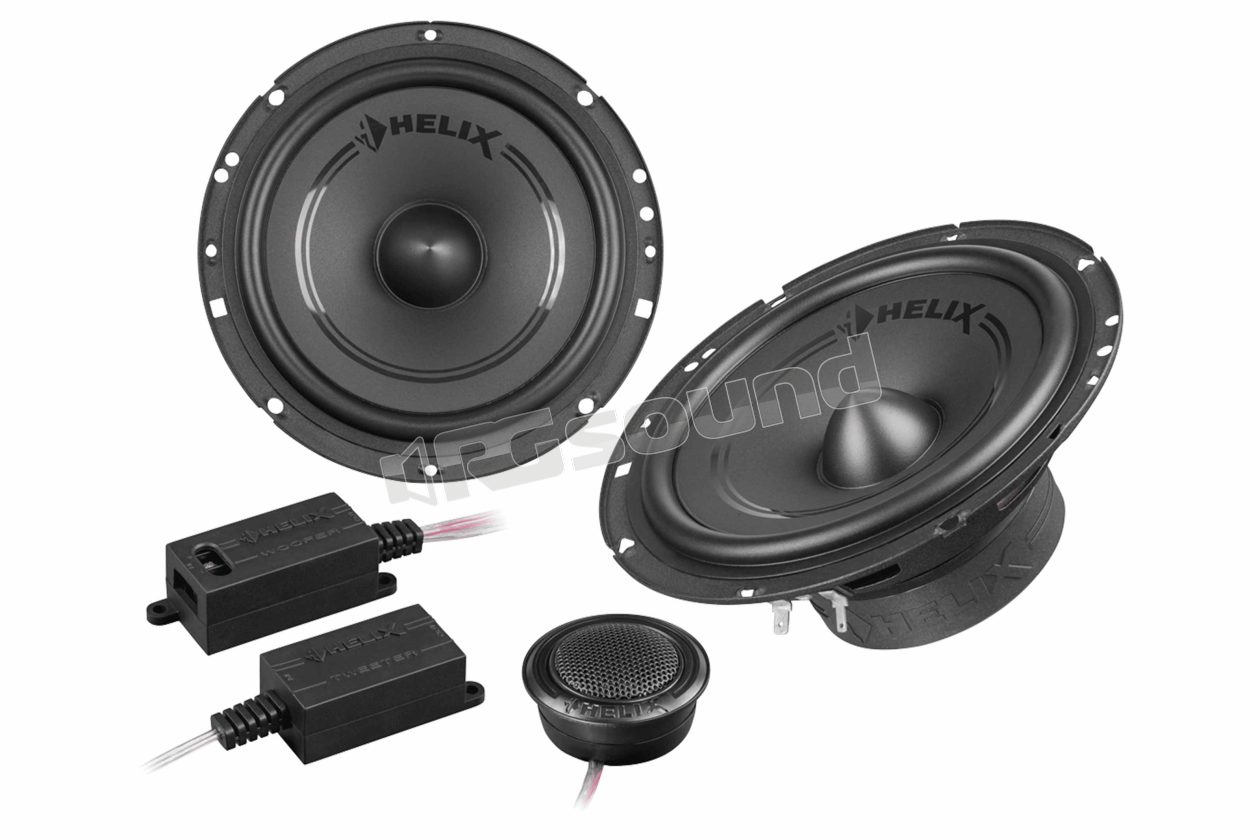

Helix F 62C two-way speaker kit 16.5 cm (6.5")

Immerse yourself in the world of HELIX sound with the new F series of speakers. The combination of proven components and cutting-edge materials guarantees an extraordinary listening experience with rich bass, accurate midrange and detailed highs.

During development, particular attention was paid to easy integration into the vehicle. In addition to the low installation depth, the innovative two-part "Flex-Crossover" offers in particular much more freedom in terms of connectivity and installation. Therefore, the F speakers are the first choice especially if the tweeters and woofers are installed separately in the door and front pillar.

The elegant design underlines the qualities at first glance. Therefore, the bass of this series is presented in an elegant design with matte black HELIX cone finish and glossy black HELIX logo.

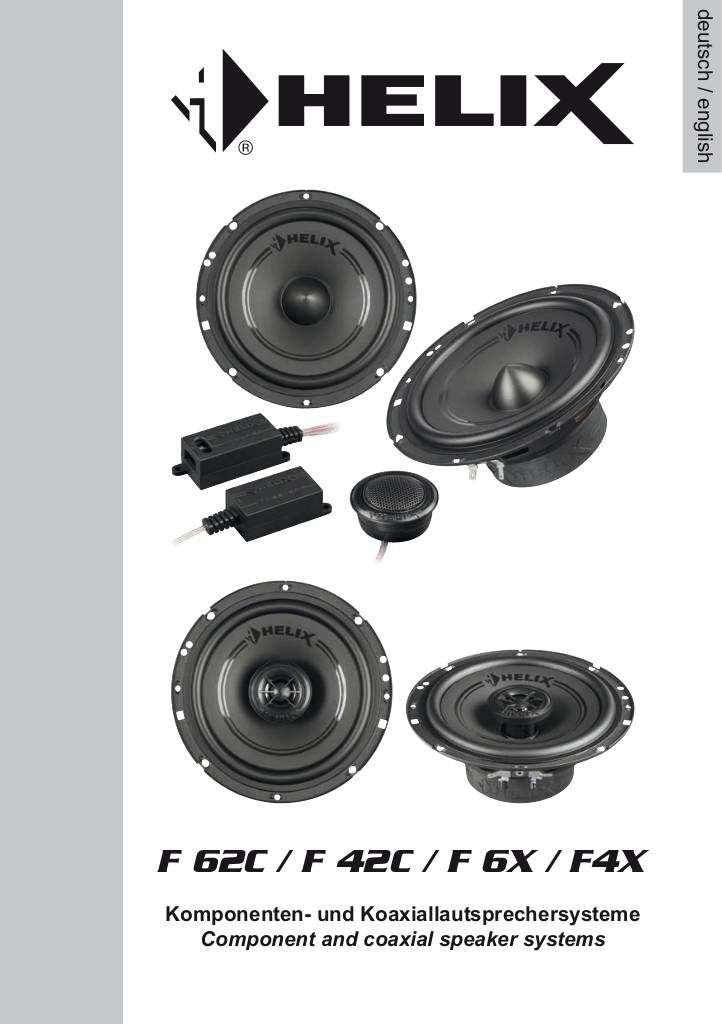

Manuale utente

n-20190507143554-ba-f-series-speaker.pdf

Helix F 62C technical specifications

RMS Power 60 W

Maximum Power 120 W

Frequency Response 55 Hz - 22,000 Hz

Impedance 3 Ohm

Efficiency 1 W / 1 m 91 dB

Component Materials:

Tweeter with silk dome

Woofer with polypropylene cone injected with carbon fiber

Crossover 12/12 dB

Dimensions

Tweeter outer diameter 52.6 mm (2.07")

Woofer diameter 165 mm (6.50")

Tweeter installation hole diameter 45 mm (1.77")

Woofer installation hole diameter 142 mm (5.59")

Tweeter installation depth 17.3 mm (0.68")

Woofer installation depth 61 mm / 2.40"

Tweeter crossover dimensions: 51.5 x 27.5 x 20.5 mm / 2.03 x 1.08 x 0.81"

Woofer crossover dimensions: 57 x 27.5 x 23.5 mm / 2.24 x 1.08 x 0.93"

Discontinued
