F 5X Coaxial speakers with 130 mm woofer with polypropylene cone and Mylar tweeter

Helix

Discontinued

Your price:
€ 74,00
Price per pair (VAT included)
Type
Coaxial
Speaker Size
130 mm
Coaxial Type
2-way
Frequency Response
70 - 22.000 Hertz
MAX Power
100 Watt
RMS Power
50 Watt
Sensitivity
90 dB
Impedance
3 Ohm
Woofer Material
Polipropilene
Tweeter Material
Mylar

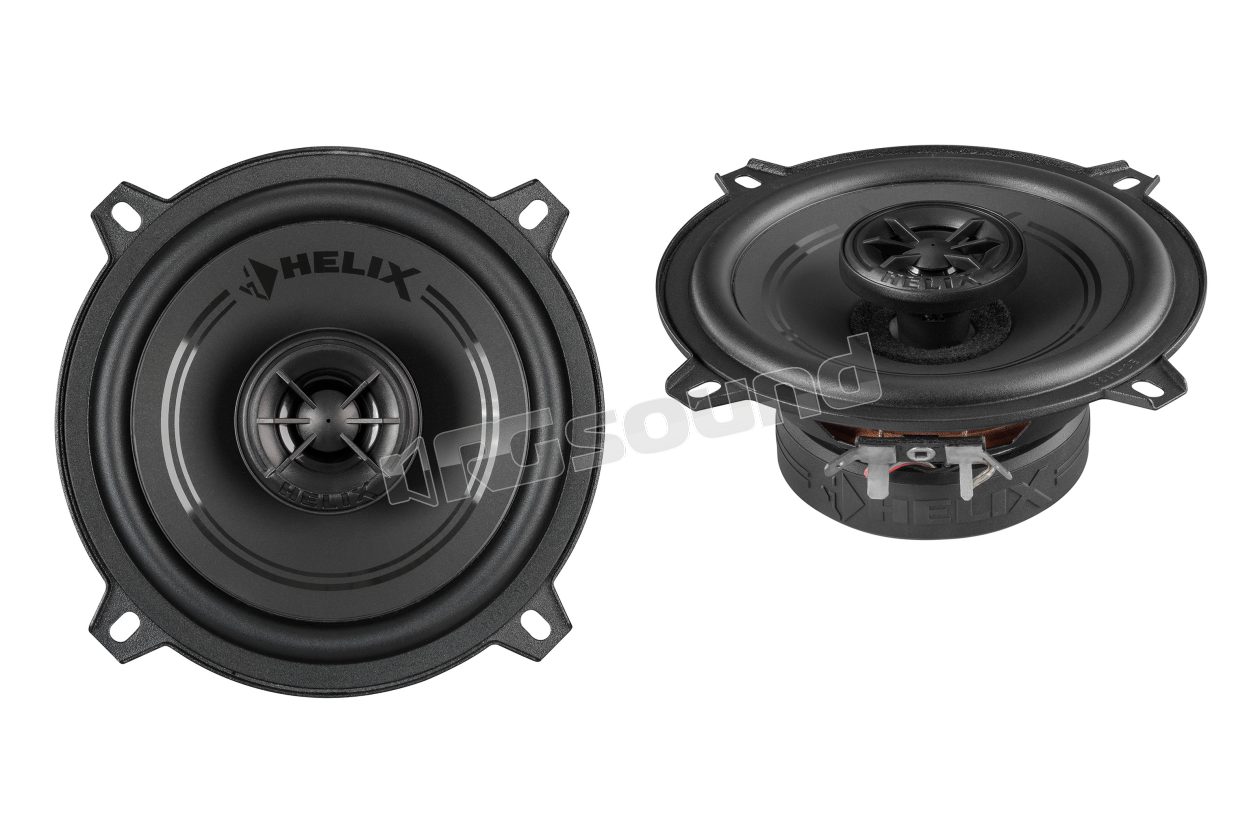

Helix F 5X Coaxial speakers with 130 mm woofer cone in polypropylene injected with carbon fibers, 13mm Mylar tweeter

Immerse yourself in the world of HELIX sound with the new F series of speakers. The combination of proven components and cutting-edge materials ensures an exceptional sound experience with rich bass, precise midrange and detailed highs. During development, particular attention was paid to easy integration in the vehicle thanks to the reduced installation depth. The elegant design highlights its qualities at first glance.

Features F 5X

  • Elegant and sophisticated HELIX design with matte black cone finish and glossy black HELIX logo
  • 5.25"/130 mm woofer with new low-resonance cone in polypropylene injected with incorporated carbon fibers
  • 0.52"/13 mm mylar tweeter with neodymium magnet for sharp and crisp high response
  • Individual HELIX basket with additional ventilation holes for better voice coil cooling and high power handling
  • Solid rubber magnet protection ring with HELIX logo
  • Integrated crossover with 6 dB slope

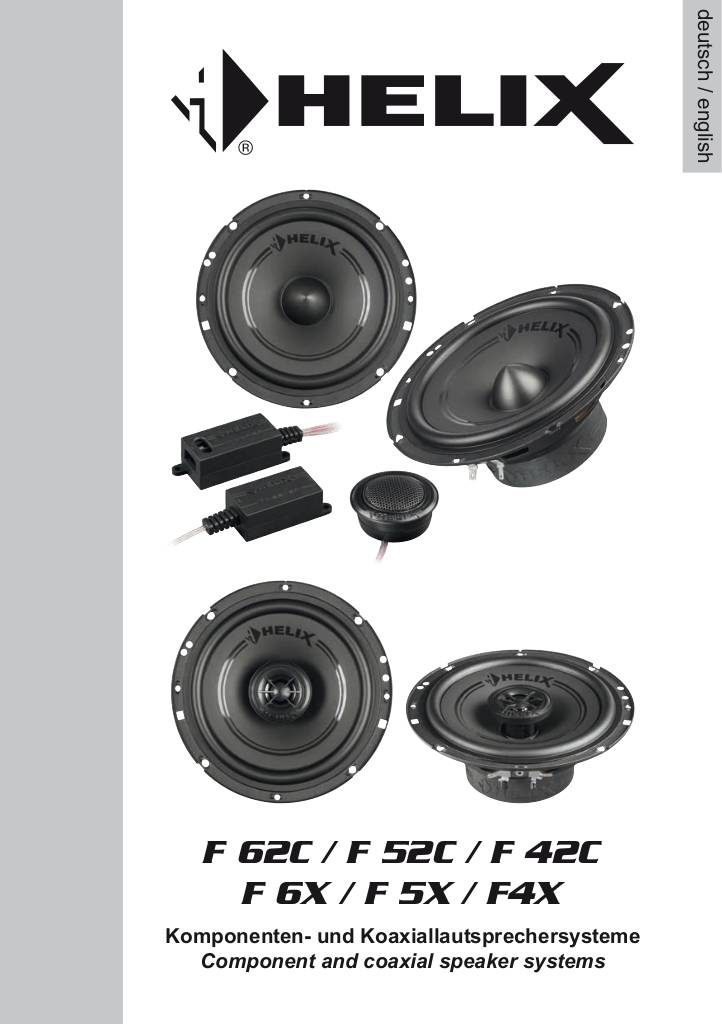

Manuale utente

n-20221118122447-ba-f-series-speaker-2020-web.pdf

Helix F 5X Technical specifications

  • RMS / max. Power 50/100 Watt
  • Frequency response 70 Hz - 22,000 Hz
  • Impedance 3Ω
  • Sensitivity 1 W/1 m 90 dB
  • Cone material
    • Tweeter: Mylar
    • Woofer: Polypropylene injected with incorporated carbon fibers
  • Integrated crossover, 6 dB slope
  • External diameter 129 mm / 5.08"
  • Installation diameter 112 mm / 4.41"
  • Installation depth 50 mm / 1.97"
Discontinued
