F 52C 13 cm 2-way speaker system F Series

Helix

Discontinued

Your price:
€ 140,00
Price per single item (VAT included)
Type
2-way separate kit
Frequency Response
65 - 22.000 Hertz
Woofer Size
130 mm
Tweeter Size
20 millimetri
MAX Power
100 Watt
RMS Power
50 Watt
Sensitivity
90 dB
Impedance
3 Ohm
Woofer Material
Polipropilene
Tweeter Material
Cupola in seta

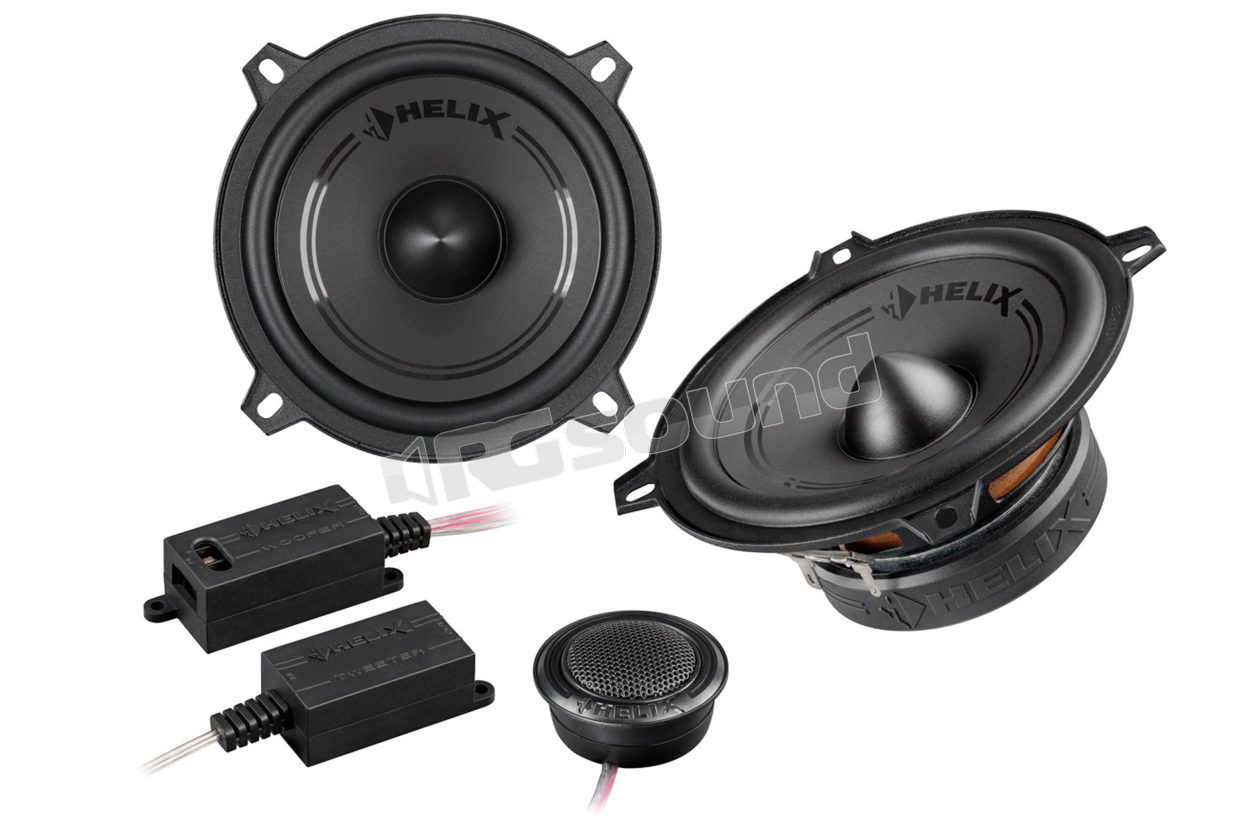

Helix F 52C 2-way speaker system with 13cm woofer, tweeter and crossover

Immerse yourself in the world of HELIX sound with the new F series of speakers. The combination of proven components and cutting-edge materials guarantees an exceptional sound experience with rich bass, precise midrange and detailed highs. During development, particular attention was paid to easy integration into the vehicle.

In addition to the reduced installation depth, the innovative "Flex-Crossover" in particular offers much more freedom in terms of connectivity and installation. Therefore, the F speakers are the first choice especially if the tweeters and woofers are installed separately in the door and front pillar. The elegant design emphasizes the qualities at first sight.

Features F 52C

  • Elegant HELIX design with matte black cone finish and glossy black HELIX logo
  • 5.25"/130 mm woofer with new low resonance polypropylene cone with embedded carbon fibers
  • 0.75"/20 mm silk dome tweeter with neodymium magnet for sharp and clear treble response
  • Individual HELIX basket with additional ventilation holes for better voice coil cooling and high power handling
  • Solid rubber magnet protection ring with HELIX logo
  • "Flex-Crossover" separate in two parts with 12/12 dB slope and integrated tweeter protection for versatile connection options - suitable for installation in vehicles with separate mounting positions of tweeter and woofer

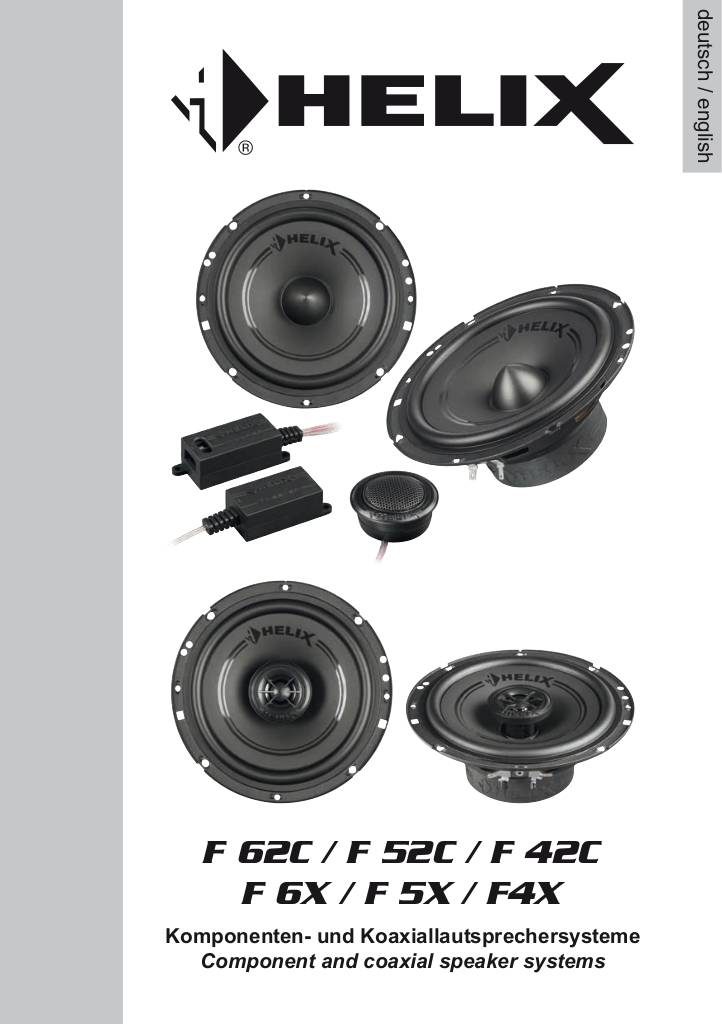

Manuale utente

n-20221117145929-ba-f-series-speaker-2020-web.pdf

Helix F 52C Technical specifications

  • RMS / max. power 50/100 Watt
  • Frequency response 65 Hz - 22,000 Hz
  • Impedance 3Ω
  • Sensitivity 1 W/1 m 90 dB
  • Crossover Separate, 12/12 dB slope and tweeter protection

Cone material

  • Tweeter: silk dome
  • Woofer: Polypropylene injected with embedded carbon fibers

Outer diameter

  • Tweeter: 52.6 mm / 2.07"
  • Woofer: 129 mm / 5.08"

Installation diameter

  • Tweeter: 45 mm / 1.77"
  • Woofer: 112 mm / 4.41"

Installation depth

  • Tweeter: 17.3 mm / 0.68"
  • Woofer: 52 mm / 2.05"

Crossover dimensions

  • Tweeter: 51.5 x 27.5 x 20.5 mm / 2.03 x 1.08 x 0.81"
  • Woofer: 57 x 27.5 x 23.5 mm / 2.24 x 1.08 x 0.93"
