F 4X

Helix

Discontinued

Your price:
€ 65,00
Price per pair (VAT included)
Type
Coaxial
Speaker Size
100 mm
Coaxial Type
2-way
Frequency Response
100 - 22.000 Hertz
MAX Power
80 Watt
RMS Power
40 Watt
Sensitivity
89 dB
Impedance
3 Ohm
Woofer Material
Polipropilene e fibra di carbonio
Tweeter Material
Mylar

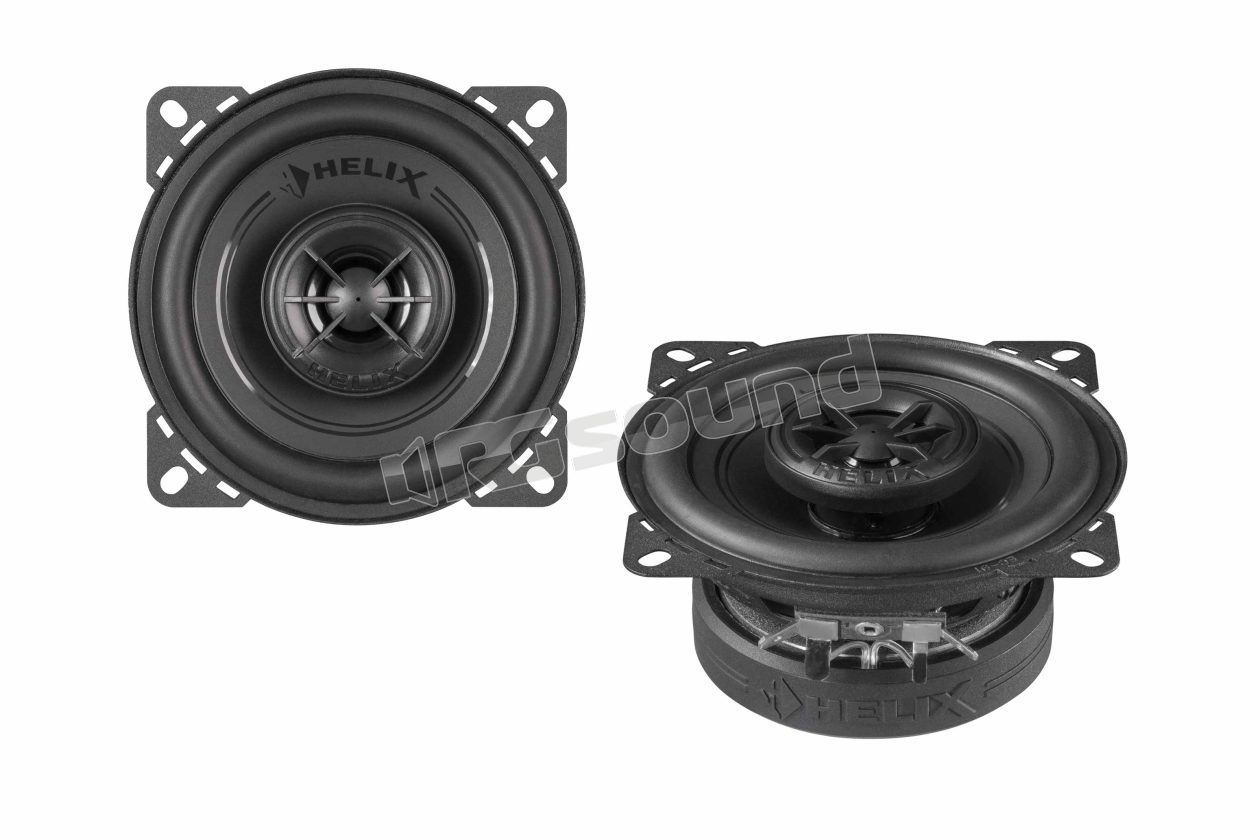

Helix F 4X pair of 10 cm coaxial speakers

Elegant and refined HELIX design with matte black cone finish and glossy black HELIX logo.

4" / 100 mm woofer with new low-resonance cone in polypropylene injected with embedded carbon fibers.

0.52" / 13 mm mylar tweeter with neodymium magnet for clear and sharp treble response.

Individual HELIX basket with additional ventilation holes for better coil cooling and high power handling.

Full rubber magnet protection ring with HELIX logo.

Integrated crossover with 6 dB slope.

Helix F 4X technical features

RMS Power 40 Watt
Maximum Power 80 Watt
Frequency Response 100 Hz - 22,000 Hz
Impedance 3 Ω
Efficiency 1 W / 1 m 89 dB
Integrated crossover, 6 dB slope

Cone Material
TW: Mylar
W: polypropylene injected with embedded carbon fibers

External Diameter 102.4 mm / 4.03"
Installation Diameter 93 mm / 3.66"
Installation Depth 43 mm / 1.70"

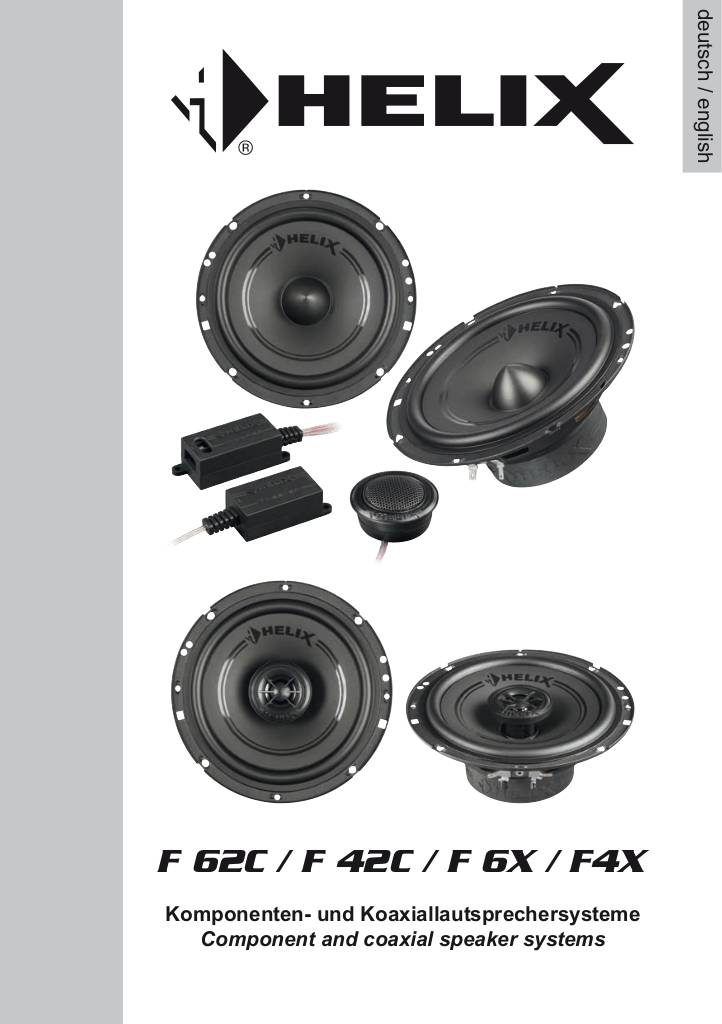

Manuale utente

n-20191107152808-ba-f-series-speaker.pdf
