F 15 38cm sub for SPL

ETON

Discontinued

Your price:
€ 599,00
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
380 mm
MAX Power
2.000 Watt
RMS Power
1.000 Watt
Sensitivity
88 dB
Impedance
1 + 1 Ohm
Weight
22,7 Kg
Installation Depth
233 mm

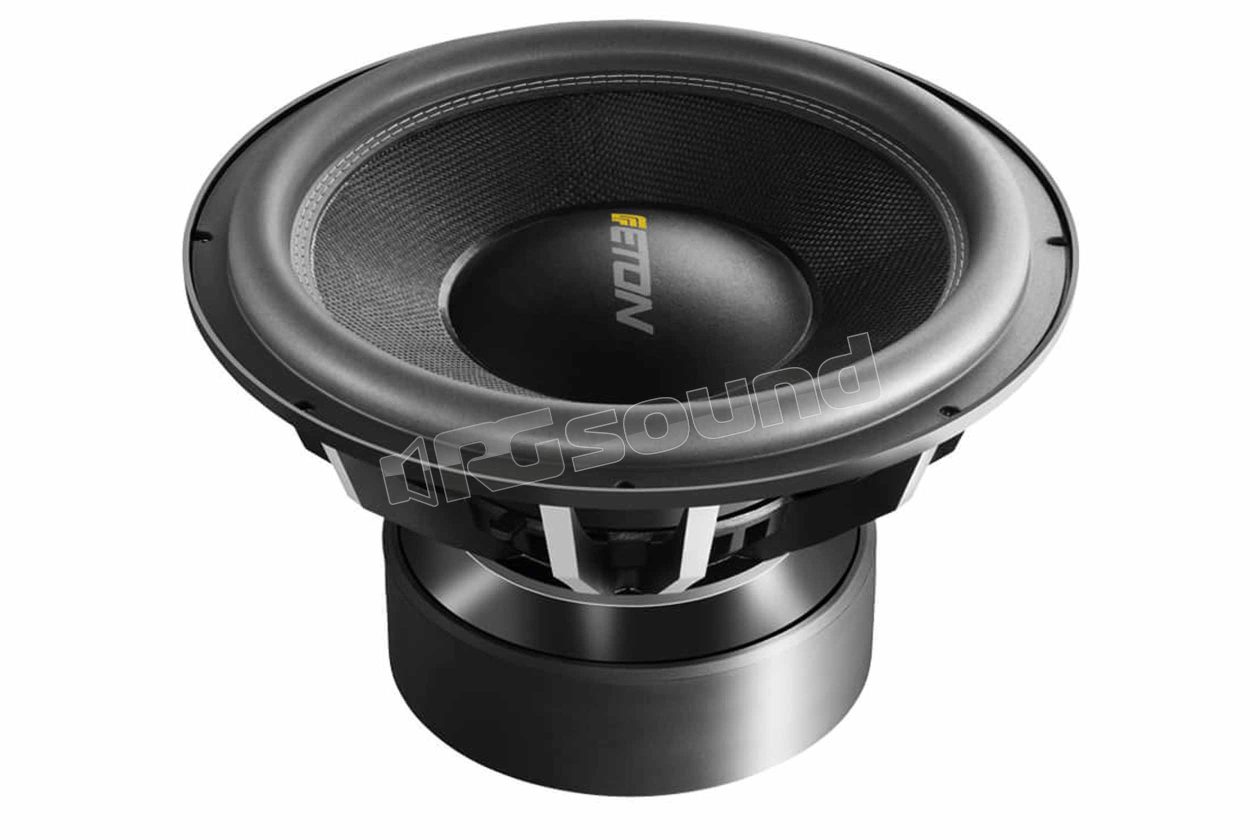

ETON F 15 38cm SPL subwoofer with dual 1 Ohm voice coil and aluminum support, 2000 W RMS power

Power and quality

F 15 new SPL subwoofer among the most powerful ever produced by ETON with imposing modern design featuring its heavy and robust structure, large magnet and cone membrane made with interlaced fibers. Powerful bass combined with high sound quality: this is the objective with which this sub was built.

Technical specificationsETON F 15

Power Rating RMS: 2000W
Nominal Impedance: 2 x 1 Ohm
Basket diameter: 39.0 cm
Mounting Diameter: 35.2 cm
Depth: 23.3 cm
Magnet diameter: 21.5 cm
DC resistance: 1.46 Ohm Rdc
Coil inductance Le: 1.48 mH
Voice coil diameter: 76 mm
Membrane area: 829.0 cm2
Resonance frequency: f 58.5 Hz
Mechanical properties: QMS 10.06
Electrical Q: Qes 0.60
Total Qts: 0.57
Equivalent volume Vas: 20.3 l
Moving mass Mms: 353.2 g
Rms: 14.02 kg / s
Cms: 0.02 mm / N
B xl 17.05 Tm
SPL 1W / 1m: 88 dB
Power Recommendation:> 1000 W
Test Case: BR 80 l
Reflex channel (dxl): (10 x 25 cm) x 2

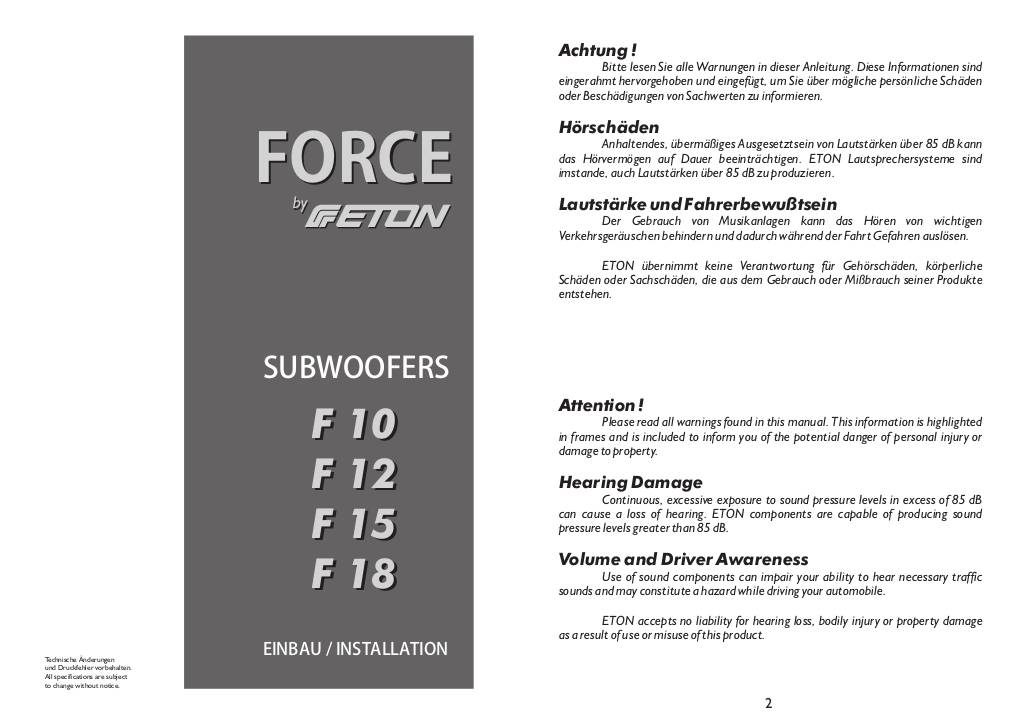

Scheda tecnica

n-20170210173917-bedanltg-forcewoofer-spl-serie-20110210-04.pdf
