F 12 32cm sub for SPL

ETON

Discontinued

Your price:
€ 449,00
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
320 mm
RMS Power
2.000 Watt
Sensitivity
87.4 dB
Impedance
1 + 1 Ohm
Weight
21,9 Kg
Installation Depth
208 mm

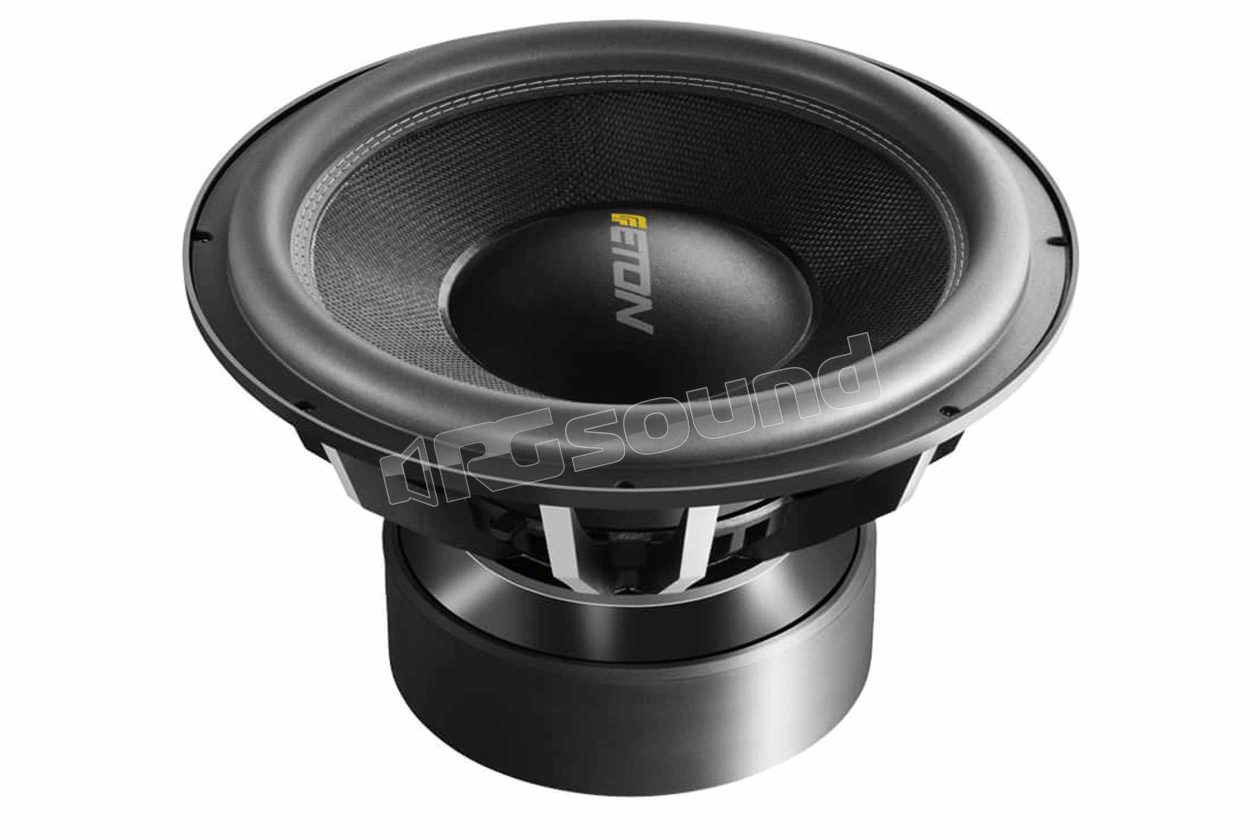

ETON F 12 32cm SPL sub with dual 1 ohm voice coil and aluminum support, 2000 W RMS power

Power and quality

F 12 new SPL subwoofer among the most powerful made by ETON and with imposing modern design with its heavy and robust structure, large magnet and cone membrane made with interwoven fibers. Powerful bass combined with high quality sound: this is the objective with which this sub is made.

Technical specificationsETON F 12

Rated power (RMS power): 2000W
Impedance: 0.5 ohms
DC resistance: 0.5 ohms
resonance frequency: 39 Hz
compliance of the suspension: 0.75 mm / N
Mechanical quality (QMS): 7.1
Electrical Q (Qes): 0.49
overall quality (Qts): 0.45
Ges.bewegte mass (einschl.bew.Luftmasse): 222 g
Effective radiating surface: 531 cm2
voice coil diameter: 75 mm
winding width: 54 mm
number of layers: 8
voice coil inductance: 0 , 6 mH
power factor: 5.9 Tm
Polplattenhöhe: 27 mm
magnetic ring diameter: 220 mm
magnetic ring height: 20 mm
speaker weight: 22 kg
Mean sound-pressure level 1W / 1m: 87.5 dB / SPL
equivalent volume: 30 dm3

Scheda tecnica

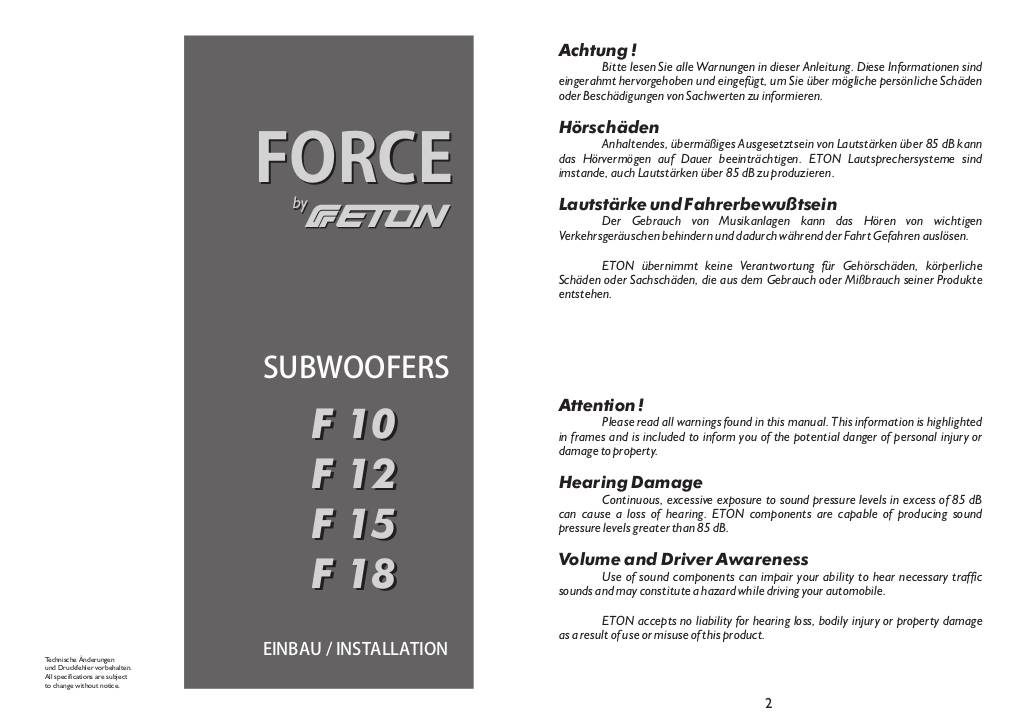

n-20170210172510-bedanltg-forcewoofer-spl-serie-20110210-04.pdf
