EXL-XX15.2DHE 15” High-Excursion Subwoofer 2000 Watts RMS DVC 2-Ohm

DS18
Your price:
€ 505,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
150 mm
MAX Power
4000 Watt
RMS Power
2000 Watt
Frequency Response
20 - 1.5 KHz Hertz
Sensitivity
88 dB
Impedance
2+2 Ohm

DS18 EXL-XX15.2DHE 15" High Excursion Subwoofer 2000 Watts Rms DVC 2-Ohm

The EXL-XX15.2DHE is equipped with a three-inch black aluminum voice coil, a testament to its exceptional power handling capabilities and efficiency. With a rated power of 2000W RMS and a maximum power of 4000W, this subwoofer has power that reverberates throughout the entire vehicle.The EXL-XX15.2DHE harnesses the power of a ferrite magnet that weighs a full 8 Kg.

Its immense power effortlessly controls cone movement, enabling accurate audio reproduction even at extreme volumes. The cone, made of high-quality paper, ensures accurate sound reproduction, while the foam surround ensures optimal flexibility and durability.

Enclosed in an elegant black aluminum basket, this subwoofer exudes style and sophistication.What sets the EXL-XX15.2DHE apart is its exceptional high excursion surround.Combined with a high resonance frequency (FS) of 34.9 Hz, the EXL-XX15.2DHE seamlessly delves into the subsonic range without missing a beat, provided the enclosure is tuned accordingly. This version of the EXL-XX boasts a nominal diameter of 15" (381 mm) and a nominal impedance of 2+2 OHMS to amplify the performance and capabilities of this high-power subwoofer.

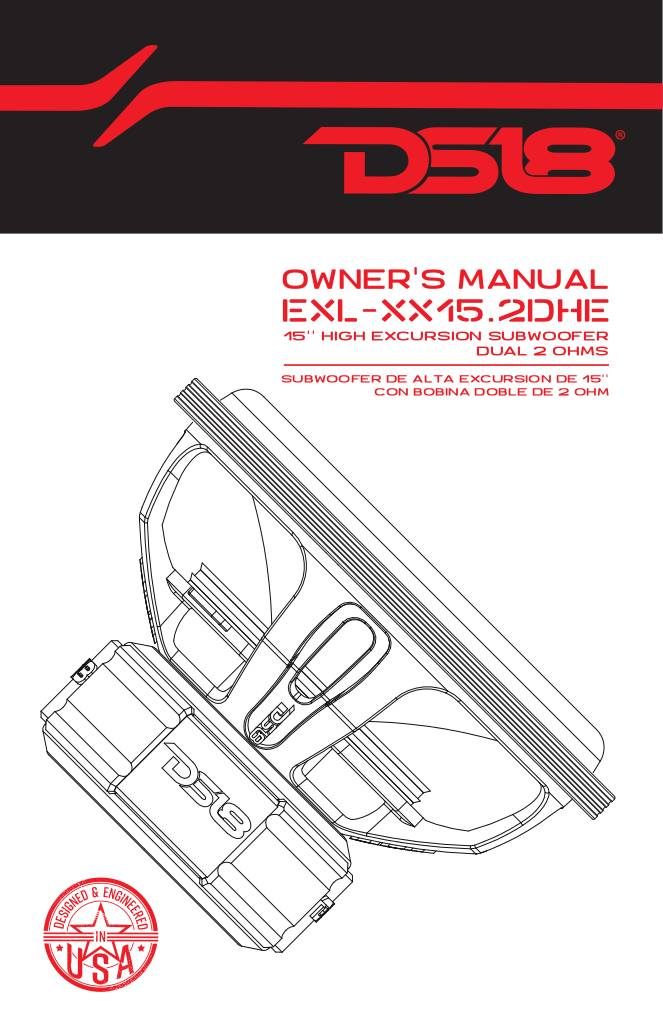

Scheda Tecnica

n-20241017101404-exl-xx15-2dhe-scheda-tecnica.pdf

DS18 EXL-XX15.2DHE Technical Specifications

  • Nominal diameter 15
  • Nominal impedance 2+2 ohm
  • RMS power handling 2000W
  • Maximum power handling 4000W
  • Sensitivity (1w/1m) 88dB
  • Frequency response 20-1.5K Hz
  • Recommended high-pass crossover 80 Hz
  • Voice coil diameter 3" / 75.6 mm
  • Voice coil material Black aluminum
  • Winding material CCAW
  • Cone material Paper
  • Dust cap material Fiberglass
  • Surround material Foam
  • Basket material Aluminum
  • Basket color/finish Black
  • Magnet material Ferrite
  • Magnet weight 306 OZ
  • Displacement volume 3.62L
  • Overall diameter 15.59"
  • Overall depth 10.24"
  • Baffle cutout for front mounting 13.98" / 355 mm
  • Mounting depth 8.86" / 225 mm
  • Motor diameter 8.86" / 225 mmGross weight of single unit (lb)
  • Gross weight of single unit (lb) 56.5Dimensions L x W x H (inches)
  • Dimensions L x W x H (inches) 18 x 18 x 13.5Quantity of units in master carton
  • Quantity of units in master carton 1
  • Gross weight of master carton (lb) 56.5M/C Dimensions L x W x H (inches)
  • M/C Dimensions L x W x H (inches) 18 x 18 x 13.5
