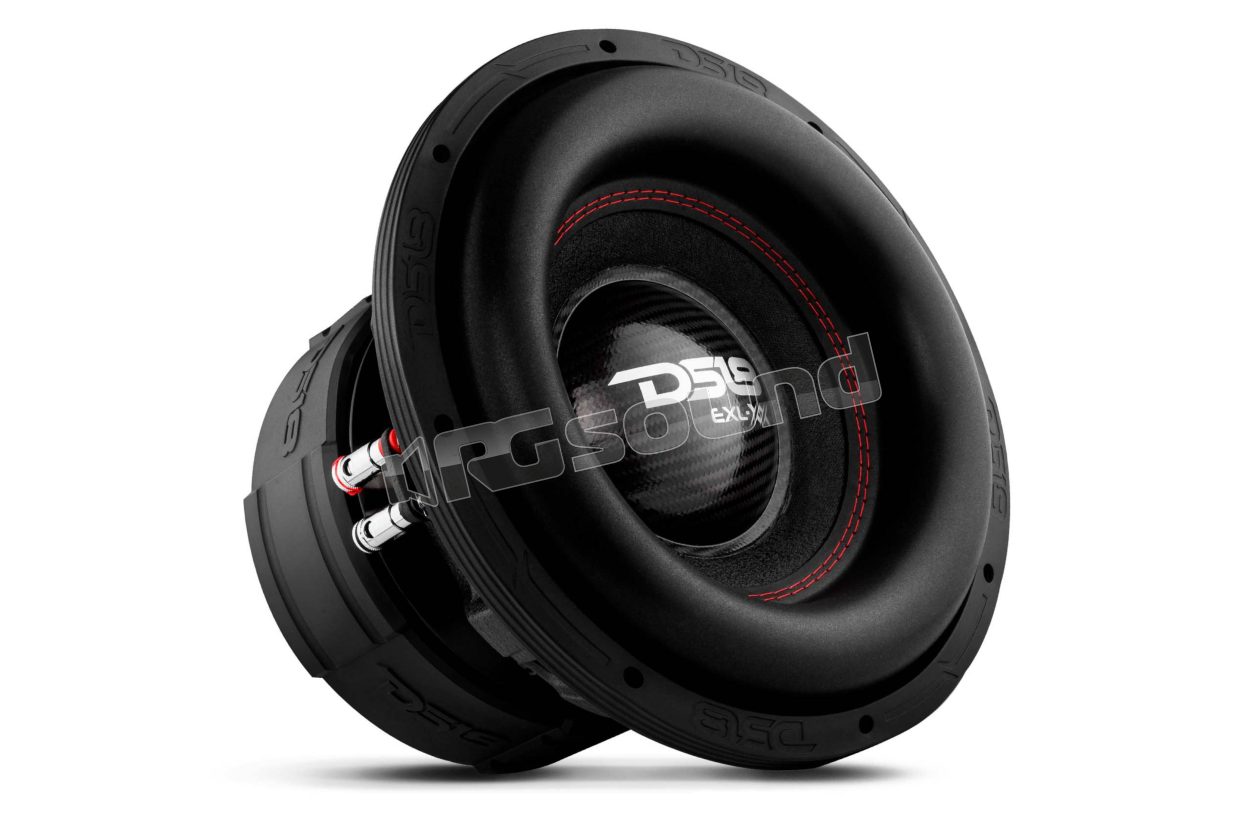

EXL-XX12.2DHE 12” High-Excursion Subwoofer 2000 Watt Rms DVC 2-Ohm

DS18
Your price:
€ 457,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
Other sizes
MAX Power
4000 Watt
RMS Power
2000 Watt
Frequency Response
20 - 1.3 KHz Hertz
Sensitivity
87 dB
Impedance
2+2 Ohm

DS18 EXL-XX12.2DHE 12" High Excursion Subwoofer 2000 Watt Rms DVC 2-Ohm

The EXL-XX12.2DHE is equipped with a three-inch black aluminum voice coil, a testament to its exceptional power handling capabilities and efficiency. With a rated power of 2000W RMS and a maximum power of 4000W, this subwoofer has a power that resonates throughout the vehicle.


The EXL-XX12.2DHE harnesses the force of a ferrite magnet weighing no less than 8 Kg. Its power effortlessly controls the movement of the cone, allowing for accurate audio reproduction even at extreme volumes. The cone, made of high-quality paper, ensures accurate reproduction, while the foam surround ensures optimal flexibility and durability.

Enclosed in an elegant black aluminum basket, this subwoofer exudes style and refinement. What sets the EXL-XX12.2DHE apart is its exceptional high excursion surround. Paired with a high resonance frequency (FS) of 39 Hz, the EXL-XX12.2DHE ventures seamlessly into the subsonic range without missing a beat, provided the enclosure is adjusted accordingly. This version of the EXL-XX boasts a nominal diameter of 12" (304.8 mm) and a nominal impedance of 2+2 OHMS to amplify the performance and capabilities of this high-power subwoofer.

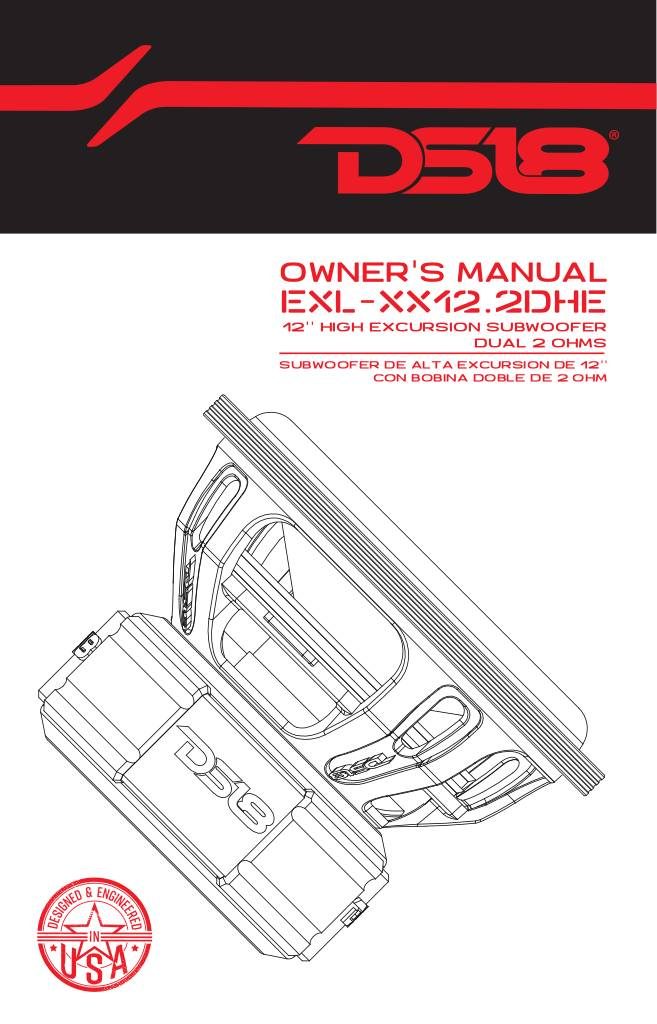

Scheda Tecnica

n-20241017101038-exl-xx12-2dhe-scheda-tecnica.pdf

DS18 EXL-XX12.2DHE Technical Specifications

  • Nominal diameter 12"
  • Nominal impedance 2+2 ohm
  • RMS power handled 2000W
  • Maximum power handleable 4000W
  • Sensitivity (1w/1m) 87dB
  • Frequency response 20-1.3K Hz
  • Recommended high-pass crossover 80 Hz
  • Voice coil diameter 3" / 75.6 mm
  • Voice coil material Black aluminum
  • Winding material CCAW
  • Cone material Paper
  • Dust cap material Fiberglass
  • Surround material Foam
  • Basket material Aluminum
  • Basket color/finish Black
  • Magnet material Ferrite
  • Magnet weight 306 OZ
  • Displacement volume 3.26L
  • Overall diameter 12.63" / 321 mm
  • Overall depth 9.25" / 235 mm
  • Deflector cutout for front mounting 11.1" / 282 mm
  • Mounting depth 7.87" / 200 mm
  • Motor diameter 8.89
  • Net weight of single unit (lb) 53.5
  • Dimensions L x W x H (inches) 15 x 15 x 12.5
  • Quantity of units in main carton 1
  • Net weight of main carton (lb) 53.5
  • M/C Dimensions L x W x H (inches) 15 x 15 x 12.5
€ 457,00 Price incl. VAT
