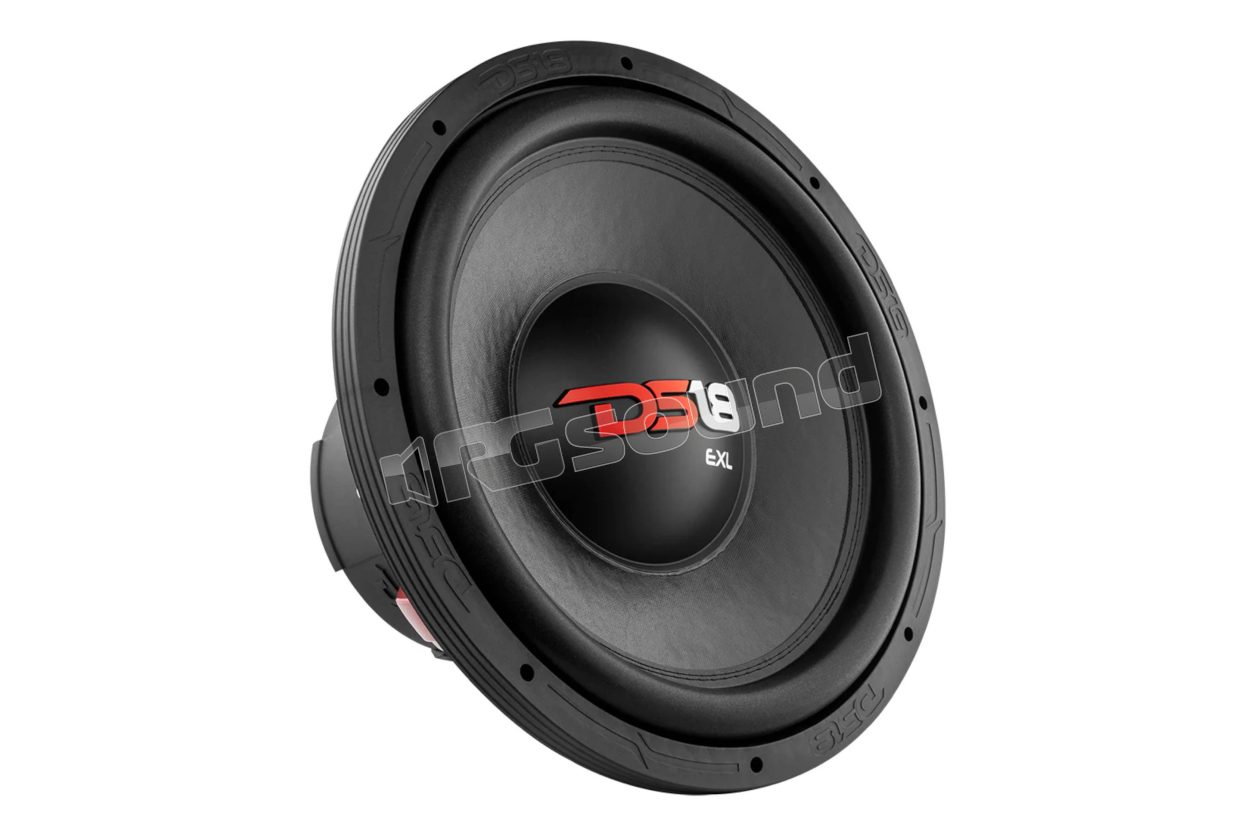

EXL-X15.2D 15" Subwoofer 1250 Watts RMS DVC 2-Ohms

DS18

Coming soon

Your price:
€ 385,00
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
150 mm
MAX Power
2500 Watt
RMS Power
1250 Watt
Frequency Response
25 Hz - 1.5 KHz Hertz
Sensitivity
92 dB
Impedance
2 + 2 Ohm

DS18 EXL-X15.2D 15" Subwoofer 1250 Watts Rms DVC 2-Ohms

The DS18 EXL-X15.2D 15" Subwoofer is designed to deliver high-level audio performance, with a power handling capacity that reaches 2500 watts maximum. Equipped with a dual 2 ohm voice coil (DVC).

The red aluminum frame contributes to the overall robustness of the subwoofer, ensuring long-lasting durability even under intensive use conditions. The dust cover made of fiberglass serves a dual function: it protects internal components from potential damage and contributes to the improvement of sound quality.

Thanks to the large ferrite magnet, the EXL-X15.2D is capable of delivering powerful and accurate bass reproduction, while the high-strength foam surround supports a pressed fiberglass cone that ensures precise and defined sound. The vent designed by DS18 further optimizes bass output, making this subwoofer an excellent choice for those seeking superior sound performance.

The 2.57 inch voice coils allow the DS18 EXL-X15.2D to easily handle a wide range of frequencies, from 25 Hz to 1.5 kHz, maintaining high levels of sound accuracy even at low frequencies. This combination of power and accuracy makes it ideal for those who desire an audio system capable of delivering deep and well-defined bass.

Adaptable to different configurations, the EXL-X15.2D is suitable for both ported enclosure and sealed enclosure installations, offering flexibility in the choice of sound type and compatibility with vehicles of various sizes.

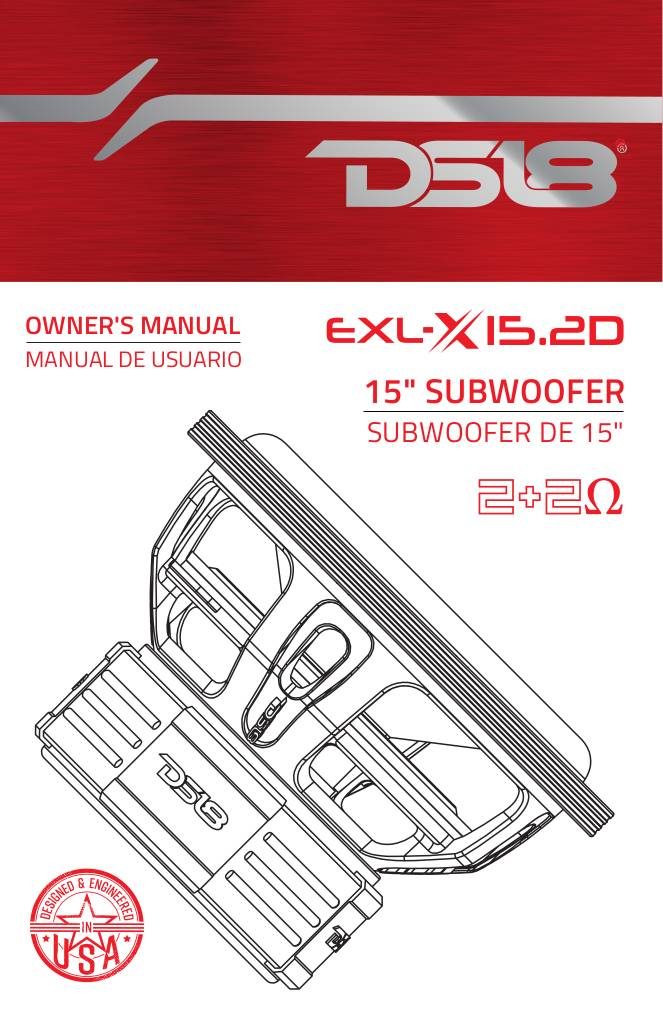

Scheda tecnica

n-20241031172726-exl-x15-2d-scheda-tecnica.pdf

DS18 EXL-X15.2D Technical Specifications

  • Nominal diameter 15" / 381 mm
  • Nominal impedance 2+2 ohm
  • RMS power handling 1250W
  • Maximum available power 2500 W
  • Sensitivity (1w/1m) 92dB
  • Frequency response 25Hz-1.5KHz
  • Recommended high-pass crossover 120Hz

Motor

  • Voice coil diameter 2.57" / 65.2 mm
  • Voice coil material Black aluminum
  • Winding material SV
  • Cone material Uncompressed paper + fiberglass
  • Dust cap material PPI
  • Surround material Foam
  • Frame material Aluminum
  • Frame color/finish Gloss red
  • Magnet material Ferrite
  • Magnet weight 2 x 105 oz
  • Displacement volume 6.2L / 0.218ft3

Dimensions

  • Overall diameter 15.6" / 396 mm
  • Overall depth 9.15" / 232.5 mm
  • Baffle cutout for front mounting 14" / 355 mm
  • Mounting depth 8" / 205 mm
  • Motor diameter 7.72" / 196 mm
  • Gross weight of single unit (lb) 39
  • Dimensions W x W x H (inches) 17.5 x 17.5 x 11.75
  • Quantity of units in master carton 1
  • Gross weight of master carton (lb) 39
  • Dimensions M/C W x W x H (inches) 17.5 x 17.5 x 11.75
