EXL-X12.2D 12" Subwoofer 1250 Watts RMS DVC 2 Ohm

DS18

Coming soon

Your price:
€ 305,00
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
Other sizes
MAX Power
2500 Watt
RMS Power
1250 Watt
Frequency Response
30 Hz - 1.7 KHz Hertz
Sensitivity
88 dB
Impedance
2 + 2 Ohm

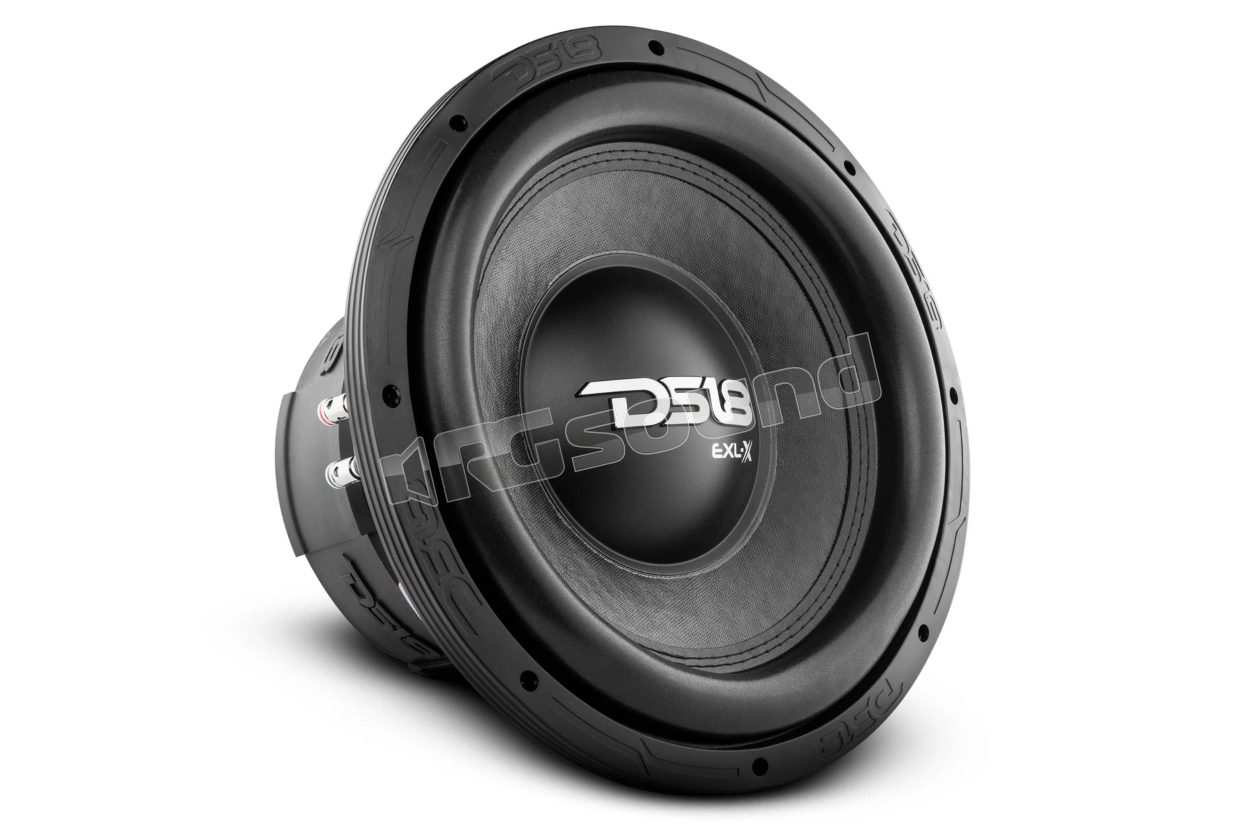

DS18 EXL-X12.2D 12" Subwoofer 1250 Watts Rms DVC 2 Ohm

The 12" DS18 EXL-X12.2D Subwoofer is designed to deliver powerful and precise bass, with a power handling capacity up to 2500 watts maximum and is equipped with a dual 2 ohm voice coil (DVC)

The red aluminum basket ensures a solid and resistant structure, capable of lasting long even under intensive use conditions. The fiberglass dust cap, in addition to protecting the internal components from potential damage, contributes to improving sound quality, maintaining clean and precise sound.

Despite its more compact dimensions compared to larger diameter models, the EXL-X12.2D is designed to produce deep and powerful bass. The standard size ferrite magnet and the pressed fiberglass cone, supported by a high-strength foam surround, work together to ensure detailed sound reproduction and quick response to low frequencies. The DS18 design palette further maximizes bass output, exceeding expectations in terms of sound depth and clarity.

The 2.57 inch voice coils allow the subwoofer to precisely handle a wide range of frequencies, from 30 Hz up to 1.7 kHz, ensuring accurate and powerful reproduction even at the lowest frequencies. This makes the DS18 EXL-X12.2D perfect for those looking for a subwoofer that offers not only power, but also superior sound quality.

Versatile and easy to integrate into any audio system, the EXL-X12.2D is compatible with both vented enclosure and sealed enclosure configurations, offering maximum installation flexibility in vehicles of different sizes.

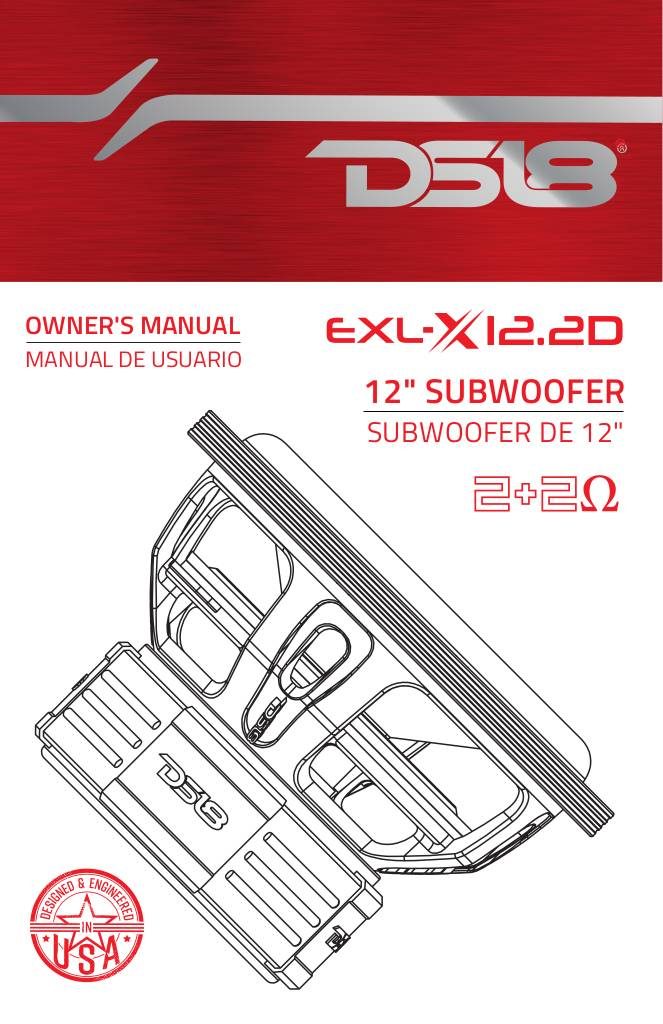

Scheda tecnica

n-20241031172321-exl-x12-2d-scheda-tecnica.pdf

DS18 EXL-X12.2D Technical Specifications

  • Nominal diameter 12" / 304.8 mm
  • Nominal impedance 2+2 ohm
  • RMS power handling 1250W
  • Maximum available power 2500 W
  • Sensitivity (1w/1m) 88dB
  • Frequency response 30Hz-1.7KHz
  • Recommended high-pass crossover 100Hz

Motor

  • Voice coil diameter 2.57" / 65.2 mm
  • Voice coil material Black aluminum
  • Winding material SV
  • Cone material Unpressed paper + fiberglass
  • Dust cap material PPI
  • Surround material Foam
  • Basket material Aluminum
  • Basket color/finish Glossy red
  • Magnet material Ferrite
  • Magnet weight 2 x 105 oz
  • Displacement volume 3L / 0.105ft3

Dimensions

  • Overall diameter 12.6" / 321 mm
  • Overall depth 8.14" / 207 mm
  • Baffle cutout for front mounting 11.1" / 282 mm
  • Mounting depth 7" / 180 mm
  • Motor diameter 7.72" / 196mm
  • Net weight of single unit (lb) 35
  • Dimensions L x W x H (inches) 14.5 x 14.5 x 10.75
  • Quantity of units in master carton 1
  • Net weight of master carton (lb) 35
  • M/C Dimensions L x W x H (inches) 14.5 x 14.5 x 10.75
