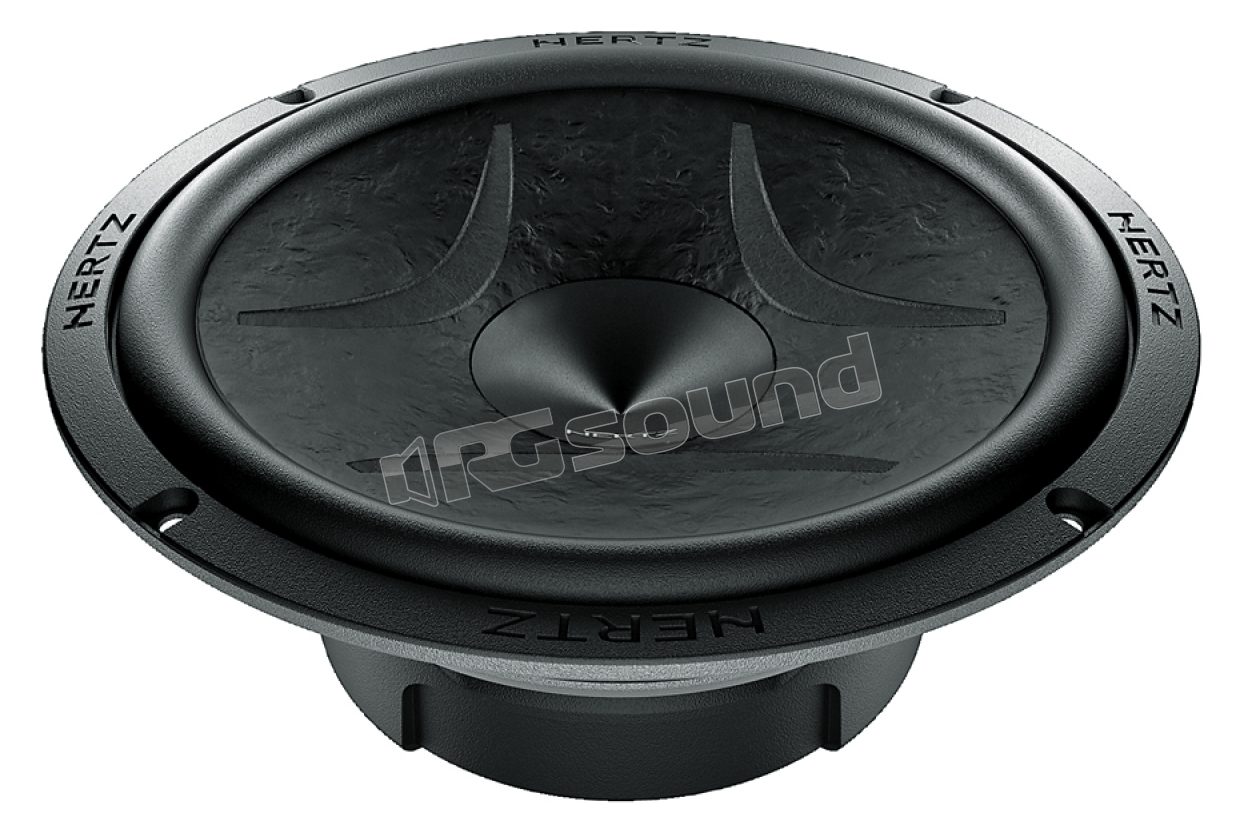

EV 165L.5

Hertz

Discontinued

Your price:
€ 68,00
Price per pair (VAT included)
Type
Woofer and midwoofer
Speaker Size
165 mm
MAX Power
210 Watt
RMS Power
70 Watt
Frequency Response
50-4000 Hertz
Sensitivity
92 dB
Impedance
4 Ohm
Weight
0.98 Kg
Installation Depth
65 mm
Woofer Material
Fibra di cellulosa

165 mm midwoofer Energy series - Max Power 210 W

EV 165L.5 provides extreme control over sound reproduction, guaranteed by the use of an oversized motor and a cone with V-cone® profile stiffened with deep reinforcements.
The basket complying with DIN standards, the low-profile surround and compact dimensions make them easy to install in any standard system. The protective ring on the magnet in natural rubber performs an important anti-corrosion and anti-scratch function, and ensures acoustic damping of the basket and motor system.


In the EV 165L.5, the cone is made with an original uncompressed cellulose compound that allows to obtain an extremely powerful and full-bodied bass range, even in the absence of a subwoofer.



1. V-cone® for best off-axis response and detail in the mid-high range.
2. Cellulose fiber cone with water-repellent treatment, for dynamic, deep and controlled bass.
3. Voice coil in pure copper, wound on aluminum support, for exceptional thermal and mechanical capacity.
4. Oversized magnetic assembly for energetic control of the moving parts.
5. Low-carbon pole plates for maximum magnetic permeability and high heat dissipation.
6. Magnet coated in rubber, to ensure mechanical damping of the basket and motor assembly, and protect it from possible abrasion and damage.
7. Basket complying with DIN standards, coated with protective anti-abrasion and anti-scratch material.
8. High current terminals, tin-plated.
9. Silver-plated stranded wire, for maximum reliability and conductivity.
10. Basket-motor assembly coupling in epoxy glue.
11. Nomex spider with memory shape, for constant and reliable performance.

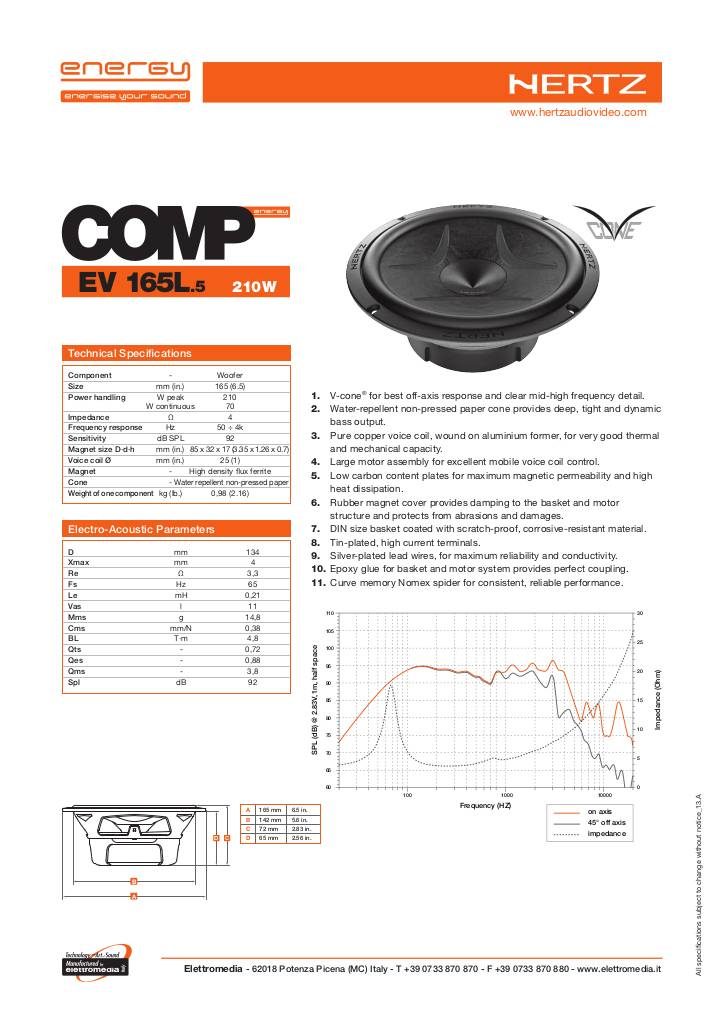

Scheda tecnica

20130711170628-hertz-energy-ev165l-5-tech.pdf
Discontinued
