ET 26.5 Energy series tweeter 26 mm - MAX power 150 Watt

Hertz

Discontinued

Your price:
€ 45,00
Price per pair (VAT included)

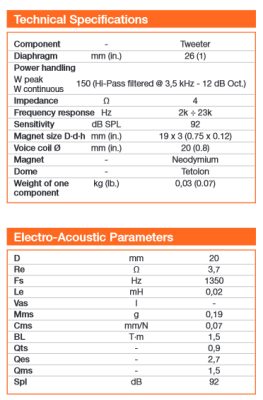

Type
Tweeter
Dome Size
26 mm
MAX Power
150 Watt

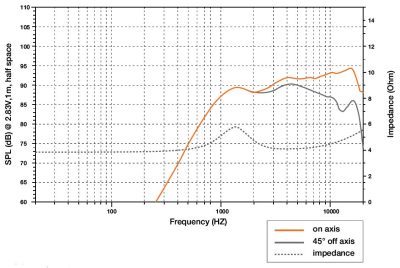

Frequency Response
2-23 Hertz
Sensitivity
92 dB
Impedance
4 Ohm
Outer Diameter
44 mm
Installation Depth
8.5 mm
Tweeter Material
Tetolon

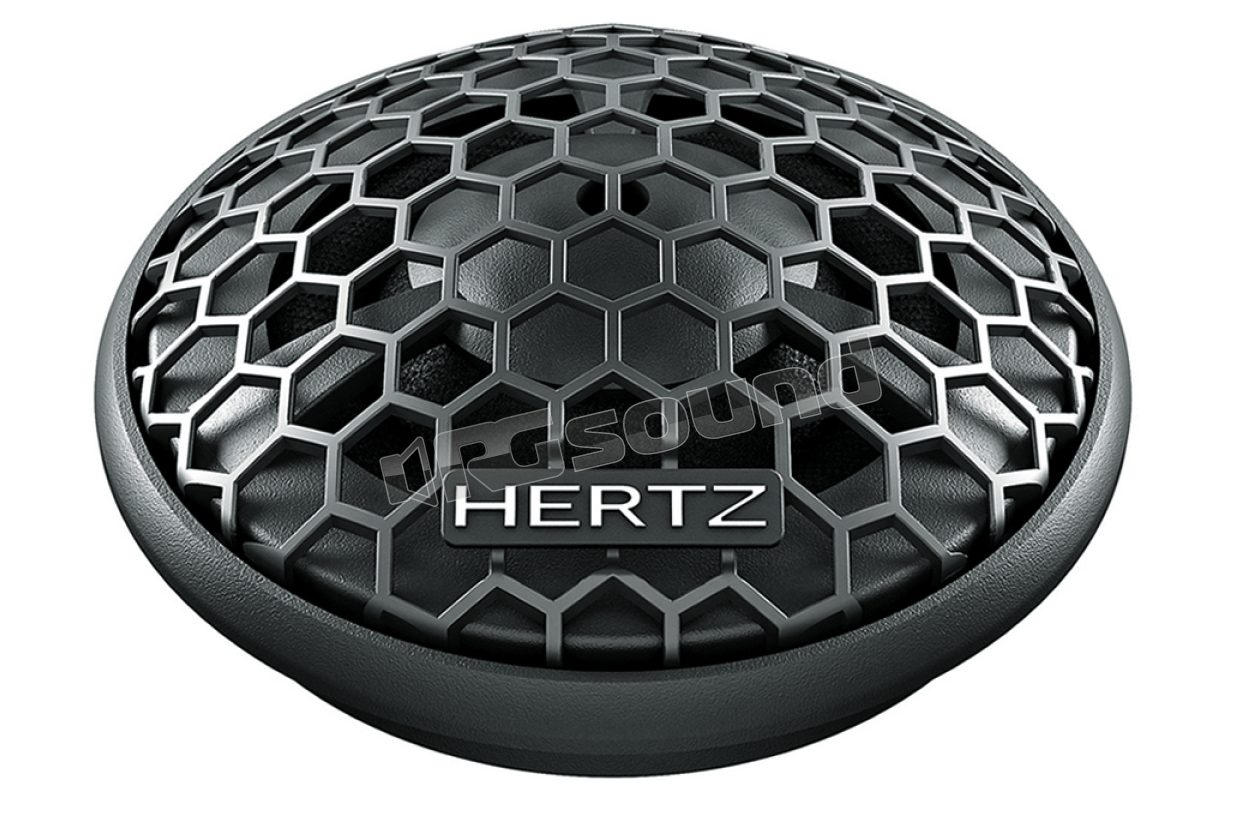

Hertz ET 26.5 Tweeter energy series 26 mm - MAX Power 150 Watt

ET 26.5 is a dome tweeter designed to achieve perfect linearity in frequency response and high sound level.
This tweeter uses an innovative 26 mm Tetolon dome with a hemispherical profile and a wide external suspension. An acoustic compression chamber, tuned using advanced finite element modeling technologies, ensures the increase of acoustic pressure and controls off-axis dispersion for powerful, clean and undistorted sound. The high-energy neodymium magnet and low-carbon-content polar plates contribute to significantly increasing stability and permeability of the magnetic assembly.


Functionality and efficiency of materials and architecture, to reproduce crystalline and natural sound, even extended over time.

See the attached technical data sheet for installation instructions.

ET 26.5 FEATURES
1. Tetolon dome with hemispherical profile and wide-arch surround; extremely light and acoustically well insulated for soft frequency response and extended to high frequencies.
2. Acoustic compression chamber, to achieve maximum efficiency and optimal off-axis dispersion.
3. Ultra-light moving coil cooled with ferrofluid in CCAW (Copper Clad Aluminium Wire).
4. High-energy neodymium magnet.
5. Low-carbon-content polar plates for maximum magnetic permeability and high thermal dissipation.
6. Sound-absorbing material, for the control of acoustic resonances, ensures clear tones in high frequencies.
7. Supports included for mounting both surface and recessed.


Scheda tecnica

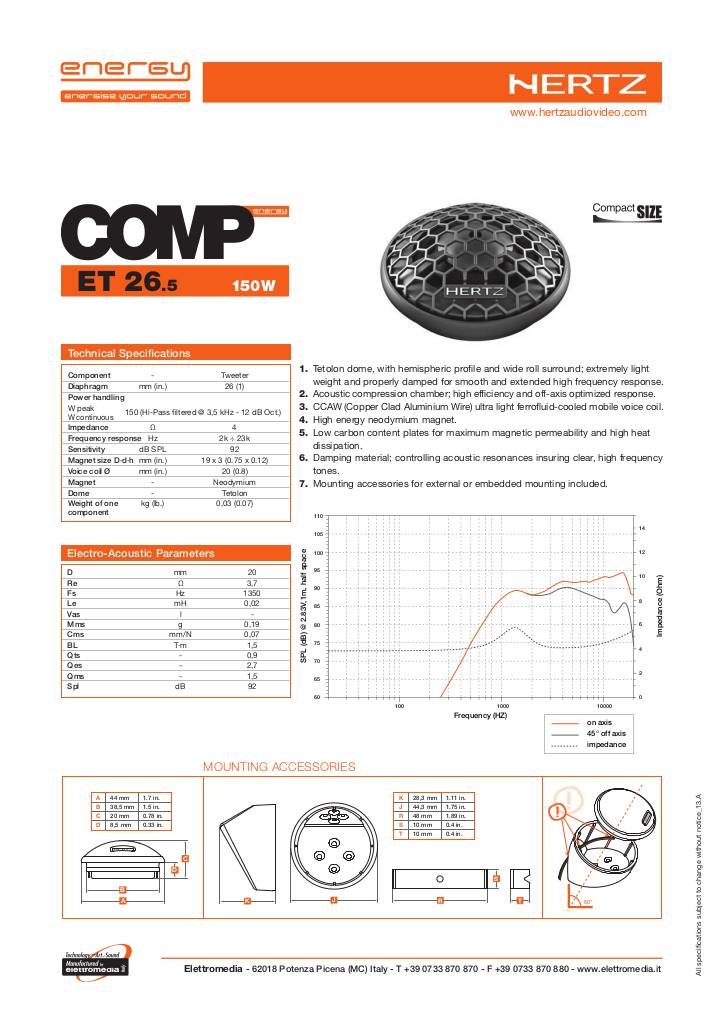

20130711163224-hertz-energy-et26-5-tech.pdf

2x Tweeter ET 26.5 User manuals
