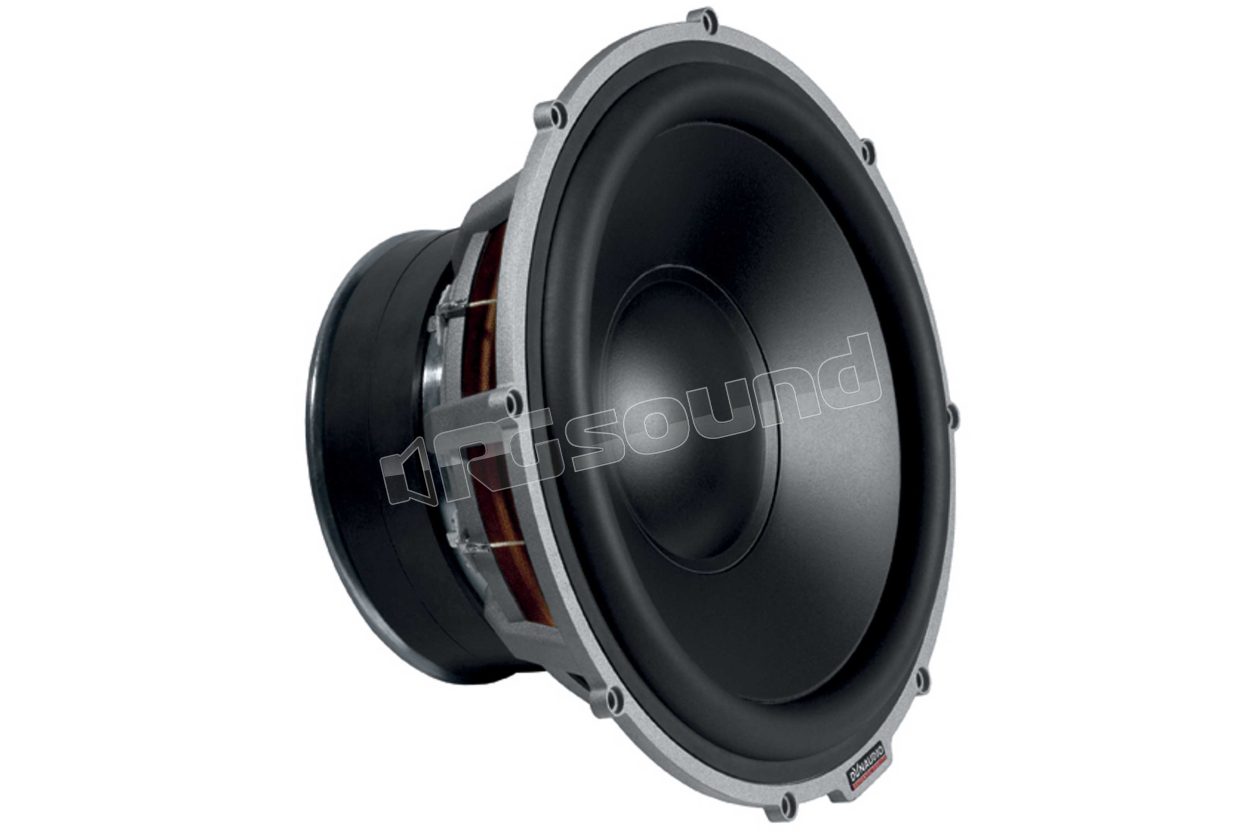

Esotar2 1200

Dynaudio

Coming soon

Your price:
€ 998,00
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
320 mm
MAX Power
1500 Watt
RMS Power
400 Watt
Frequency Response
18,7 Hertz
Sensitivity
88 dB
Impedance
4 Ohm
Weight
8,8 Kg
Installation Depth
143 mm
Woofer Material
MSP

DYNAUDIO ESOTAR² 1200 reference subwoofer with MPS cone, 75 mm voice coil, 297mm external diameter. 4 Ohm impedance.

The Esotar subwoofer features the typical construction of Dynaudio Esotar products: a huge magnet powers an oversized 75 mm diameter aluminum voice coil and an MSP cone diaphragm.

Dynaudio's exclusive MSP material offers the ideal combination of rigidity, lightness and excellent internal damping to reproduce the lowest frequencies naturally without distortion. Esotar² 1200 uses a basket with an ultra-rigid die-cast frame to ensure the absence of resonances and powerful, accurate and controlled bass response.

Thanks to innovative Dynaudio construction with precise parameters and extremely tight tolerances, this 30 cm (12") diameter woofer has been optimized to achieve the most advanced sub-bass performance. And thanks to very low distortion and incredibly fast response speed, the Esotar² 1200 is extremely easy to integrate into any high-performance system.

Main features ESOTAR² 1200:

The large 75 mm voice coil ensures high power

Diaphragm with very high excursion, 58mm peak-to-peak

High power handling, IEC 400W long-term

Rigid die-cast frame with aerodynamic ribs

Materials and parameters are optimized for harsh automotive environmental conditions

Combining powerful yet deep bass with incredible extension down to 18 Hz, Esotar² 1200 reproduces maximum sound pressure levels down to the lowest notes by following the amplifier signal exactly, even at maximum output levels.

Esotar² 1200 brings Dynaudio's most sophisticated design and development into the world of automotive subwoofer systems to set another benchmark in car audio.

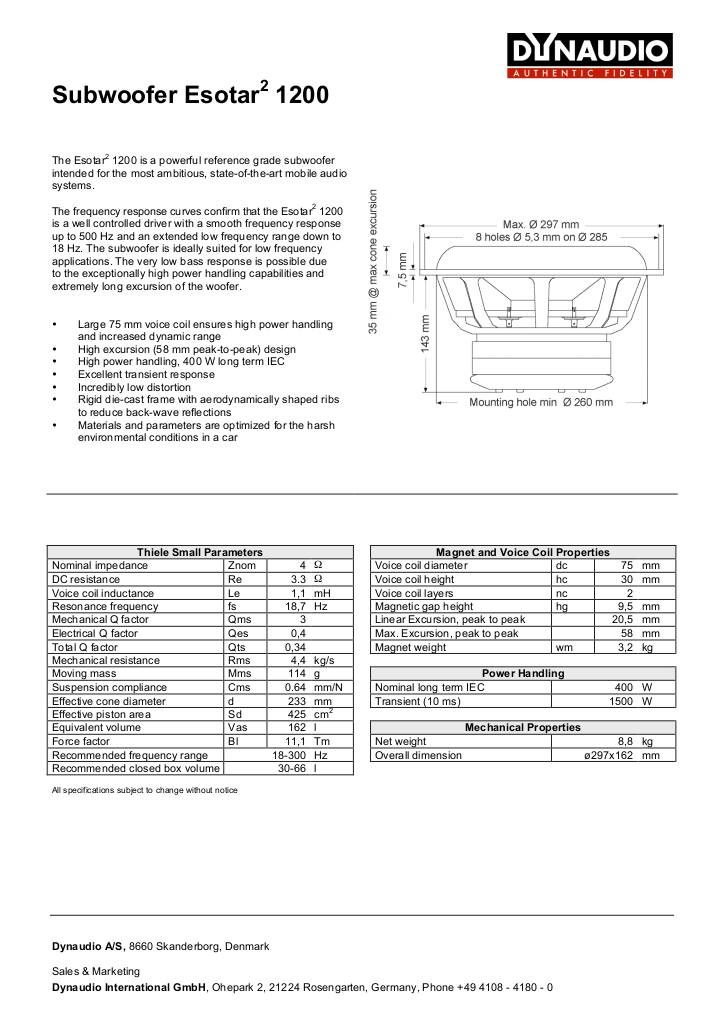

Scheda Tecnica e parametri acustici

20090712225025-esotar2-1200.pdf

1x ESOTAR² 1200 Speaker

DYNAUDIO ESOTAR² 1200 technical specifications:

Power handling 400 Watt
Impedance 4 Ohm
Frequency from 18 Hz
Max. Frequency 0.3 kHz

Diameter 297 mm
Mounting hole 260 mm
Mounting depth 143 mm
Voice coil Ø 75 mm
Voice coil height 30 mm

Resonance fsfs: 18.7 Hz
Mechanical QQms: 3
Electrical QQes: 0.4
Total QQts: 0.34
Equivalent Air-VolumenVas: 163 Liter
DC-ResistanceRe: 3.3 Ohm
