ESK F165.5 with ultra-slim woofer

Hertz

Discontinued

Your price:
€ 138,00
Price per single item (VAT included)

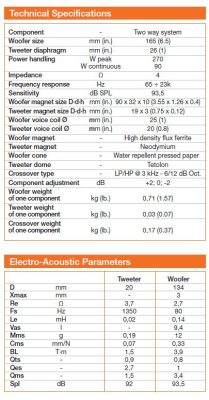

Type
2-way separate kit
Frequency Response
65-23 Hertz
Woofer Size
165 mm
Tweeter Size
26 millimetri
MAX Power
270 Watt
RMS Power
90 Watt
Sensitivity
93.50 dB
Impedance
4 Ohm
Woofer Material
Fibra di cellulosa
Tweeter Material
Tetolon

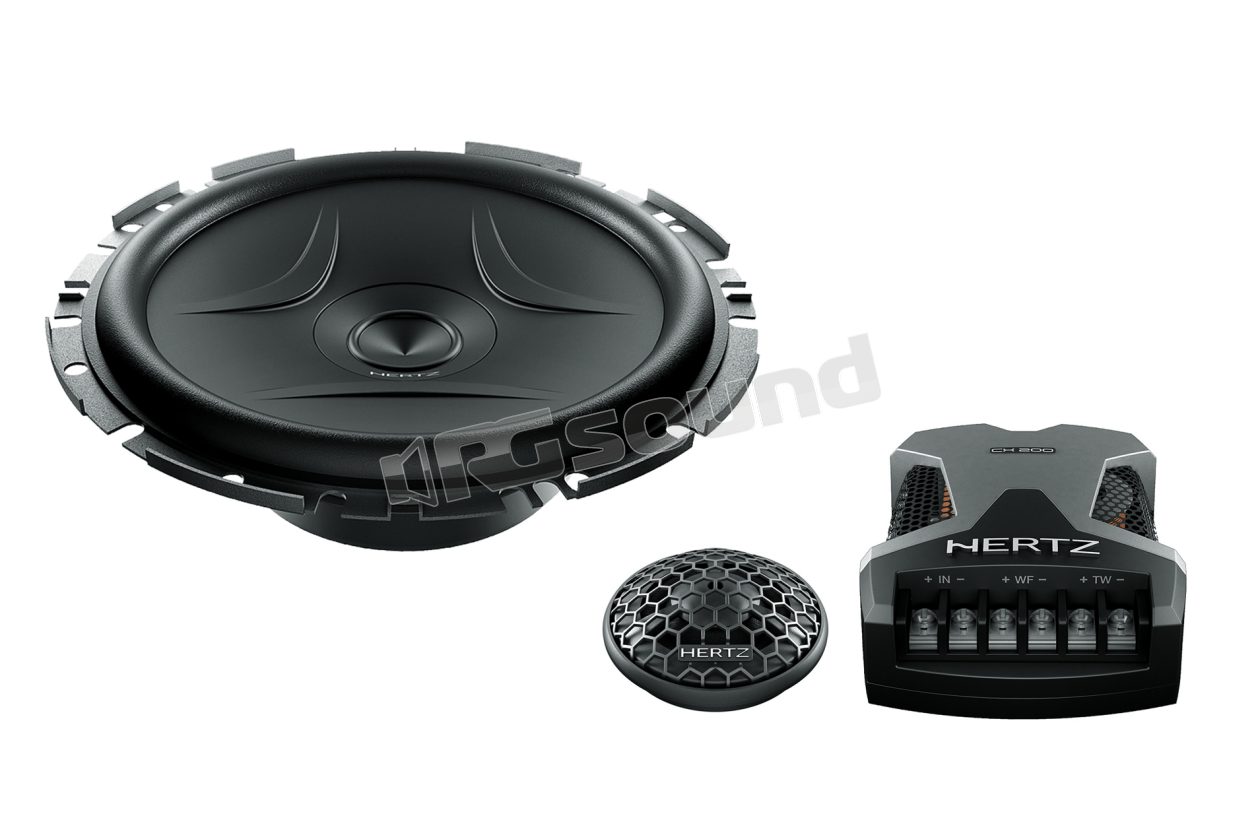

Hertz ESK F165.5 2-way kit from the new Energy series consisting of 2 ET 26.5 tweeters + 2 shallow-mount EV F165.5 woofers + 2 crossovers + 2 grilles and mounting accessories.

The ideal solution for unique and sensational sound reproduction even in limited spaces.
ESK F165.5 is a two-way system that uses the exclusive ET 26.5 tweeter, the ultra-slim EV F165.5 woofer and the specific CX 200.5 crossover, a combination of highly performing and technologically advanced products (see the dimensions of individual components in the attached technical sheet).

Excellent frequency response, wide installability also in factory openings, efficiency and attractive design: the Energy.5 systems fully summarize and embody the sound philosophy of the Energy line. Pure energy for listening.

The Energy.5 line enhances the innovations introduced in the four version and becomes even more installable, even in factory openings, and more performant. Every Energy.5 component was developed with the goal of optimizing installation dimensions: a careful study of the woofer and coaxial profiles led, in the former, to more compact baskets and motor groups, and in the latter, to an alignment between the tweeter height and the woofer surround height, reducing those thicknesses which, although minimal inside a door, become fundamental.

ET 26.5
1. Tetolonhemispheric profile dome with wide-vault surround; extremely light and acoustically well-insulated for a soft and extended frequency response in the high frequencies.
2. Acoustic compression chamber, to achieve maximum efficiency and optimal off-axis dispersion.
3. Ultra-light voice coil cooled with ferrofluid in CCAW (Copper Clad Aluminium Wire, copper-coated aluminum wire).
4. High-energy neodymium magnet.
5. Low-carbon pole plates for maximum magnetic permeability and high heat dissipation.
6. Sound-absorbing material, for the control of acoustic resonances, ensures clear tones in the high frequencies.


EV F165.5
1. Flat profile to facilitate replacement of factory speakers.
2. V-cone® for the best off-axis response and detail in the midrange.
3. Cellulose fiber cone with water-repellent treatment; butyl rubber suspensions.
4. Pure copper voice coil, wound on aluminum support, for exceptional thermal and mechanical capacity.
5. Oversized magnetic group for energetic control of the mobile assembly.
6. Low-carbon pole plates for maximum magnetic permeability and high heat dissipation.
7. Basket to DIN standards, coated with protective anti-abrasion and anti-scratch material.
8. High-current terminals, tin-plated.
9. Silver-plated braids, for maximum reliability and conductivity.
10. Basket-motor group coupling in epoxy glue.
11. Nomex spider with memory shape, for consistent and reliable performance.

* Tweeter mounting accessories and woofer grille included.

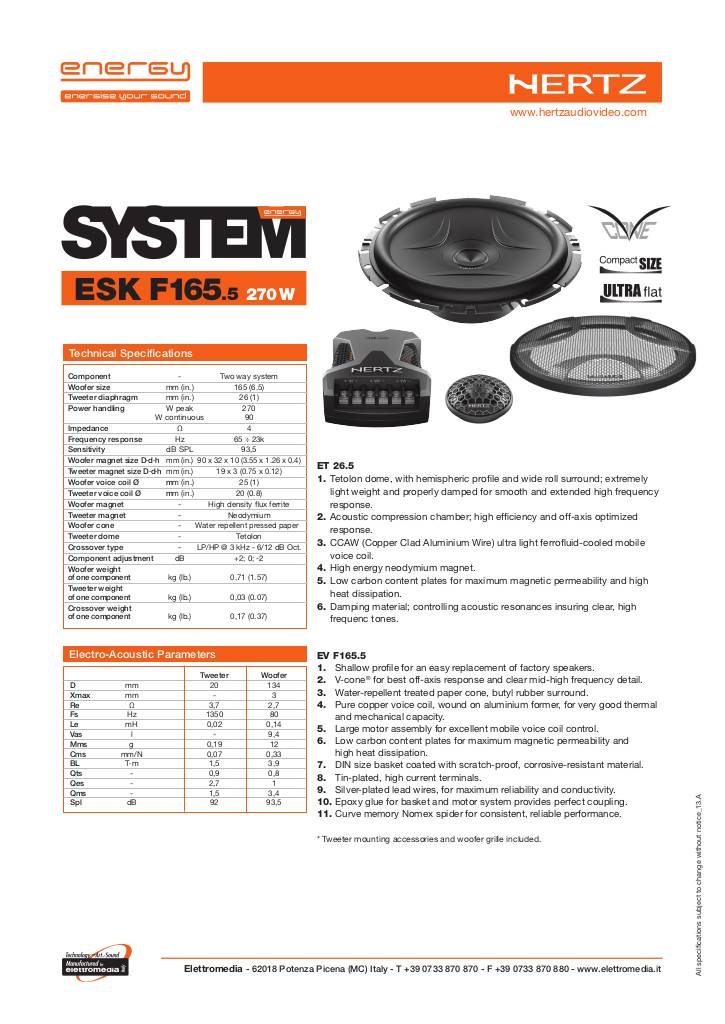

Scheda tecnica

20130712105546-hertz-energy-eskf165-5-tech.pdf

2 midwoofers 2 tweeters 2 crossovers 2 woofer grilles tweeter mounting accessories installation manual
