ESK F165.5 - occasione - ex-demo kit with ultra-slim woofer

Hertz

Discontinued

Your price:
€ 109,00
Price per single item (VAT included)

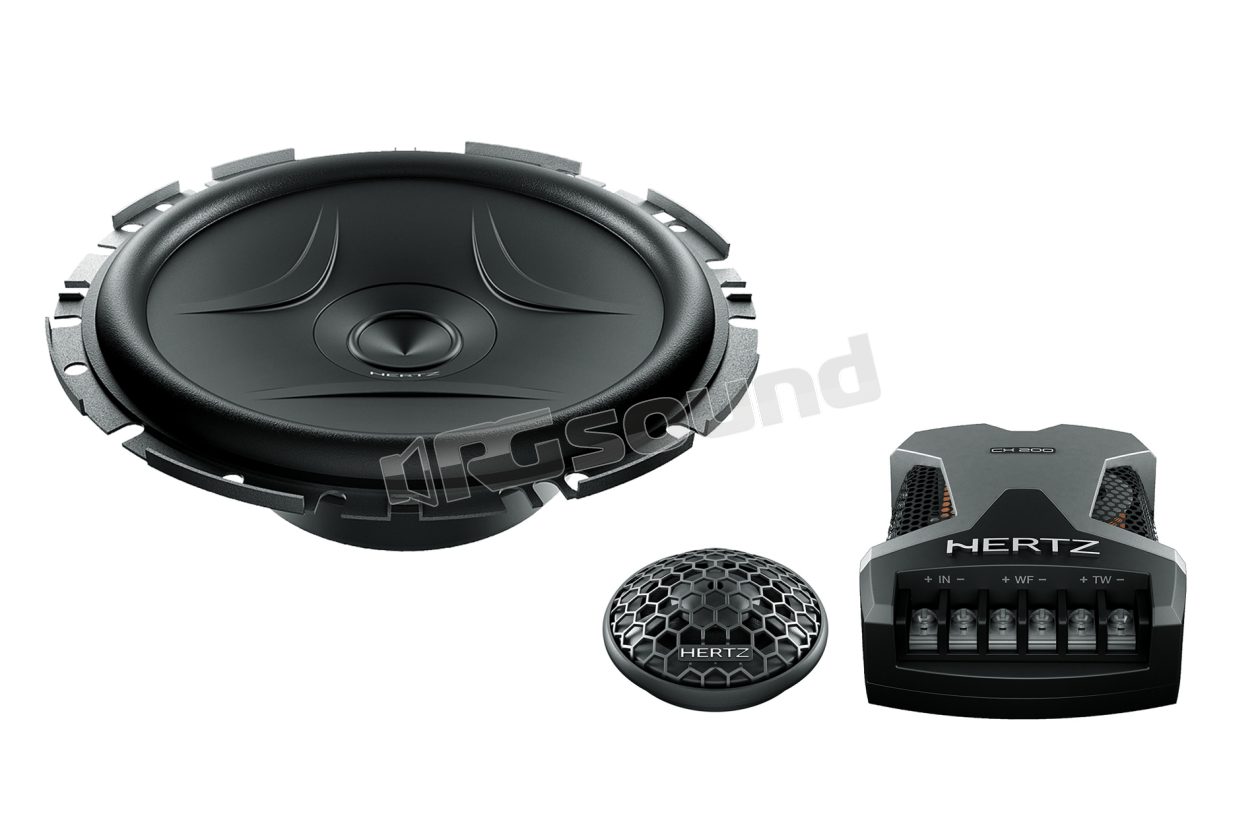

Hertz ESK F165.5 2-way kit from the new Energy series consisting of 2 tweeters ET 26.5 + 2 low-profile woofers EV F165.5 + 2 crossovers + 2 grilles and mounting accessories.

New product, shows mounting marks on the woofer from store display.

The ideal solution for unique and sensational sound reproduction even in limited spaces.
ESK F165.5 is a two-way system that uses the exclusive ET 26.5 tweeter, the ultra-slim EV F165.5 woofer and the specific CX 200.5 crossover, a combination of highly performing and technologically advanced products (see the dimensions of individual components in the attached technical data sheet).

Excellent frequency response, wide installability even in factory preparations, efficiency and attractive design: the Energy.5 systems summarize and fully embody the sound philosophy of the Energy line. Pure energy for listening.

The Energy.5 line enhances the innovations introduced in the four version and becomes even more installable, even in factory preparations, and more performing. Every Energy.5 component has been developed with the objective of optimizing installation dimensions: careful study of the woofer and coaxial profiles has led, in the former, to more compact baskets and motor assemblies, and in the latter, to alignment between the height of the tweeter and that of the woofer surround, reducing those thicknesses that, though minimal inside a door panel, become fundamental.

ET 26.5
1. Tetolon dome with hemispherical profile and wide vault surround; extremely light and acoustically well isolated for a smooth and extended frequency response in the high frequencies.
2. Acoustic compression chamber, to achieve maximum efficiency and optimal off-axis dispersion.
3. Ultra-light voice coil cooled with ferrofluid in CCAW (Copper Clad Aluminium Wire).
4. High-energy neodymium magnet.
5. Low-carbon pole plates for maximum magnetic permeability and high thermal dissipation.
6. Sound-absorbing material, for control of acoustic resonances, ensures clear tones in the high frequencies.


EV F165.5
1. Flat profile to facilitate replacement of factory speakers.
2. V-cone® for best off-axis response and detail in the mid-high range.
3. Cellulose fiber cone with water-repellent treatment; butyl rubber suspensions.
4. Pure copper voice coil, wound on aluminum support, for exceptional thermal and mechanical capacity.
5. Oversized magnetic assembly for vigorous control of the moving assembly.
6. Low-carbon pole plates for maximum magnetic permeability and high thermal dissipation.
7. Basket to DIN standards, coated with protective anti-abrasion and anti-scratch material.
8. High-current terminals, tin-plated.
9. Silver-plated braids, for maximum reliability and conductivity.
10. Basket-motor assembly bonding with epoxy glue.
11. Nomex spider with shape memory, for consistent and reliable performance.

* Includes mounting accessories for the tweeter and grille for the woofer.

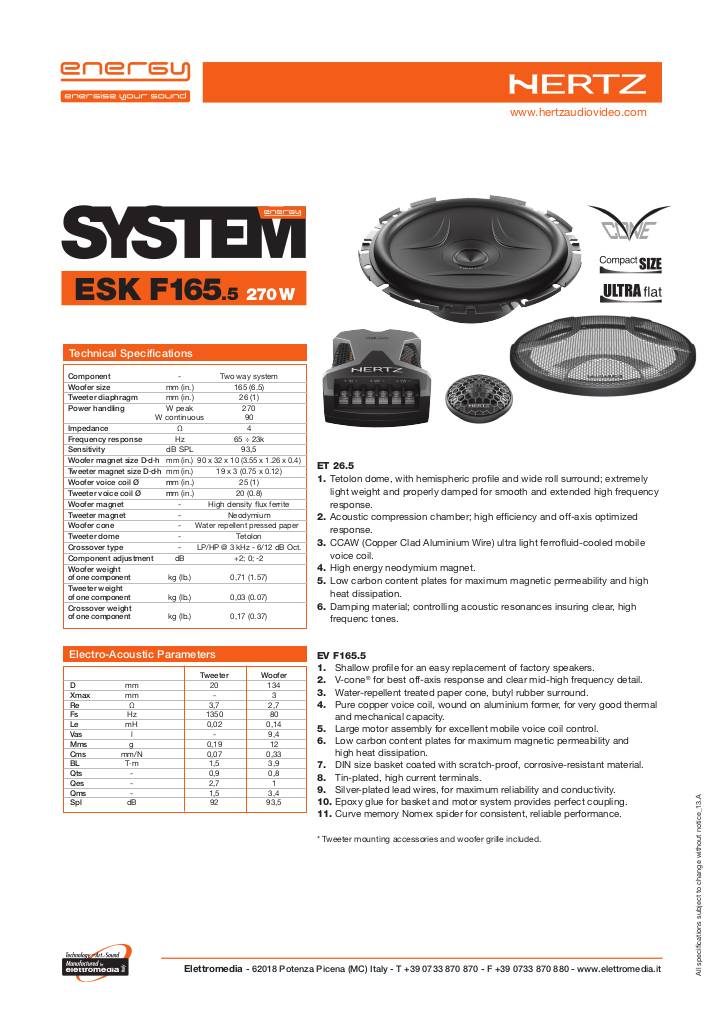

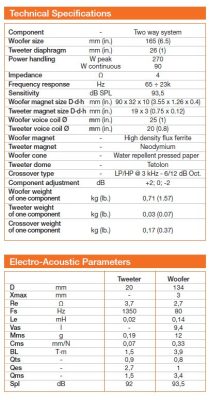

Scheda tecnica

20130712105546-hertz-energy-eskf165-5-tech.pdf

2 midwoofers 2 tweeters 2 crossovers 2 woofer grilles tweeter mounting accessories installation manual
Discontinued
