ESK 130.5

Hertz

Discontinued

Your price:
€ 128,00
Price per single item (VAT included)
Type
2-way separate kit
Frequency Response
70-23 Hertz
Woofer Size
130 mm
Tweeter Size
26 millimetri
MAX Power
225 Watt
RMS Power
75 Watt
Sensitivity
93 dB
Impedance
4 Ohm
Woofer Material
Fibra di cellulosa
Tweeter Material
Tetolon

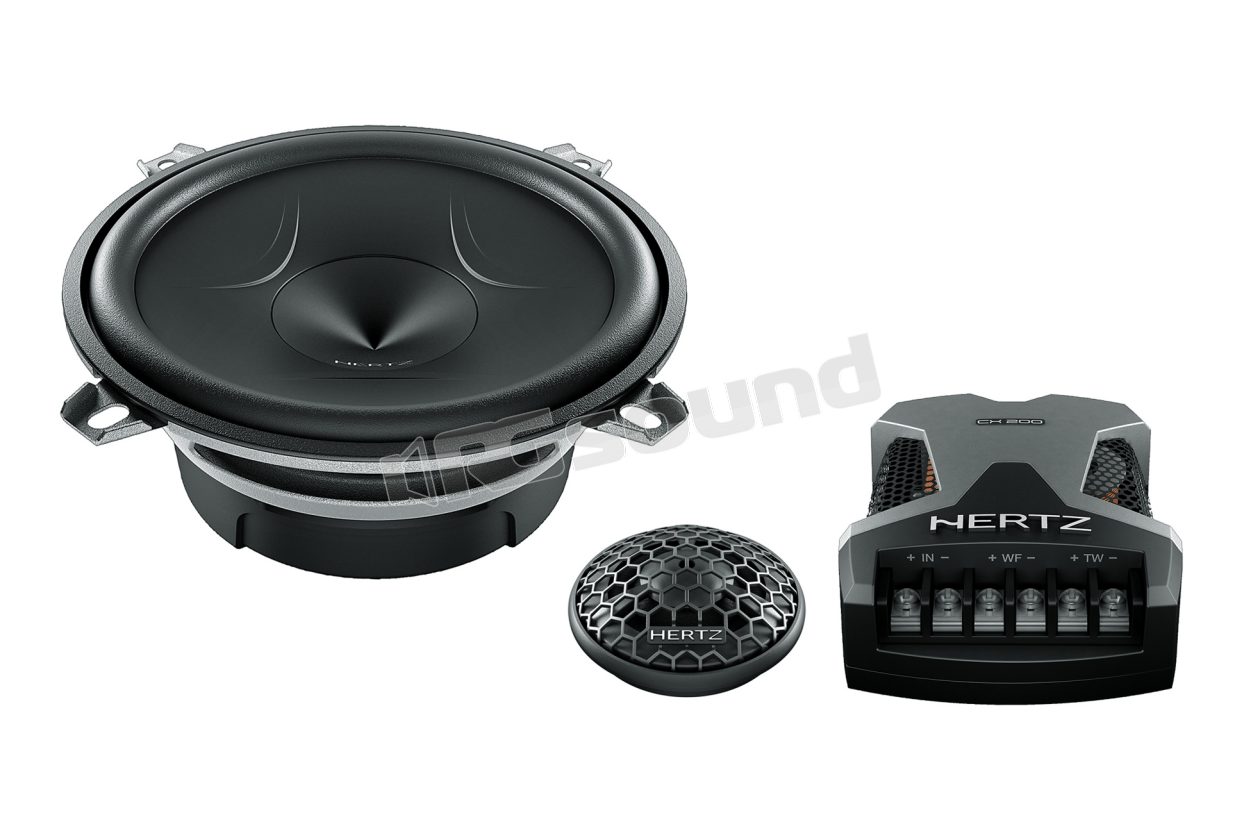

Hertz ESK 130.5 2-way kit from the new Energy series composed of 2 tweeters ET 26.5 + 2 woofers EV 130.5 + 2 crossovers + 2 grilles and mounting accessories.

ESK 130.5 is a two-way system that uses the exclusive ET 26.5 tweeter, the EV 130.5 woofer and the specific CX 200.5 crossover, creating a combination of technologically advanced products to ensure exciting acoustic performance.

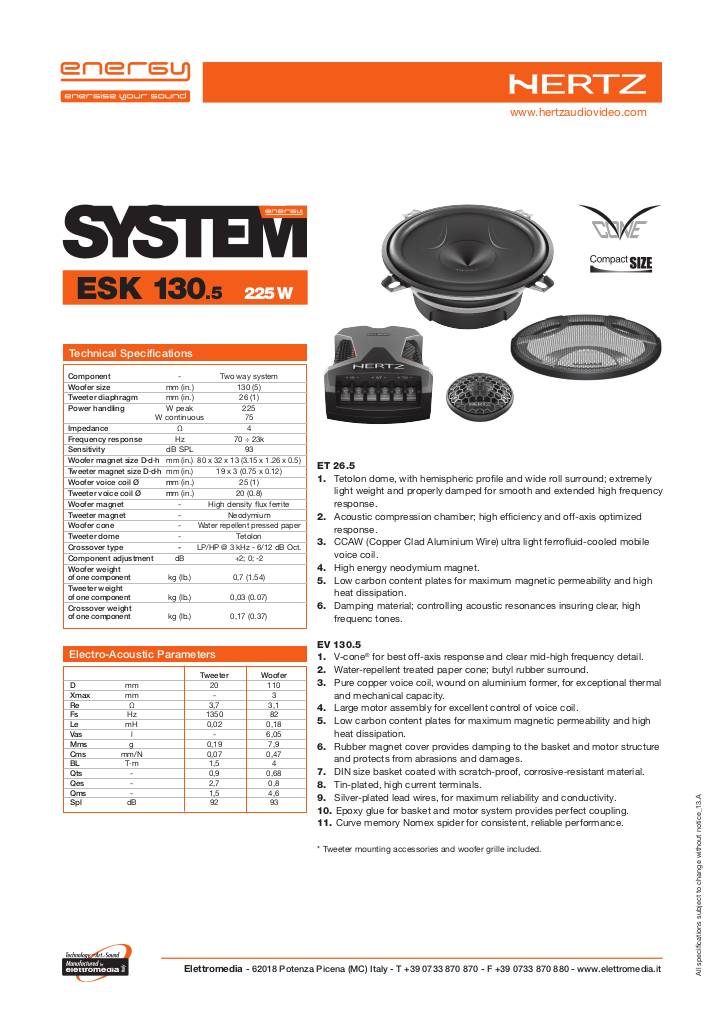

See the dimensions of the individual components in the attached technical data sheet.

Excellent frequency response, wide installability even in factory provisions, efficiency and attractive design: the Energy.5 systems embody and fully express the sound philosophy of the Energy line. Pure energy for listening

The Energy.5 line enhances the innovations introduced in the four version and becomes even more installable, even in factory provisions, and more performing.

Each Energy.5 component was developed with the objective of optimizing installation dimensions: careful study of the profile of woofers and coaxials led, in the former, to more compact baskets and motor groups, and in the latter, to an alignment between the height of the tweeter and that of the woofer surround, reducing those thicknesses which, although minimal inside a door panel, become fundamental.

ET 26.5
1. Tetolon dome with hemispherical profile and surround with wide vault; extremely lightweight and acoustically well isolated for smooth and extended frequency response at high frequencies.
2. Acoustic compression chamber, to obtain maximum efficiency and optimal off-axis dispersion.
3. Ultra-lightweight voice coil cooled with ferrofluid in CCAW (Copper Clad Aluminium Wire).
4. High-energy neodymium magnet.
5. Low-carbon pole plates for maximum magnetic permeability and high thermal dissipation.
6. Sound-absorbing material, for the control of acoustic resonances, guarantees clear tones in the high frequencies.

EV 130.5
1. V-cone® for best off-axis response and detail in the midrange.
2. Cone in water-repellent treated cellulose fiber; suspensions in butyl rubber.
3. Voice coil in pure copper, wound on aluminum support, for exceptional thermal and mechanical capacity.
4. Oversized magnetic group for energetic control of the moving assembly.
5. Low-carbon pole plates for maximum magnetic permeability and high thermal dissipation.
6. Rubber-coated magnet, to ensure mechanical damping of the basket and motor group, and protect it from possible abrasion and damage.
7. DIN-standard basket, coated with protective material against abrasion and corrosion.
8. High current terminals, tin-plated.
9. Silver-plated braids for maximum reliability and conductivity.
10. Basket-motor group coupling in epoxy glue.
11. Nomex spider with shape memory, for consistent and reliable performance.

* Includes mounting accessories for tweeter and grilles for woofer

Scheda tecnica

20130711180034-hertz-energy-esk130-5-tech.pdf

2 midwoofers 2 tweeters 2 crossovers 2 woofer grilles tweeter mounting accessories installation manual
Discontinued
