ESK 130.5 grilles not included

Hertz

Discontinued

Your price:
€ 109,90
Price per single item (VAT included)

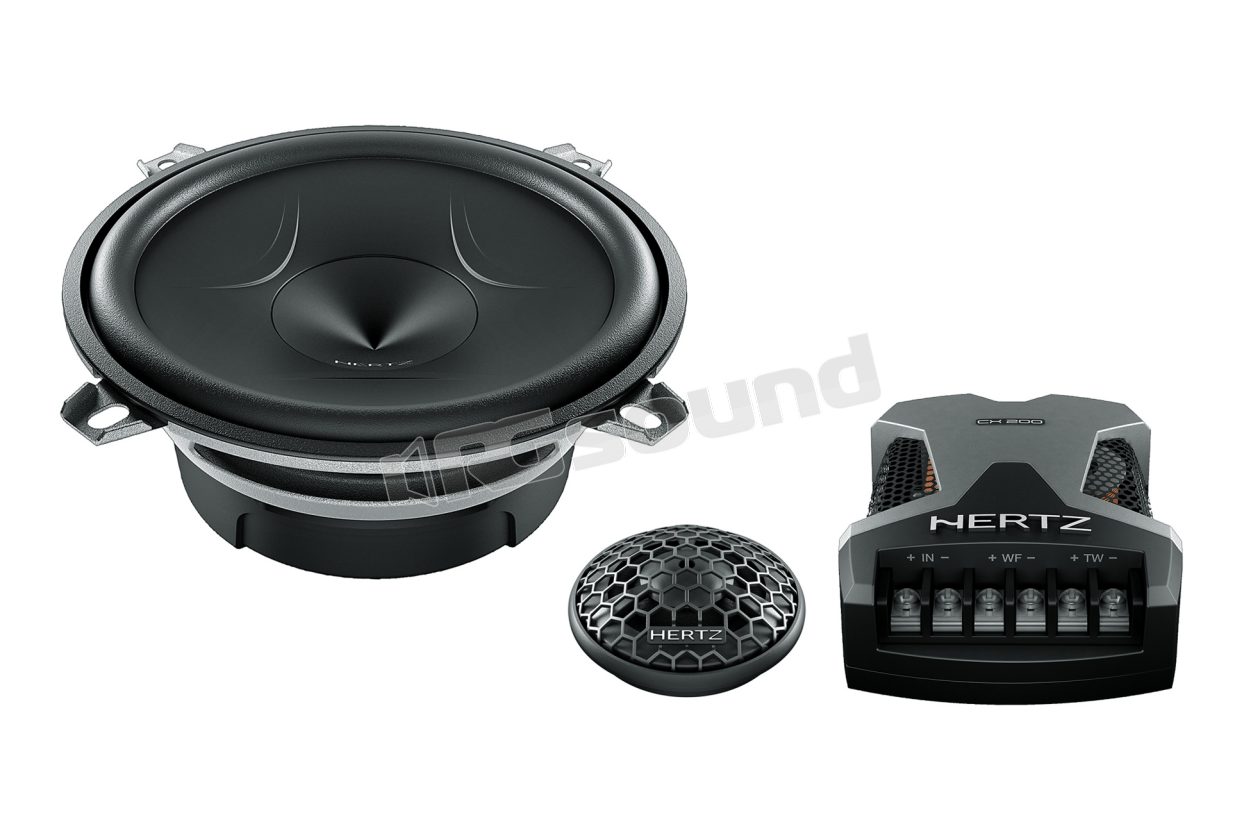

Hertz ESK 130.5 2-way kit from the new Energy series consisting of 2 tweeters ET 26.5 + 2 woofers EV 130.5 + 2 crossovers and mounting accessories.

Package without speaker grilles.

ESK 130.5 is a two-way system that uses the exclusive ET 26.5 tweeter, the EV 130.5 woofer and the specific CX 200.5 crossover, creating a combination of technologically advanced products to ensure exciting acoustic performance.

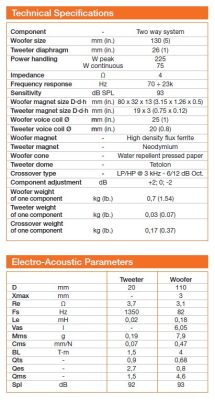

See the dimensions of the individual components in the attached technical data sheet.

Excellent frequency response, wide installability even in factory audio systems, efficiency and attractive design: the Energy.5 systems summarize and fully embody the sound philosophy of the Energy line. Pure energy for listening

The Energy.5 line enhances the innovations introduced in the four version and becomes even more installable, even in factory audio systems, and more performing.

Each Energy.5 component was developed with the aim of optimizing installation space: careful study of the woofer and coaxial profile led, in the former, to more compact baskets and motor assemblies, and in the latter, to an alignment between the height of the tweeter and that of the woofer surround, reducing those thicknesses that, although minimal inside a car door, become fundamental.

ET 26.5
1. Tetolon dome with hemispherical profile and wide-vaulted surround; extremely lightweight and acoustically well-isolated for smooth and extended frequency response in the high frequencies.
2. Acoustic compression chamber, to obtain maximum efficiency and optimal off-axis dispersion.
3. Ultra-light voice coil cooled with ferrofluid in CCAW (Copper Clad Aluminium Wire).
4. High-energy neodymium magnet.
5. Low-carbon pole plates for maximum magnetic permeability and high thermal dissipation.
6. Sound-absorbing material, for the control of acoustic resonances, ensures clear tones in the high frequencies.

EV 130.5
1. V-cone® for best off-axis response and detail in the mid-high range.
2. Cone in water-repellent treated cellulose fiber; suspensions in butyl rubber.
3. Voice coil in pure copper, wound on aluminum support, for exceptional thermal and mechanical capacity.
4. Oversized magnetic assembly for energetic control of the moving assembly.
5. Low-carbon pole plates for maximum magnetic permeability and high thermal dissipation.
6. Rubber-coated magnet, to ensure mechanical damping of the basket and motor assembly, and protect it from possible abrasions and damage.
7. Basket to DIN standards, coated with protective material against abrasions and corrosion.
8. High-current terminals, tin-plated.
9. Silver-plated braids for maximum reliability and conductivity.
10. Basket-motor assembly coupling in epoxy glue.
11. Nomex spider with shape memory, for constant and reliable performance.

* Tweeter mounting accessories included

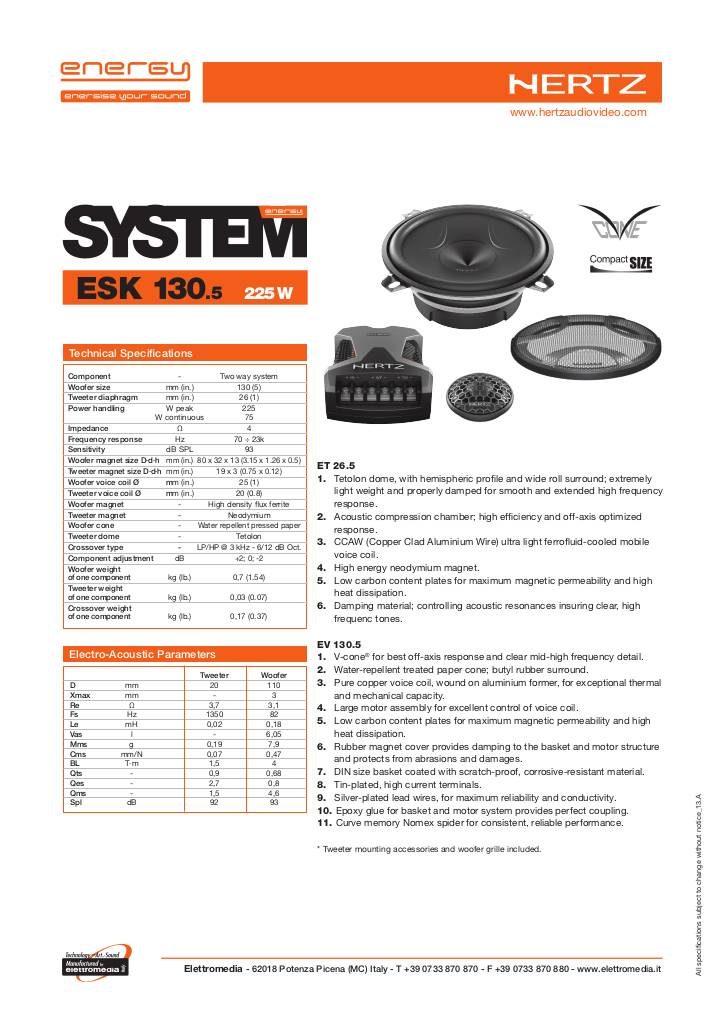

Scheda tecnica

20130711180034-hertz-energy-esk130-5-tech.pdf

2 midwoofers 2 tweeters 2 crossovers tweeter mounting accessories installation manual
