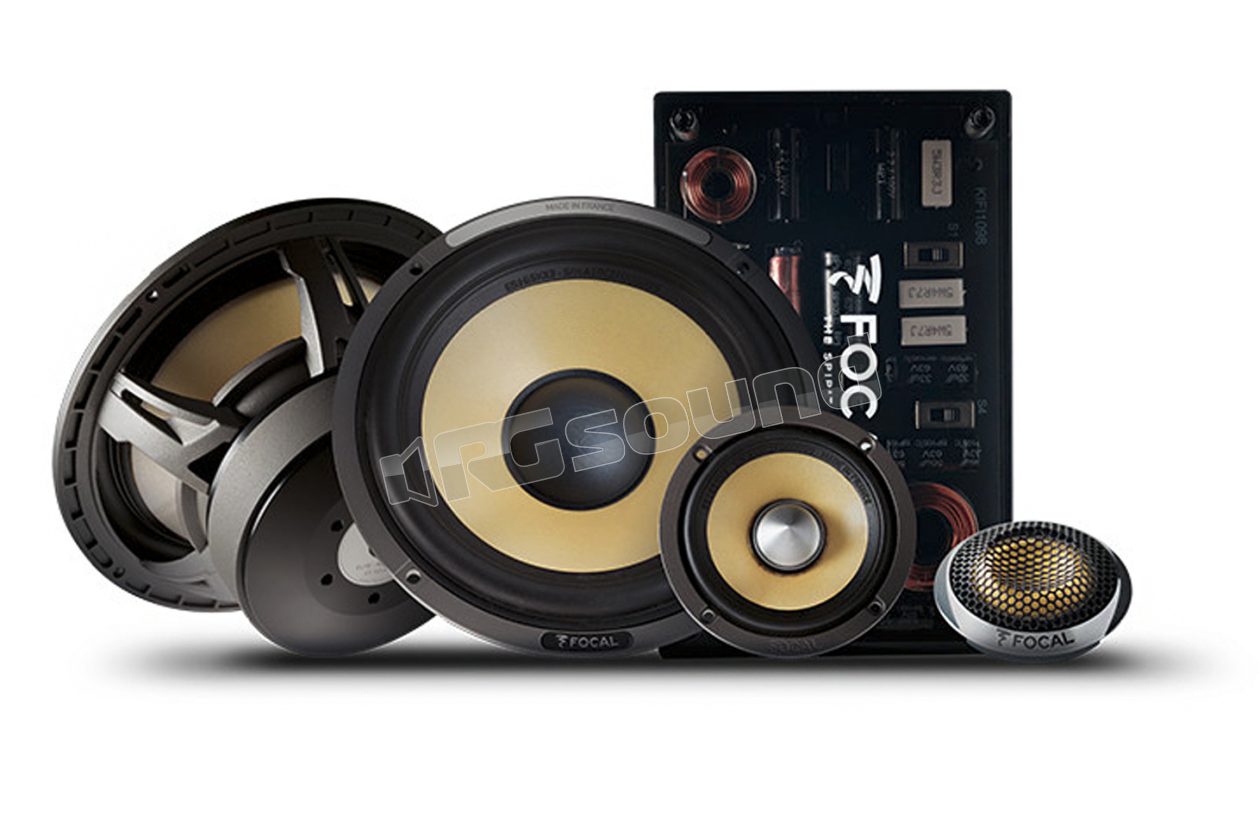

ES165KX3 16.5 cm 3-way kit

Focal

Discontinued

Your price:
€ 1199,00
Price per single item (VAT included)
Type
3-way separate kit
Woofer Size
165 mm
Midrange Size
80 millimetri
MAX Power
240 Watt
RMS Power
120 Watt
Frequency Response
45 - 22.000 Hertz
Sensitivity
93 dB
Impedance
4 Ohm
Woofer Material
Cono Kevlar

Focal ES 165 KX3 three-way kit K2 Power series composed of a pair of 165mm woofers and a pair of 80mm midrange with Kevlar cone, pair of tweeters, pair of TKMX tweeters with inverted dome and dedicated crossovers. Rated power 100W RMS, speaker grilles included in the package.

Focal ES 165 KX3 system features

The speakers of the K2 Power line are equipped with Kevlar cones that incorporate all the ideal qualities for excellent sound reproduction, they are light but rigid and with excellent damping to offer dynamic sound and perfect definition. The cones are fixed to the frame by means of TMD suspensions whose exclusive design removes unwanted resonances and reduces distortion effects.

The two inverted dome tweeters TKM are composed of aramidic fibers. Their exclusive "M" profile is designed to control dome deformation and reproduce high frequencies precisely up to 22 kHz. The frames have been redesigned to make them more robust and more compact, their depth has been reduced as much as possible to 74 mm (3"). These tweeters are equipped with built-in crossover.

Every component of the K2 Power speakers is the result of long acoustic research to increase power and precision performance.

KEVLAR® cone precision and dynamics

The K2 Power Kevlar® cone, a unique Made In Focal product, is second to none to this day. Composed of an ultra-lightweight expanded sandwich structure, which combines a thin layer of Kevlar® aramidic fibers and a fiberglass layer.

"M" shaped tweeter for precise and soft highs

The new K2 Power TKMX tweeter features an exclusive "M" shaped structure. This new generation inverted dome tweeter in aramid fiber provides high precision, and its combination with the "push-pull" motor with IAL2 technology increases the frequency response extension and provides extraordinary harmonic balance.

TMD suspensions goodbye to distortions

Initially developed for high fidelity speakers, the TMD suspension (Tuned Mass Damper) features a special structure designed to control unwanted resonances and drastically reduce harmonic distortion caused by the stress the cone is subjected to. This patented technology provides a well-defined midrange reproduction.

"Radial VC" cooling system for greater SPL

The new radial VC cooling system for speaker coils expels hot air from the coil to the bottom of the magnet through 6 holes. This improves temperature control on the coil, limiting the effects of thermal compression and improving reliability. This greatly increases speaker efficiency. Furthermore, it improves dynamics and produces more powerful sound.

Technical specifications Focal ES 165 KX3

Woofer diameter 165 mm (6-1/2″)

Voice coil diameter 40 mm (1-9/16")

Voice coil height 16.5 mm (0-2/23″)

Midrange diameter 80 mm (3″)

Sandwich cone

Tuned Mass Damper (TMD) suspensions

TKM tweeter ("M" profile inverted dome)

Adjustable tweeter +3; 0; -3 dB/oct

Crossover 6-12/12/12dB (3.5kHz)

Maximum power 240 W

Rated power 120 W RMS

Sensitivity (2.83V/1m) 93 dB

Frequency response 45Hz - 22 kHz

Impedance 4 Ω

Grilles included in the package

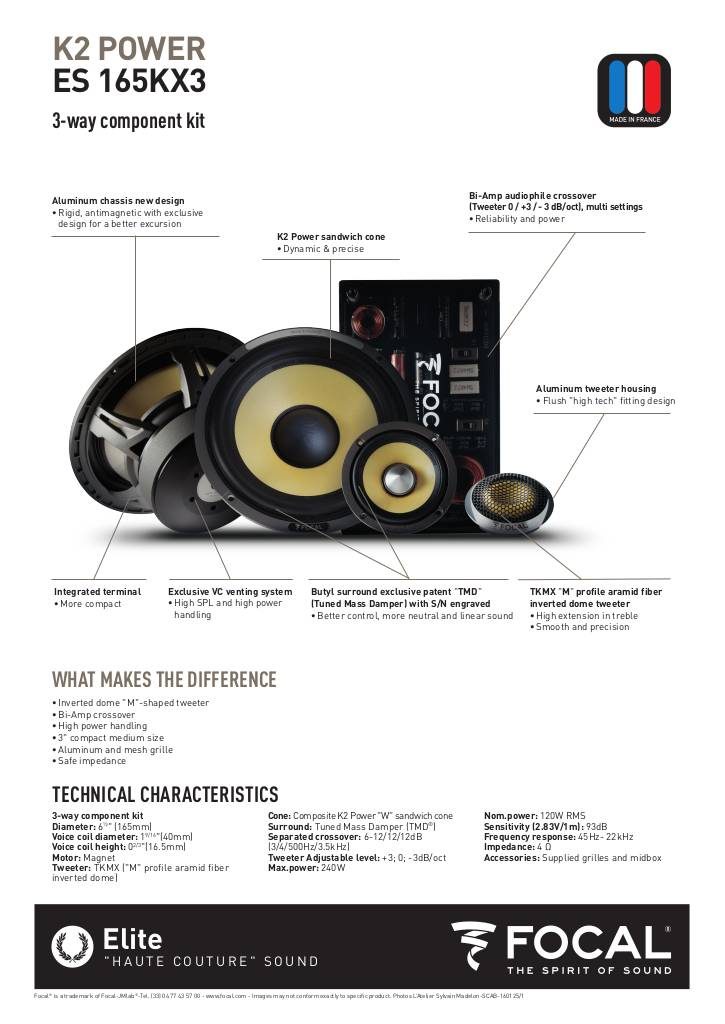

Scheda tecnica

20160428152500-fp-k2power-es165kx3-gb.pdf

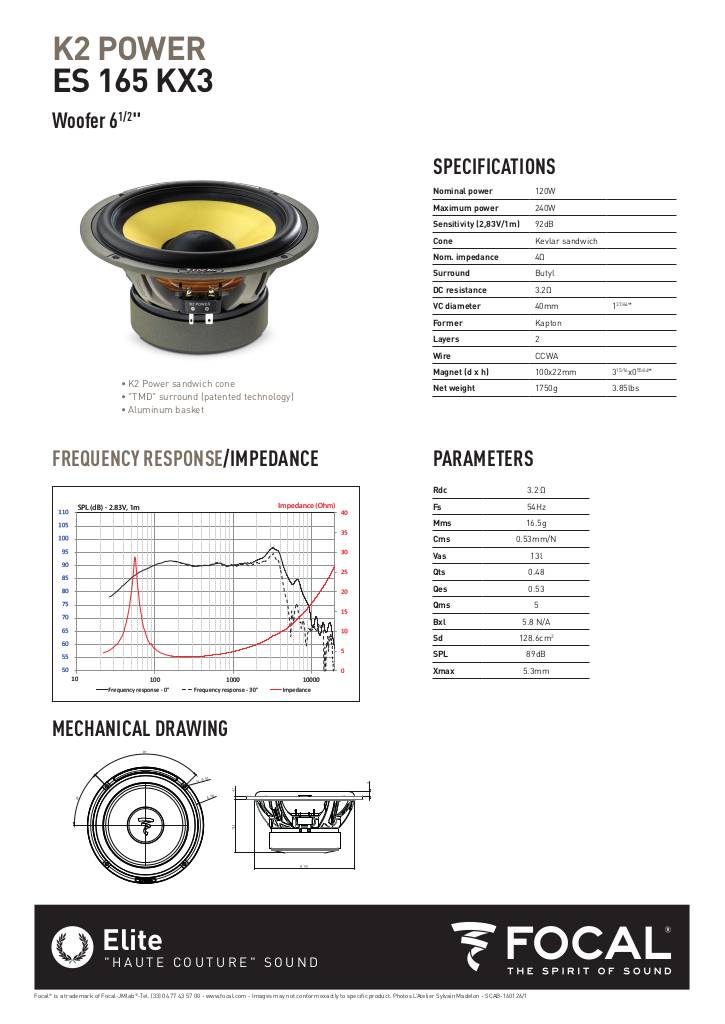

Caratteristiche woofer

20160428152500-ft-k2power-es165kx3-woofer.pdf

2x Woofer 165 mm 2x Midrange 80 mm 2x Tweeter TKMX 2x Crossover
