ES165KX2 16.5 cm 2-way kit 2 Ohm

Focal

Discontinued

Your price:
€ 729,00
Price per single item (VAT included)
Type
2-way separate kit
Frequency Response
55 - 22.000 Hertz
Woofer Size
165 mm
MAX Power
240 Watt
RMS Power
120 Watt
Sensitivity
92.5 dB
Impedance
2 Ohm
Woofer Material
Cono Kevlar
Tweeter Material
Cupola in fibra

Focal ES 165 KX2 two-way kit K2 Power series composed of a pair of 165mm woofers with Kevlar cone, pair of tweeters, pair of TKMX tweeters with inverted dome and dedicated crossovers. Nominal power 100W RMS, speaker grilles included in the package.

Thanks to its excellent power handling, the ES 165 KX2 kit is the reference product of the K2 Power range, and it also won the hearts of experts when it was officially unveiled at CES in Las Vegas, receiving the 2016 CES Innovation award.

Focal ES 165 KX2 system characteristics

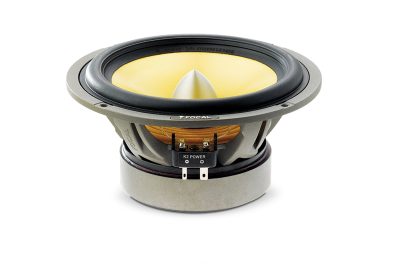

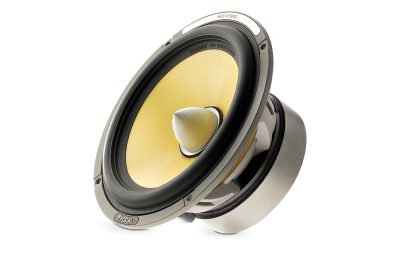

The speakers in the K2 Power line are equipped with Kevlar cones that incorporate all the ideal qualities for excellent sound reproduction, they are light but rigid and with excellent damping to provide dynamic sound and perfect definition. The cones are attached to the frame by TMD suspensions whose exclusive design removes unwanted resonances and reduces the effects of distortion.

The two inverted dome tweeters TKM are composed of aramidic fibers. Their exclusive "M" profile is designed to control dome deformation and reproduce high frequencies up to 22 kHz with precision. The frames have been redesigned to make them more robust and more compact, their depth has been reduced as much as possible to 74 mm (3"). These tweeters are equipped with built-in crossover.

Every component of the K2 Power speakers is the result of extensive acoustic research to increase power performance and precision.

KEVLAR® cone precision and dynamics

The K2 Power Kevlar® cone, a unique Made In Focal product, is today second to none. Composed of an ultra-light expanded sandwich structure, which combines a thin layer of Kevlar® aramidic fibers and a fiberglass layer.

"M" shaped tweeter for precise and soft highs

The new K2 Power TKMX tweeter is equipped with an exclusive "M" shaped structure. This new generation aramid inverted dome tweeter provides high precision, and its combination with the "push-pull" motor with IAL2 technology increases the frequency response extension and provides extraordinary harmonic balance.

TMD suspensions goodbye to distortions

Initially developed for high fidelity speakers, the TMD suspension (Tuned Mass Damper) features a special structure designed to control unwanted resonances and drastically reduce harmonic distortion caused by the stress to which the cone is subject. This patented technology provides well-defined midrange reproduction.

"Radial VC" cooling system for greater SPL

The new radial VC cooling system for speaker coils expels hot air from the coil to the bottom of the magnet through 6 holes. This improves temperature control on the coil, limiting the effects of thermal compression and improving reliability. This greatly increases speaker efficiency. In addition, it improves dynamics and produces more powerful sound.

Technical specifications Focal ES 165 KX2

Diameter 165 mm (6-1/2″)

Voice coil diameter 40 mm (1-9/16")

Voice coil height 16.5 mm (0-2/23″)

Sandwich cone

Tuned Mass Damper (TMD) suspensions

TKM tweeter ("M" profile inverted dome)

Adjustable tweeter +3; 0; -3 dB/oct

Crossover 6-12/12dB (3.5kHz)

Maximum power 240 W

Nominal power 120 W RMS

Sensitivity (2.83V/1m) 92.5 dB

Frequency response 55Hz - 22 kHz

Impedance 2 Ω

Grilles included in the package

Scheda tecnica

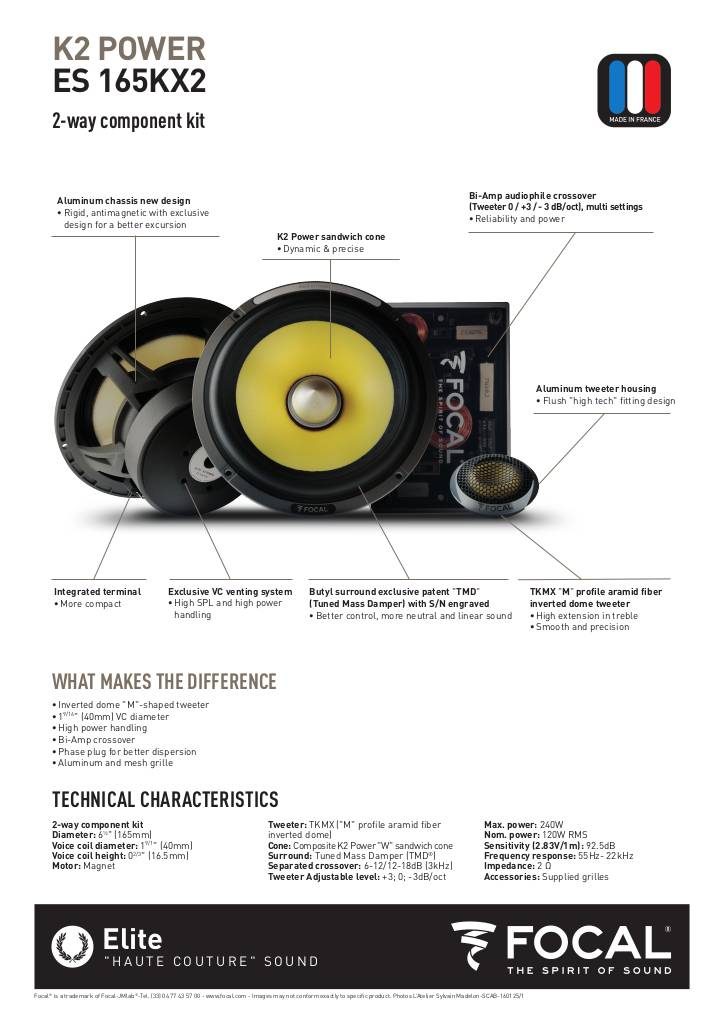

20160428145741-fp-k2power-es165kx2-gb.pdf

Caratteristiche woofer

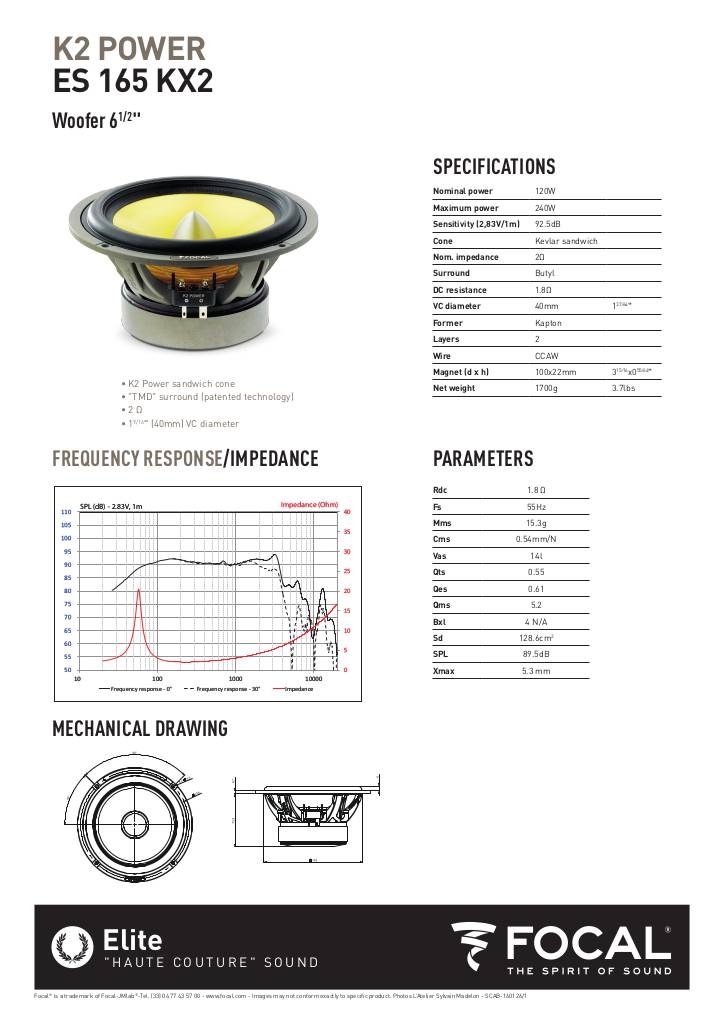

20160428145741-ft-k2power-es165kx2.pdf

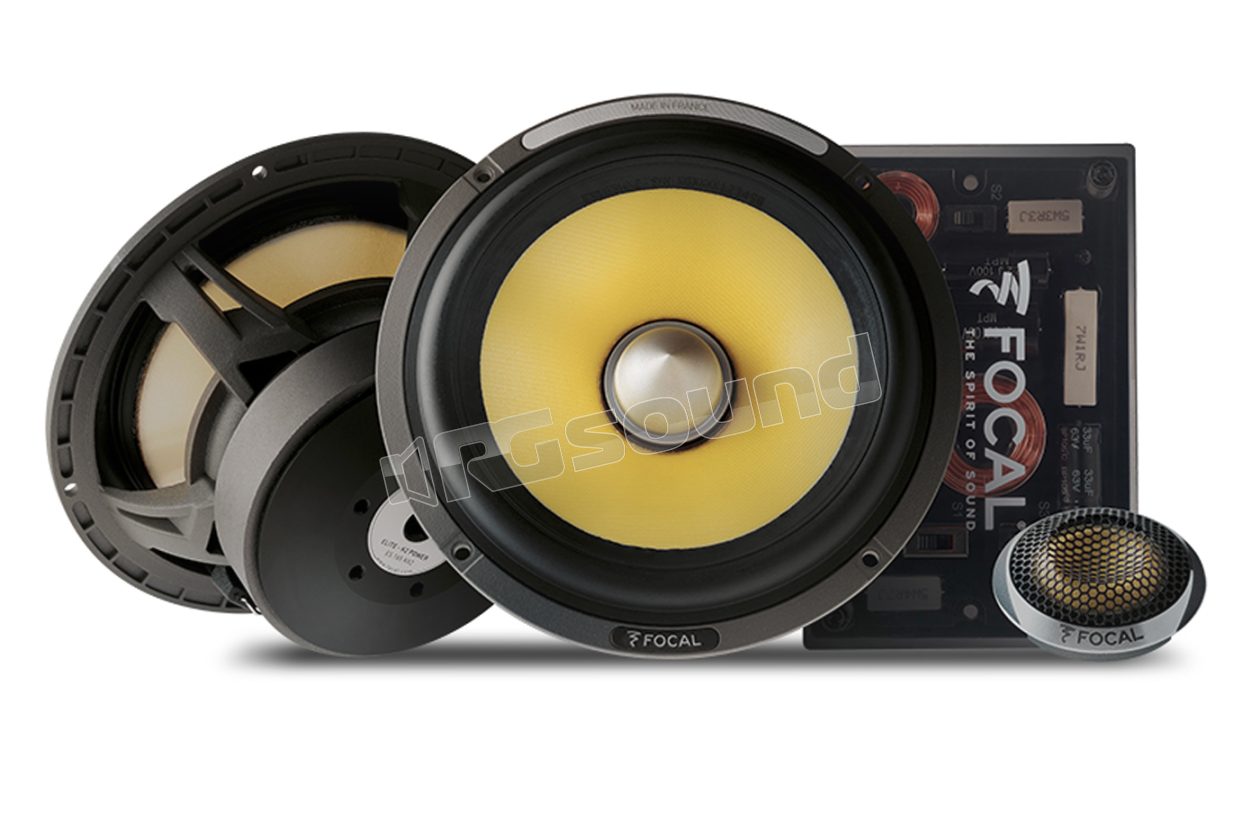

2x Woofer 165 mm 2x Tweeter TKMX 2x Crossover
