ES165K2 16.5 cm 2-way kit 2 Ohm

Focal

Discontinued

Your price:
€ 589,10
Price per single item (VAT included)
Type
2-way separate kit
Frequency Response
60 - 22.000 Hertz
Woofer Size
165 mm
MAX Power
200 Watt
RMS Power
100 Watt
Sensitivity
92.8 dB
Impedance
2 Ohm
Woofer Material
Cono Kevlar
Tweeter Material
Cupola in fibra

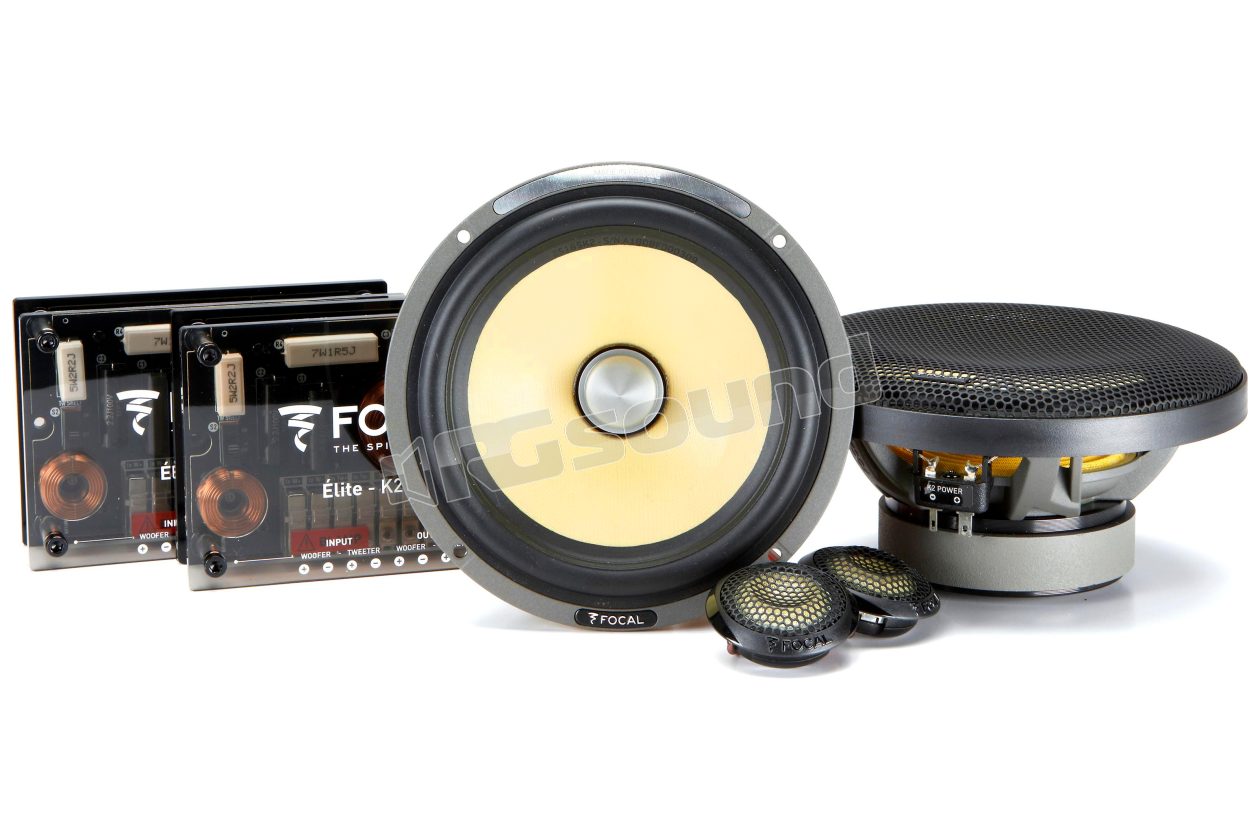

Focal ES 165 K2 two-way K2 Power series kit composed of a pair of 165mm woofers with Kevlar cone, pair of tweeters, pair of inverted dome tweeters and dedicated crossovers. Rated power 100W RMS, speaker grilles included in the package.

Focal ES 165 K2 system features

The speakers of the K2 Power line are equipped with Kevlar cones that incorporate all the ideal qualities for excellent sound reproduction, they are lightweight but rigid and with excellent damping to offer dynamic sound and perfect definition. The cones are fixed to the frame by means of TMD suspensions whose exclusive design removes unwanted resonances and reduces the effects of distortion.

The two inverted dome tweeters TKM are composed of aramid fibers. Their exclusive "M" profile is designed to control dome deformation and accurately reproduce high frequencies up to 22 kHz. The frames have been redesigned to make them more robust and more compact, their depth has been reduced as much as possible to 74 mm (3"). These tweeters are equipped with built-in crossover.

Each component of the K2 Power speakers is the result of long acoustic research to increase power and precision performance.

KEVLAR® cone precision and dynamics

The K2 Power Kevlar® cone, a unique Made In Focal product, is to this day second to none. Composed of an expanded sandwich structure, ultra-lightweight, which combines a thin layer of Kevlar® aramid fibers and a layer of fiberglass.

"M" shaped tweeter for precise and soft highs

The new K2 Power TKM tweeter is equipped with an exclusive "M" shaped structure. This new generation inverted dome tweeter in aramid fiber provides high precision, and its combination with the "push-pull" motor with IAL2 technology increases the frequency response extension and provides extraordinary harmonic balance.

TMD suspensions goodbye to distortions

Initially developed for high fidelity speakers, the TMD suspension (Tuned Mass Damper) features a special structure designed to control unwanted resonances and drastically reduce harmonic distortion caused by the stress the cone is subjected to. This patented technology provides well-defined midrange reproduction.

"Radial VC" cooling system for greater SPL

The new radial VC cooling system for speaker coils expels hot air from the coil to the bottom of the magnet through 6 holes. This improves temperature control on the coil, limiting the effects of thermal compression and improving reliability. This significantly increases speaker efficiency. Additionally, it improves dynamics and produces more powerful sound.

Technical specificationsFocalES 165 K2

2-way component kit
Diameter: 6½" (165 mm)
Mobile coil diameter: 1 1/4" (32mm)
Coil height: 05/8" (15mm)
Motor: Magnet
Tweeter: TKM (aramid fiber with "M" profile) inverted dome
Cone: sandwich cone Composite K2 Power "W"
Surround: tuned mass damper (TMD®)
Separate crossover: 6-12/12dB (3.5kHz)
Tweeter adjustable level: +3; 0; -3dB/oct
Maximum power: 200 W
Nom. power: 100 W RMS
Sensitivity (2.83 V/1 m): 92.8 dB
Frequency response: 60Hz- 22kHz
Impedance: 2 Ω
Accessories: Grilles included

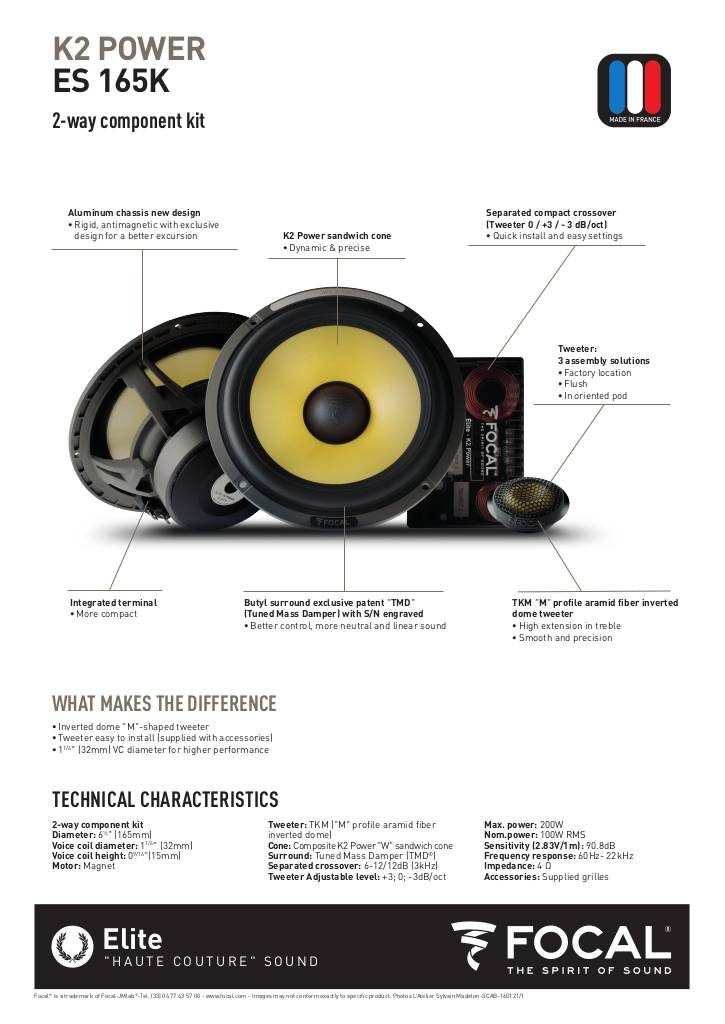

Scheda tecnica

20160428120944-fp-k2power-es165k-gb.pdf

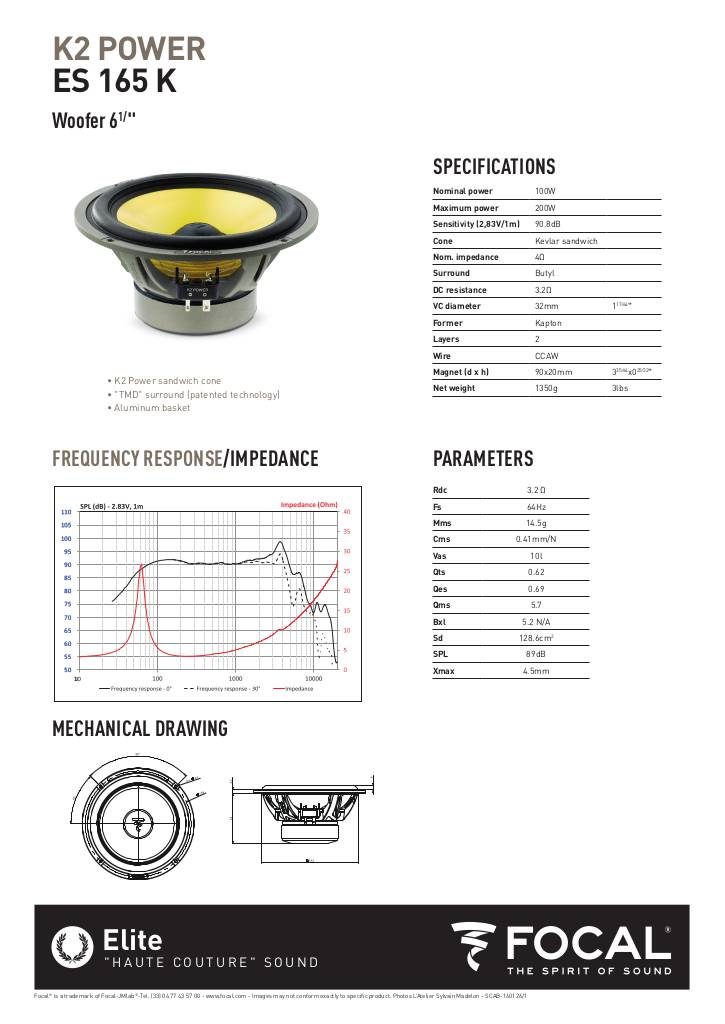

Caratteristiche woofer

20160428120944-ft-k2power-es165k.pdf

2x Woofer 165 mm 2x Tweeter TKMX 2x Crossover
