ES130K 13 cm two-way kit

Focal

Discontinued

Your price:
€ 380,00
Price per single item (VAT included)

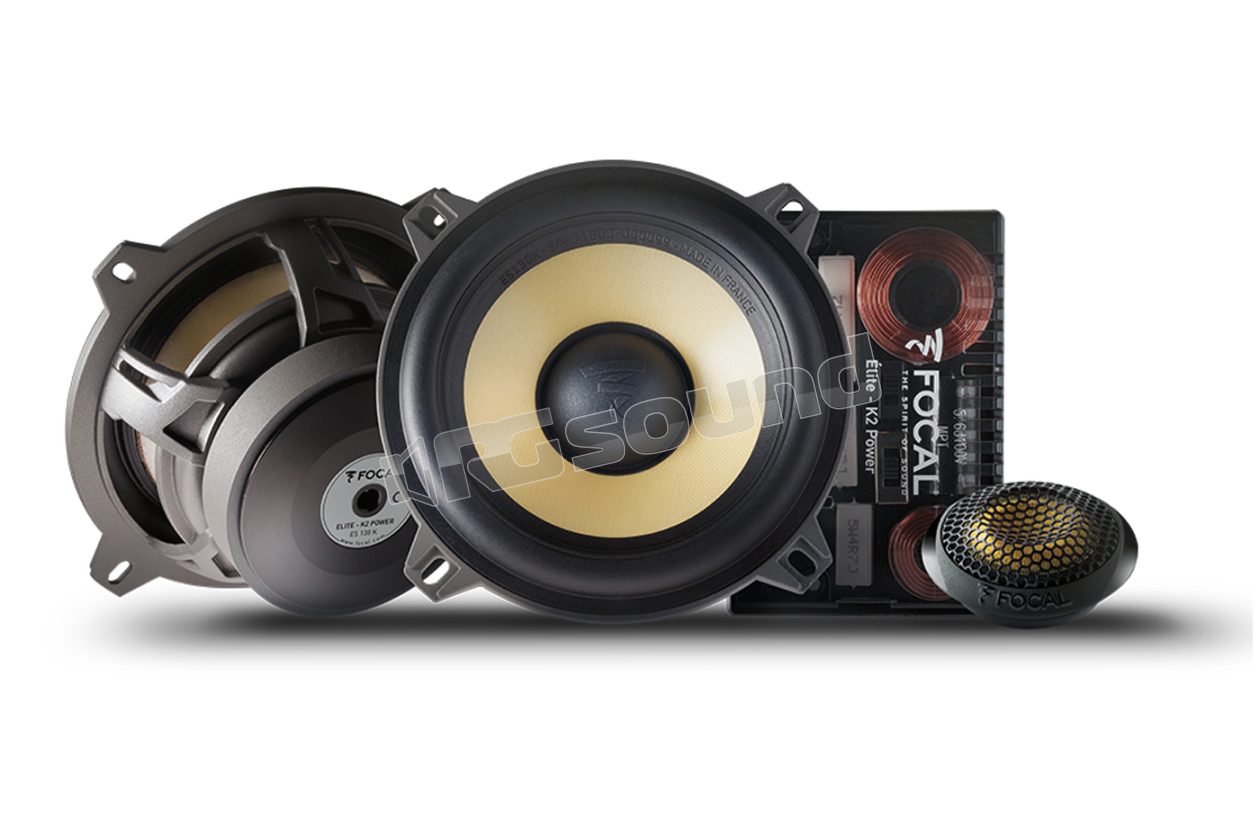

Focal ES 130 K two-way kit series K2 Power composed of a pair of 130mm woofers with Kevlar cone, pair of tweeters, pair of inverted dome tweeters and dedicated crossovers. Nominal power 80W RMS, speaker grilles included in the package.

Focal ES 130 K system features

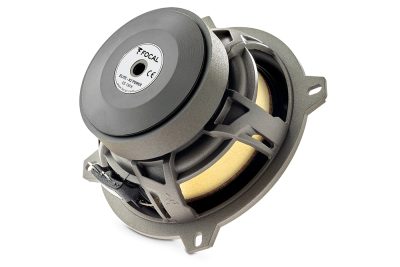

The speakers in the K2 Power line are equipped with Kevlar cones that incorporate all the ideal qualities for excellent sound reproduction, they are lightweight yet rigid and with excellent damping to deliver dynamic sound and perfect definition. The cones are fixed to the frame through TMD suspensions whose exclusive design removes unwanted resonances and reduces distortion effects.

The two TKM inverted dome tweeters are composed of aramid fibers. Their exclusive "M" profile is designed to control dome deformation and reproduce high frequencies with precision up to 22 kHz. The frames have been redesigned to make them more robust and more compact, their depth has been reduced as much as possible to 74 mm (3"). These tweeters are equipped with built-in crossover.

Every component of the K2 Power speakers is the result of extensive acoustic research to increase power and precision performance.

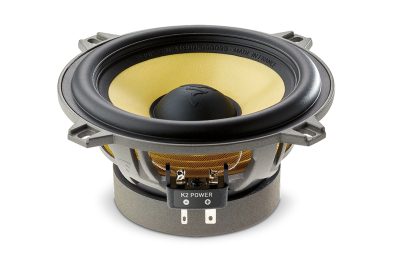

KEVLAR® cone precision and dynamics

The K2 Power Kevlar® cone, a unique Focal Made In product, is to this day second to none. Composed of an ultra-lightweight sandwich expanded structure, which combines a thin layer of Kevlar® aramid fibers and a fiberglass layer.

"M" tweeter shape for precise and soft highs

The new K2 Power TKM tweeter features an exclusive "M" shaped structure. This next-generation aramid fiber inverted dome tweeter provides high precision, and its combination with the "push-pull" motor with IAL2 technology increases the extension of the frequency response and provides an extraordinary harmonic balance.

TMD suspensions goodbye to distortions

Initially developed for high fidelity speakers, the TMD suspension (Tuned Mass Damper) features a special structure designed to control unwanted resonances and drastically reduce harmonic distortion caused by the stress to which the cone is subjected. This patented technology provides well-defined midrange reproduction.

"Radial VC" cooling system for greater SPL

The new radial VC cooling system for speaker coils expels hot air from the coil towards the bottom of the magnet through 6 holes. This improves temperature control on the coil, limiting the effects of thermal compression and improving reliability. This greatly increases speaker efficiency. Furthermore, it improves dynamics and produces more powerful sound.

Technical specifications Focal ES 130 K

Diameter 130 mm (5″)

Voice coil diameter 25 mm (1")

Voice coil height 12 mm (0-1/2″)

Sandwich cone

Tuned Mass Damper (TMD) suspensions

TKM tweeter ("M" profile inverted dome)

Adjustable tweeter +3; 0; -3 dB/oct

Crossover 6-12/12dB (3.5kHz)

Maximum power 160 W

Nominal power 80 W RMS

Sensitivity (2.83V/1m) 90 dB

Frequency response 65Hz - 22 kHz

Impedance 4 Ω

Grilles included in the package

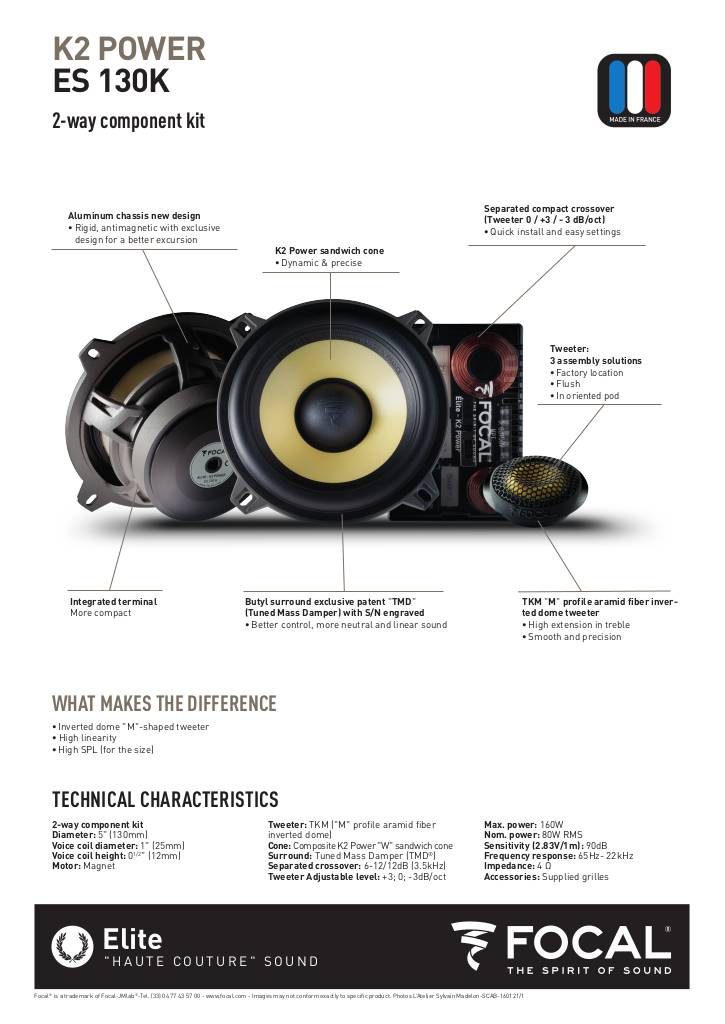

Scheda tecnica

20160428123500-fp-k2power-es130k-gb.pdf

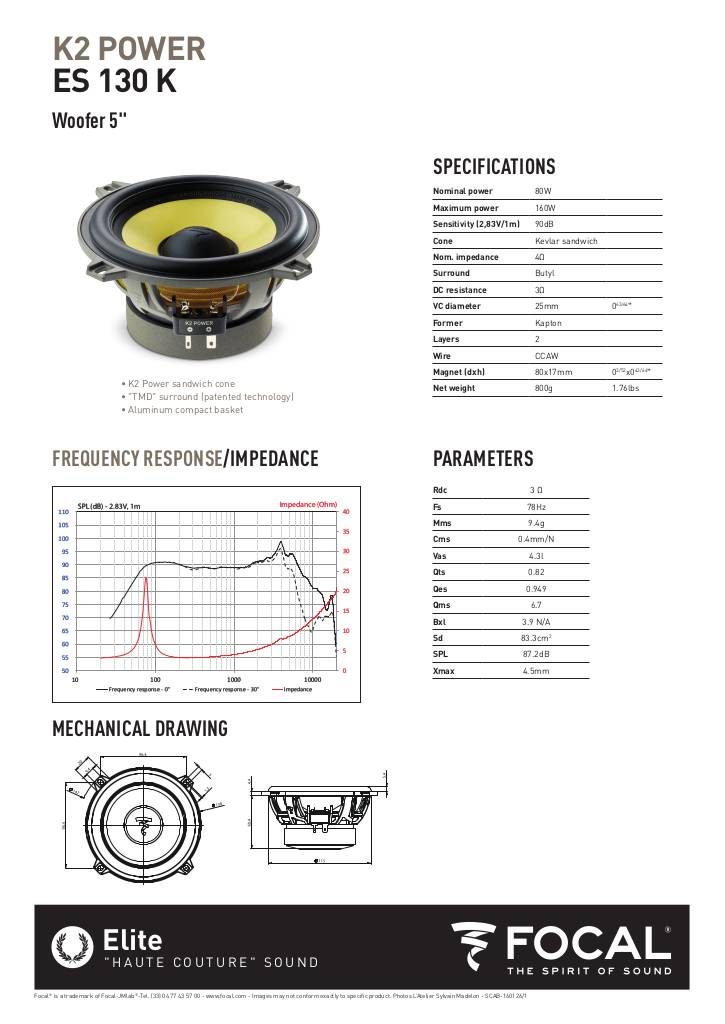

Caratteristiche woofer

20160428123500-ft-k2power-es130k.pdf
Discontinued
