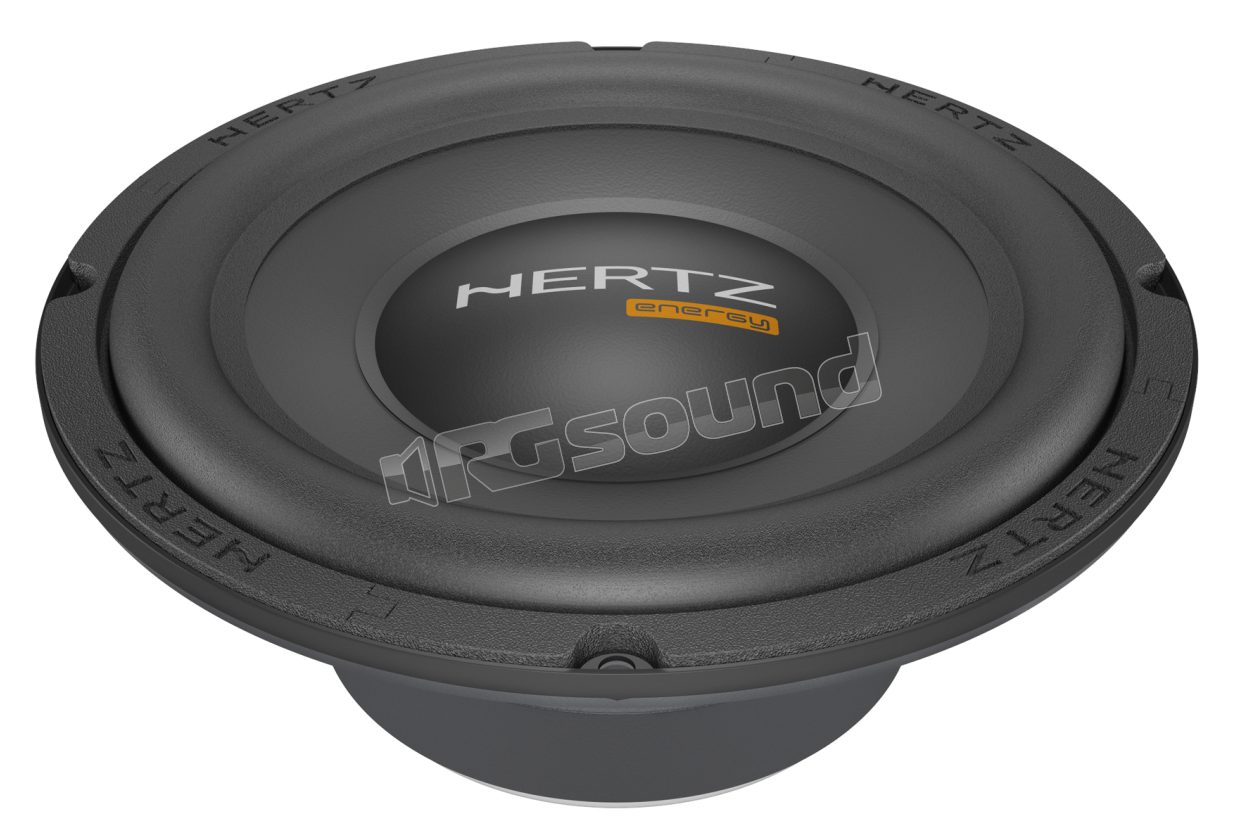

ES F20.5 Ultra-Slim Sub

Hertz

Discontinued

Your price:
€ 89,00
Price per single item (VAT included)

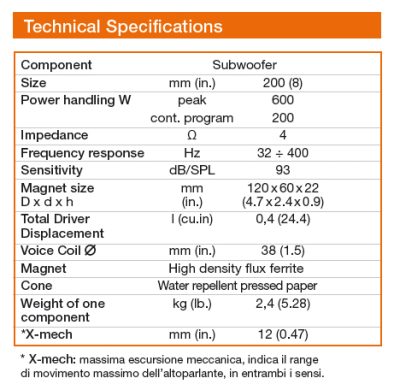

Type
Subwoofer
Speaker Size
200 mm
MAX Power
600 Watt
RMS Power
200 Watt
Frequency Response
32 - 400 Hertz
Sensitivity
93 dB
Impedance
4 Ohm
Weight
2,4 Kg
Installation Depth
72 mm
Woofer Material
Cellulosa trattata idroripellente

ES F20 - 200mm Subwoofer with reduced height (only 85mm) - 200W RMS Power and Max 600W

Subwoofer Energy ES F20.5 is the ideal solution for those looking for a subwoofer with a reduced footprint with powerful and engaging sound.

The Ultra Flat profile occupies only 85 mm at its maximum height, for the 200 mm sub, with a maximum power of 600 W.

The design and construction of this subwoofer has been carefully crafted in every detail to ensure high mechanical quality, efficient thermal capacity, for the benefit of explosive dynamics and power handling. Robust ferrite magnet group, cellulose membrane, ventilated surround support and copper coil wound on aluminum support are just some of the peculiarities of this Energy Flat subwoofer.

The design of the Energy subwoofer ES F20.5 is linear and massive, emphasized by the ultra-flat profile and the Hertz logo on the dust cap, to aesthetically adapt to any installation.

  • 1. Ultra Flat profile, for maximum installation flexibility.
  • 2. Imposing magnet group, for perfect control in conditions of high power and large excursions.
  • 3. Pressed paper cone with water-repellent treatment.
  • 4. Copper coil, wound on an aluminum support, for exceptional thermal and mechanical durability.
  • 5. Air decompression system realized with holes under the dust cap, for perfect symmetry at high excursions and better heat dissipation.
  • 6. Wide-wave spider, in woven and resinous fibers, to ensure constant parameters and reliability over time.
  • 7. High current terminals tinned.
  • 8. Silver-plated braids, for maximum reliability and conductivity.
  • 9. Basket and motor group coupled with a special damping epoxy glue.
  • 10. Polar plates with high heat dissipation and high magnetic permeability, to provide continuous and constant flux.

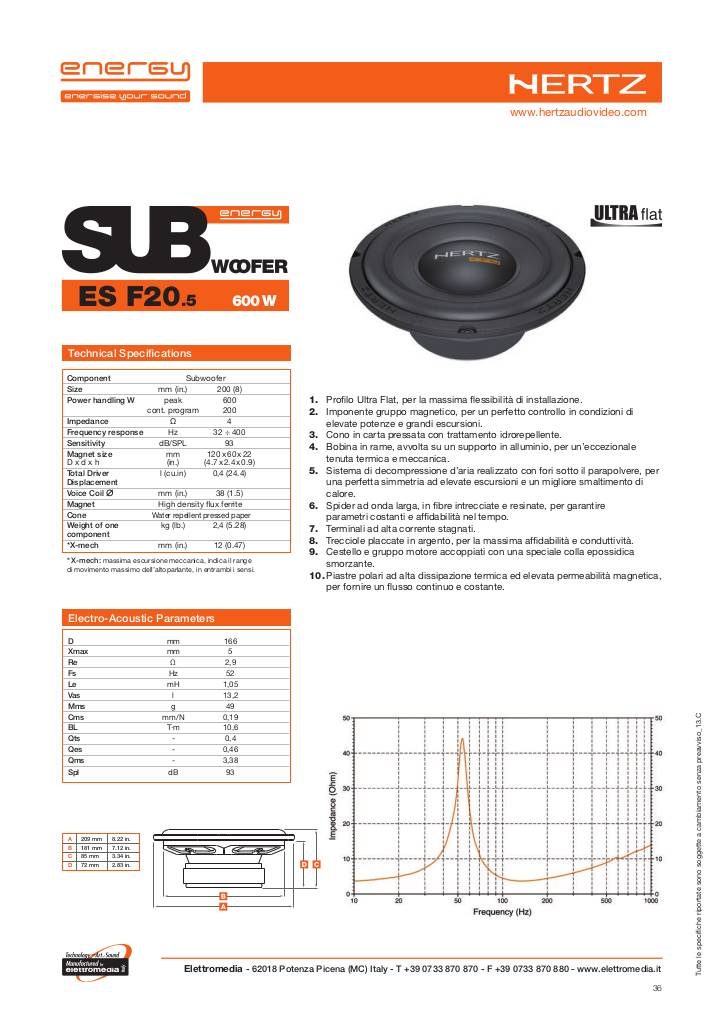

Scheda Tecnica

20130712165645-060604-hertz-cartellastampa-energy-13c-150dpi-36.pdf

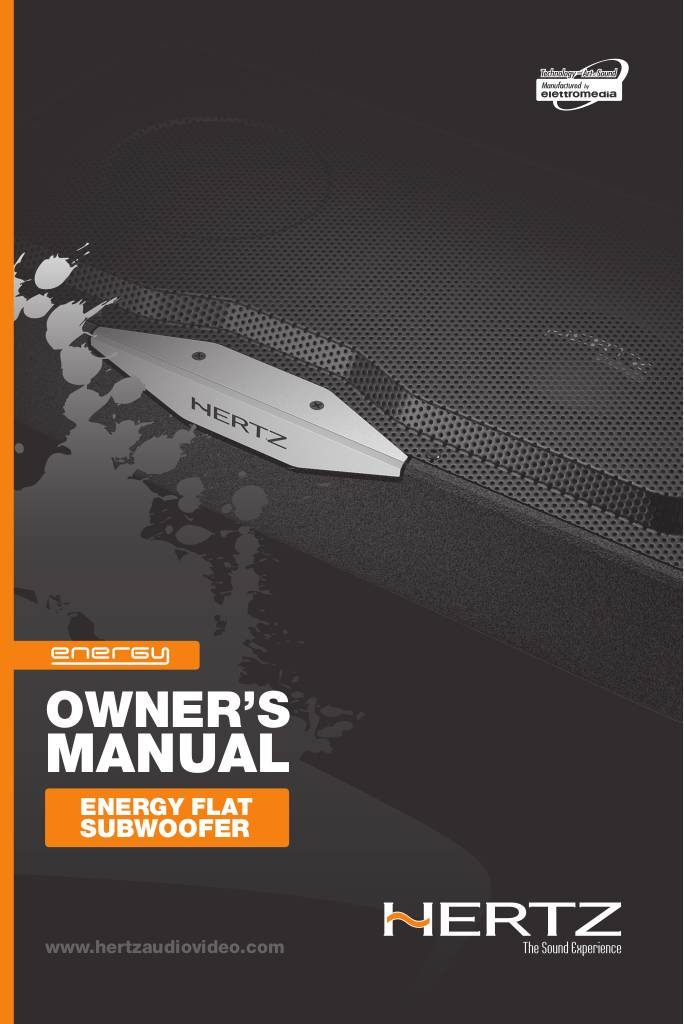

Manuale

20150328143953-hz-energy-5-subflat-ownersmanual.pdf
Discontinued
