ES 380

Hertz

Discontinued

Your price:
€ 171,50
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
380 mm
MAX Power
900 Watt
RMS Power
450 Watt
Frequency Response
20 - 200 Hertz
Sensitivity
93,7 dB
Impedance
4 Ohm
Weight
5,95 Kg

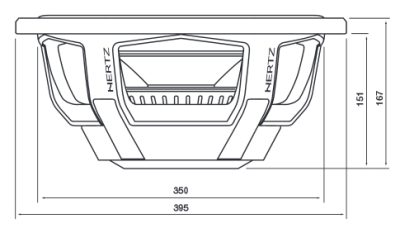

Installation Depth
151 mm
Woofer Material
Water repellent, pressed paper cone

Hertz ES380 Subwoofer 380 mm 4Ω for use in enclosure

The Energy subwoofers have been designed to express maximum performance in reduced-volume enclosures.
Their electroacoustic parameters are optimized for correct operation in any type of enclosure (suspension, bass reflex, bandpass, etc), ensuring extraordinary versatility and high-quality performance.
The use of a long-excursion mobile assembly and double high-flux-density magnet has made it possible to create components capable of withstanding high power, with extraordinary musicality combined with explosive dynamics.
Scratch-resistant paint finishes and a butyl rubber ring offer reliable protection together with a modern and aggressive look.

ES 380 Features:

  • High thermal dissipation and magnetic permeability plates, providing constant, even flux.
  • Large double magnet, for perfect control under high power, high excursion conditions.
  • Copper voice coil, wound on aluminium former, for startling thermal and mechanical capacity.
  • Back plate vent holes, for very good thermal dissipation.
  • Back Vented Spider support, for perfect symmetry under high excursion and thermal dissipation.
  • Butyl rubber gasket provides ideal coupling to the mounting surface, damping basket resonance.
  • Butyl rubber magnet ring provides protection against abrasions.
  • Internally reinforced basket, protected from abrasions by high resistance paint.
  • High current, tin-plated terminals.
  • Silver plated silicone shielded lead wires for maximum reliability and conductivity.
  • Basket and motor coupled and damped through special epoxy glue.
  • Wide-wave, resin-bonded fibre spider for mechanical reliability and consistent parameters.
  • High density Foam surround, for linear movement even under high excursion conditions.
  • Water-repellent pressed paper cone.

scheda tecnica - specifiche - grafico - progetti Box

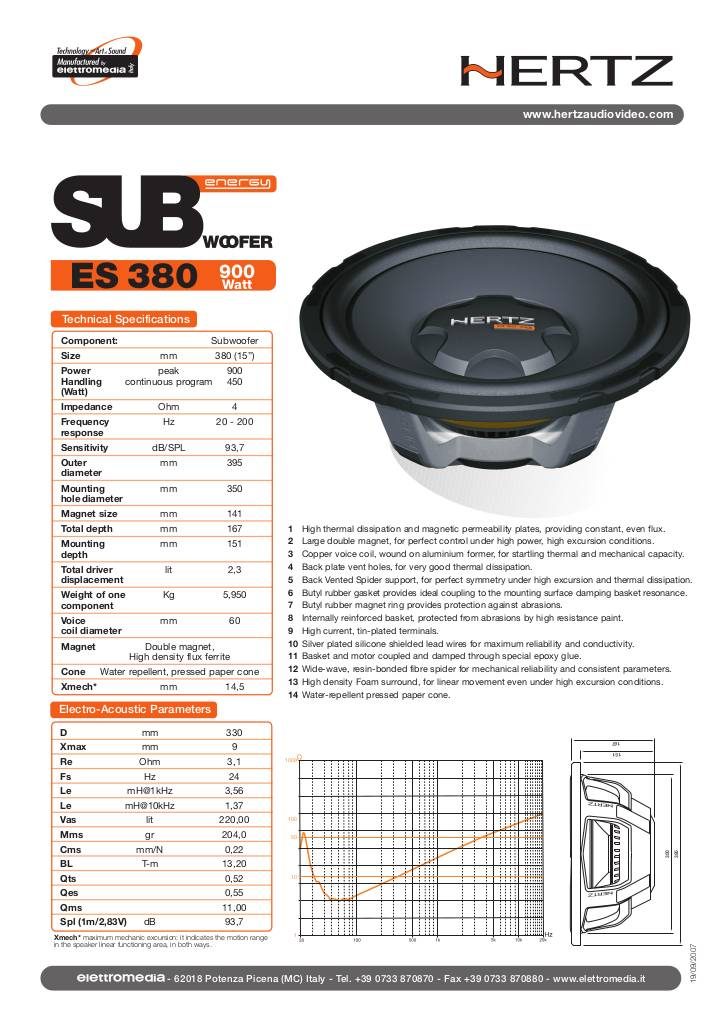

20071103014014-es380.pdf
