ES 380.5

Hertz

Discontinued

Your price:
€ 162,00
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
380 mm
MAX Power
1350 Watt
RMS Power
450 Watt
Frequency Response
20 - 200 Hertz
Sensitivity
94 dB
Impedance
4 Ohm
Weight
6 Kg
Installation Depth
151 mm
Woofer Material
Cellulosa pressata idrorepellente

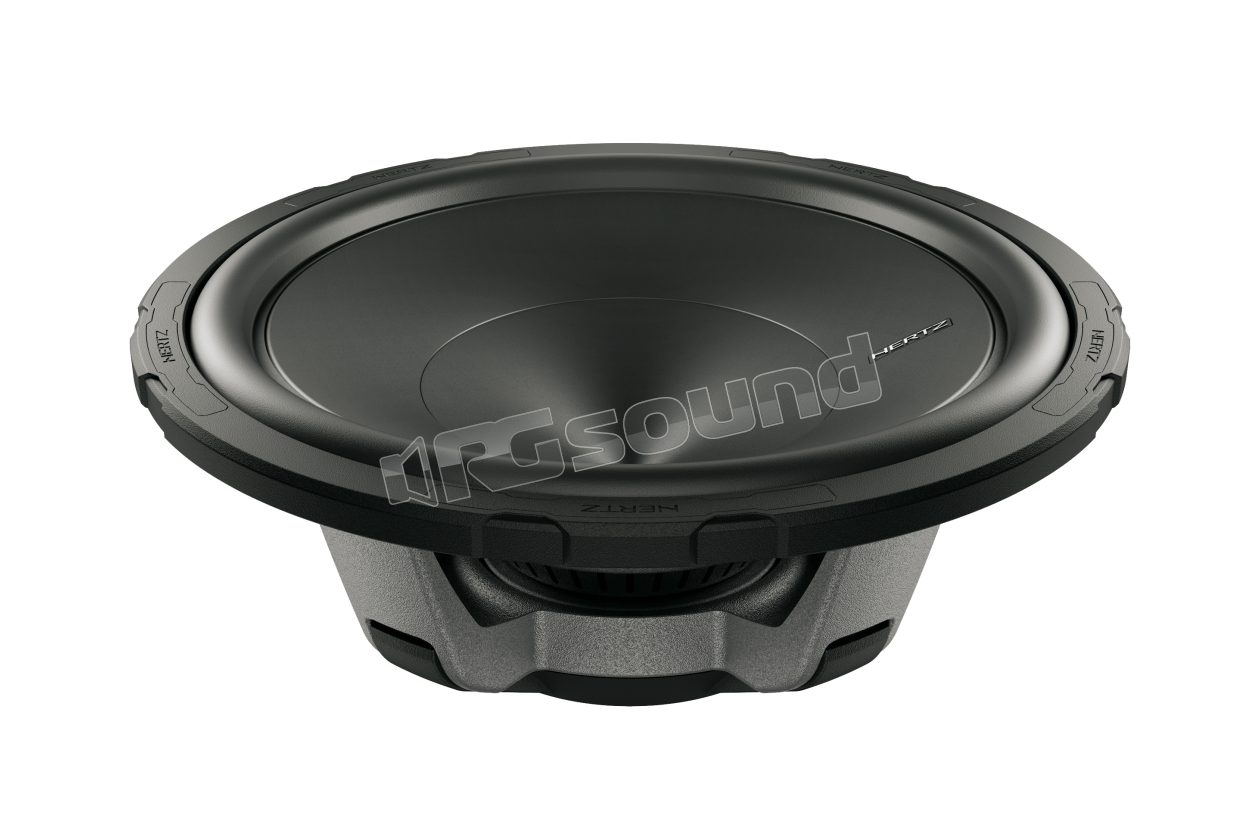

ES 380.5 Subwoofer new Energy 380 mm 4Ω series - RMS Power 450 W and Max 1350 W

The Energy.5 subwoofers have been designed to express maximum performance in reduced volume enclosures.
Their electroacoustic parameters are optimized for correct operation in any type of enclosure (sealed enclosure, bass reflex, bandpass, etc), ensuring extraordinary versatility and highest quality performance.


The use of a long-throw mobile assembly and double magnet with high magnetic flux intensity has made it possible to create components capable of handling high power, with extraordinary musicality combined with explosive dynamics.
The scratch-resistant paint finishes and a butyl rubber ring offer reliable protection together with a modern and aggressive look.


FEATURES

  • 1. V-cone® technology with pressed cellulose membrane and water-repellent treatment, for reduction of moving mass and increase of sensitivity.
  • 2. Spider with wide-wave geometry with excellent mechanical resistance to impulsive stress, made of resin-impregnated interwoven fibers for consistency of parameters over time.
  • 3. High-density pressed polyurethane suspensions, for extreme mechanical and acoustic linearity even at high excursions.
  • 4. Pure copper voice coil, wound on aluminum support, combined with the heat dissipation circuit for the spider support and ventilation holes on the magnet, for exceptional thermal capacity at power peaks.
  • 5. Silvered braid with silicone shielding terminated on tin-plated high-current connectors, for high resistance to mechanical stress and low contact resistance.
  • 6. High magnetic permeability pole plates combined with an oversized magnet, ensure continuous and constant magnetic flux, for perfect control at low frequencies.
  • 7. Gasket and magnet protective shell in butyl rubber, for ideal coupling with the mounting surface and damping of basket resonances.

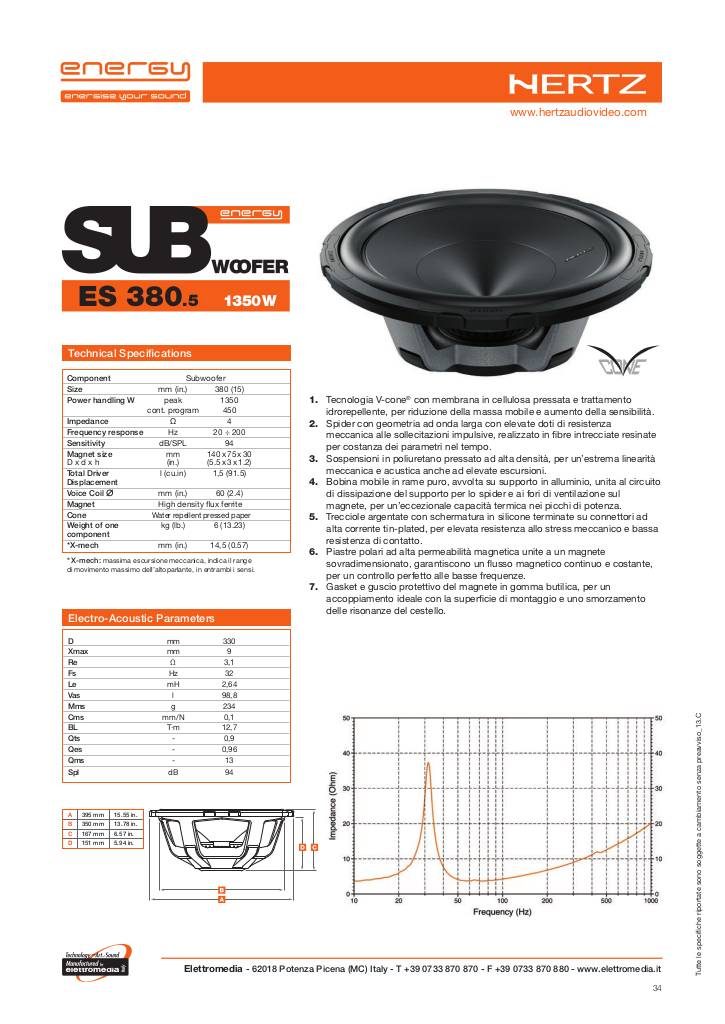

Scheda tecnica

20130712155547-060604-hertz-cartellastampa-energy-13c-150dpi-34.pdf

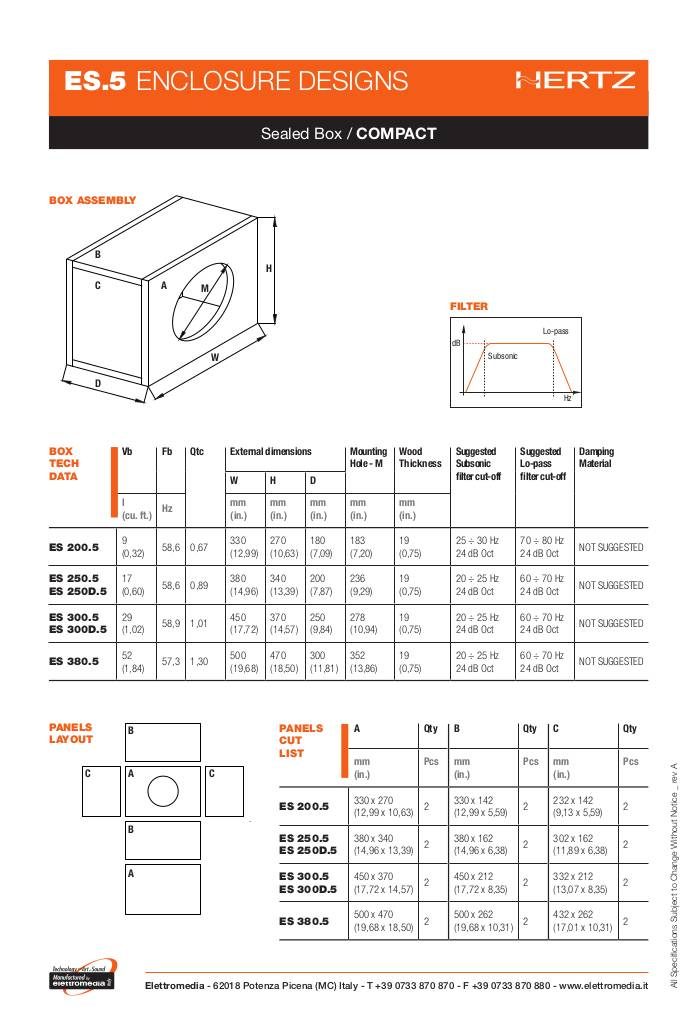

Progetti box

20140722112445-031440-hertz-es-5-sub-enclosure-design-web.pdf
