ES 300 D.5

Hertz

Discontinued

Your price:
€ 135,00
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
300 mm
MAX Power
1050 Watt
RMS Power
350 Watt
Frequency Response
25 - 250 Hertz
Sensitivity
93.5 dB
Impedance
4+4 Ohm
Weight
5,6 Kg
Installation Depth
128 mm
Woofer Material
Cellulosa pressata idrorepellente

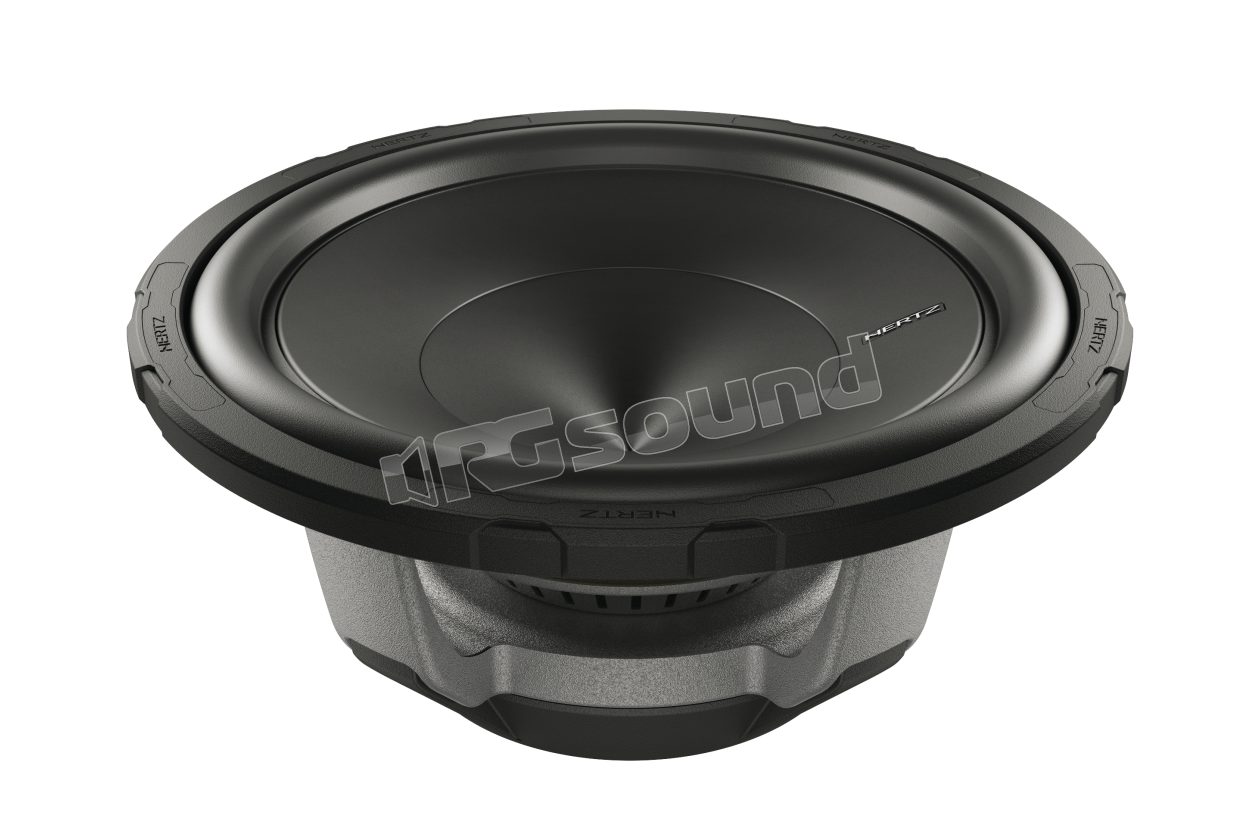

ES 300 D.5 Dual voice coil subwoofer from the new Energy 300 mm 4+4Ω series - RMS Power 350 W and Max 1050 W

The Energy.5 subwoofers have been designed to deliver maximum performance in reduced volume enclosures.
Their electroacoustic parameters are optimized for correct operation in any type of enclosure (sealed, bass reflex, bandpass, etc), ensuring extraordinary versatility and highest quality performance.


The use of a long-throw mobile assembly and a dual magnet with high flux intensity has made it possible to create components capable of handling high power, with extraordinary musicality combined with explosive dynamics.
Scratch-resistant paint finishes and a butyl rubber surround provide reliable protection together with a modern and aggressive look.

ES 300 D.5 subwoofer features

  • 1. V-cone® technology with pressed cellulose cone and water-repellent treatment, for reduced moving mass and increased sensitivity.
  • 2. Spider with wide wave geometry featuring high mechanical resistance to impulsive stress, made of resin-impregnated woven fibers for parameter consistency over time.
  • 3. High-density pressed polyurethane surrounds, for extreme mechanical and acoustic linearity even at high excursions.
  • 4. Pure copper voice coil, wound on aluminum support, combined with the heat dissipation circuit for the spider support and ventilation holes on the magnet, for exceptional thermal capacity at power peaks.
  • 5. Silver-plated braided leads with silicon shielding terminated on high current tin-plated connectors, for high resistance to mechanical stress and low contact resistance.
  • 6. Dual voice coil configuration, for optimization of the power delivered by the amplifier and greater wiring versatility.
  • 7. High magnetic permeability pole plates united with an oversized magnet, ensure continuous and constant magnetic flux, for perfect control at low frequencies.
  • 8. Gasket and protective magnet shell in butyl rubber, for ideal coupling with the mounting surface and damping of basket resonances.

Scheda tecnica

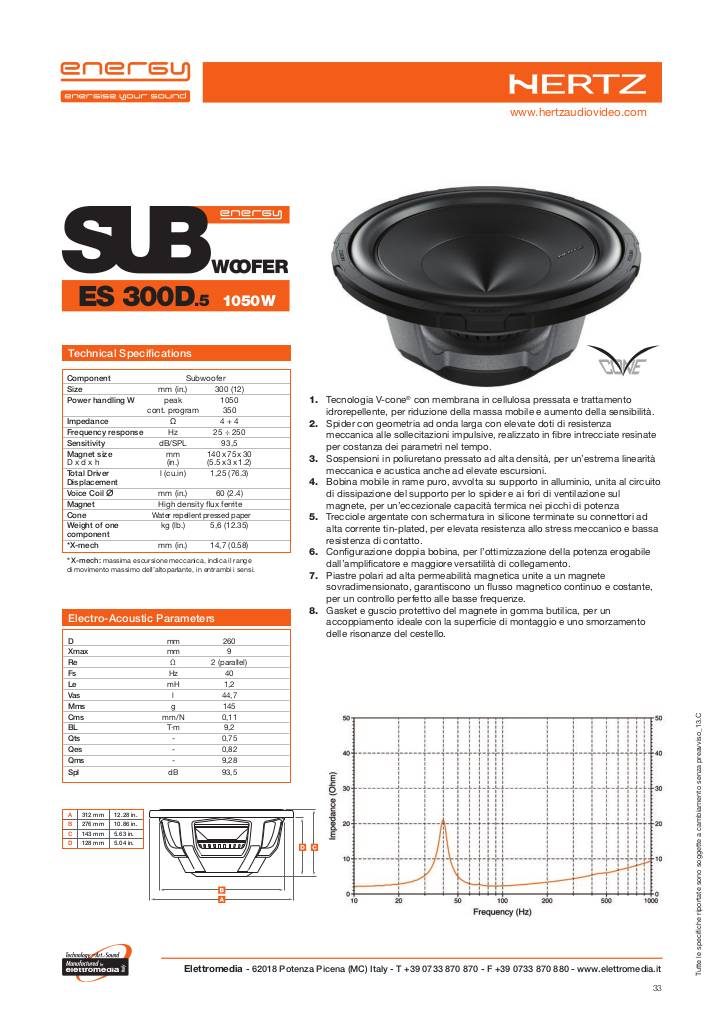

20130712154440-060604-hertz-cartellastampa-energy-13c-150dpi-33.pdf

Manuale e progetti Box

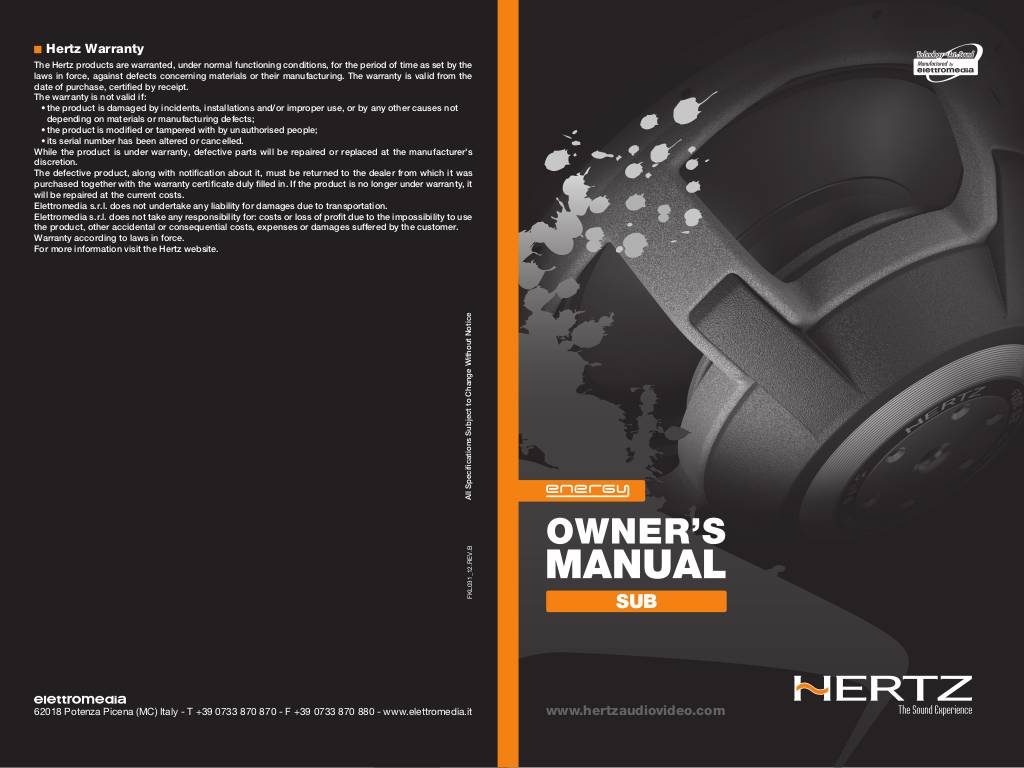

20140128150716-hertz-energysub-ownersmanual.pdf
