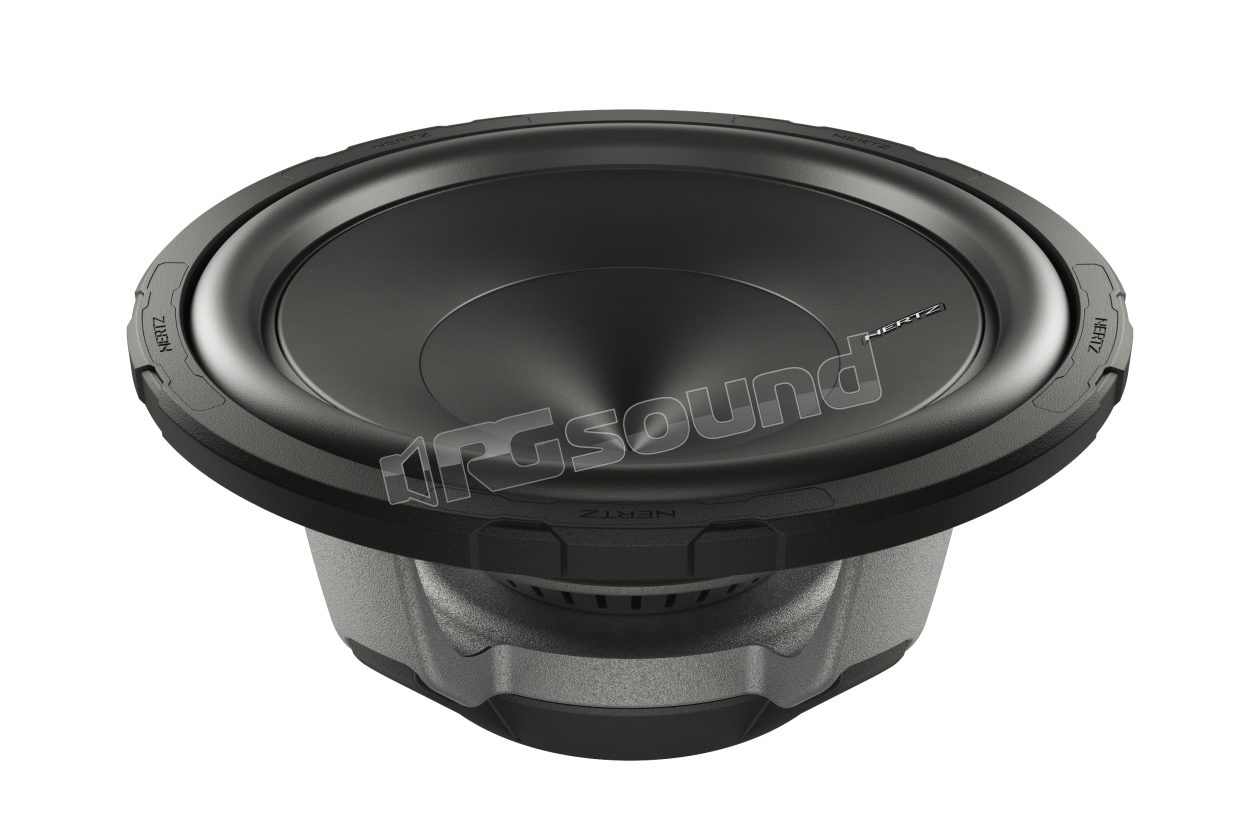

ES 300.5

Hertz

Discontinued

Your price:
€ 134,00
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
300 mm
MAX Power
1050 Watt
RMS Power
350 Watt
Frequency Response
25 - 250 Hertz
Sensitivity
92 dB
Impedance
4 Ohm
Weight
5,6 Kg
Installation Depth
128 mm
Woofer Material
Cellulosa pressata idrorepellente

ES 300.5 Subwoofer new Energy 300 mm 4Ω series - RMS Power 350 W and Max 1050 W

The Energy.5 subwoofers have been designed to express maximum performance in compact volume enclosures.
Their electroacoustic parameters are optimized for correct operation in any type of enclosure (sealed enclosure, bass reflex, bandpass, etc), ensuring extraordinary versatility and highest quality performance.


The use of a long-throw mobile assembly and a dual magnet with high flux intensity has made it possible to create components capable of withstanding high power, with extraordinary musicality combined with explosive dynamics.
Scratch-resistant paint finishes and a butyl rubber ring offer reliable protection along with a modern and aggressive look.


FEATURES

  • 1. V-cone® technology with pressed cellulose membrane and water-repellent treatment, for reduction of mobile mass and increase in sensitivity.
  • 2. Spider with wide wave geometry with high mechanical resistance to impulse stress, made of resin-impregnated woven fibers for parameter consistency over time.
  • 3. Suspensions in high-density pressed polyurethane, for extreme mechanical and acoustic linearity even at high excursions.
  • 4. Pure copper voice coil, wound on aluminum support, combined with the heat dissipation circuit of the spider support and ventilation holes on the magnet, for exceptional thermal capacity at power peaks.
  • 5. Silver-plated braids with silicone shielding terminated on high-current tin-plated connectors, for high resistance to mechanical stress and low contact resistance.
  • 6. Pole plates with high magnetic permeability combined with an oversized magnet, guarantee continuous and constant magnetic flux, for perfect control at low frequencies.
  • 7. Gasket and protective magnet shell in butyl rubber, for ideal coupling with the mounting surface and damping of basket resonances.

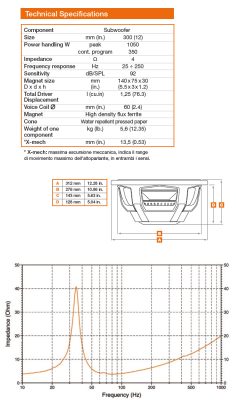

Scheda tecnica

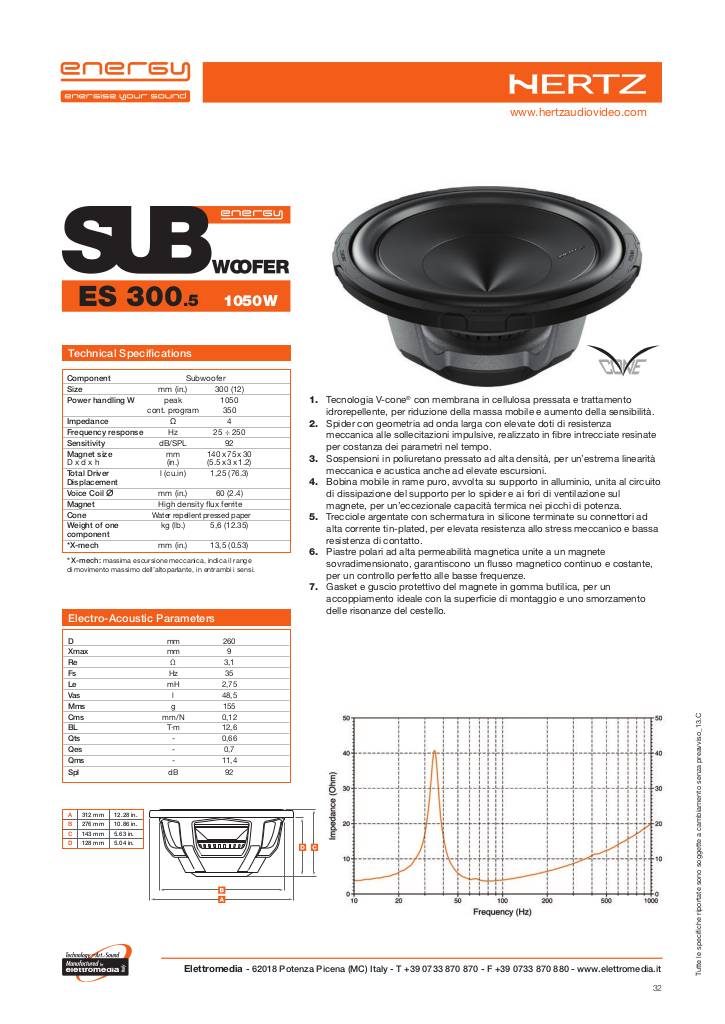

20130712153507-060604-hertz-cartellastampa-energy-13c-150dpi-32.pdf

Progetti box

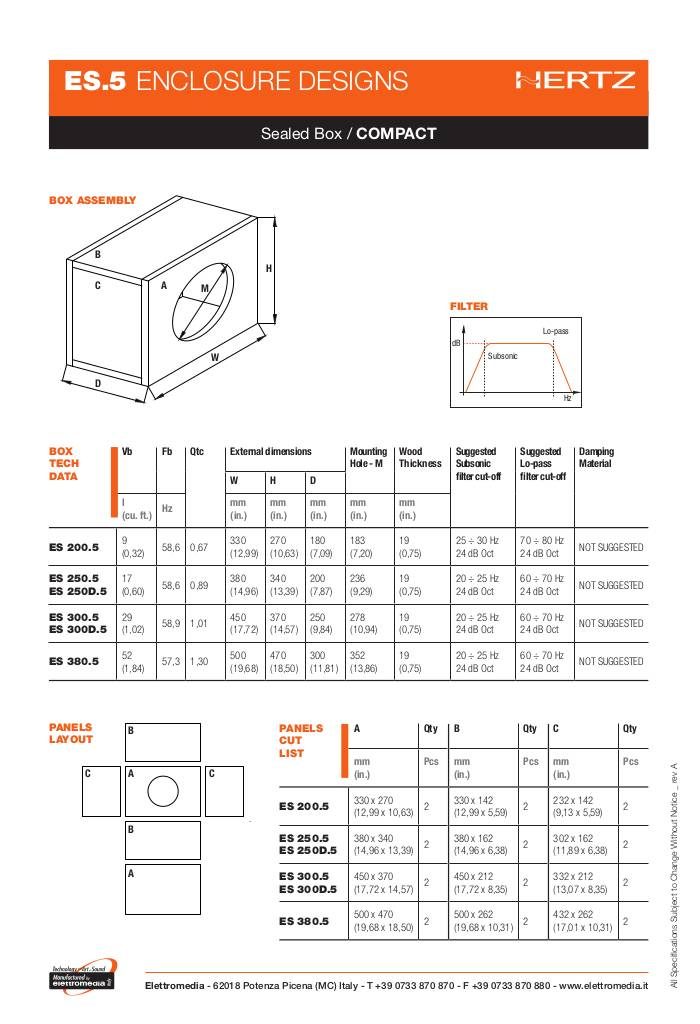

20140722112412-031440-hertz-es-5-sub-enclosure-design-web.pdf
