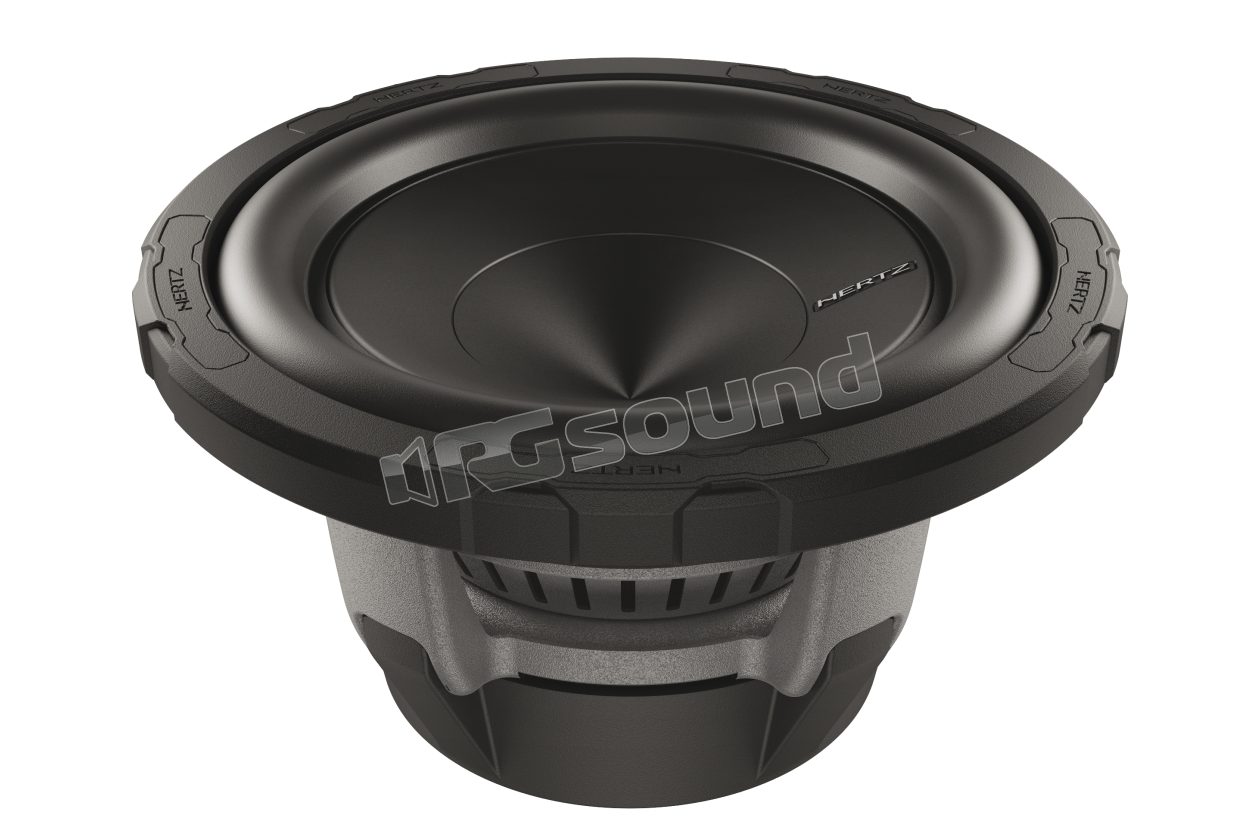

ES 200.5

Hertz

Discontinued

Your price:
€ 99,10
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
200 mm
MAX Power
600 Watt
RMS Power
200 Watt
Frequency Response
30 - 400 Hertz
Sensitivity
88.5 dB
Impedance
4 Ohm
Weight
3,7 Kg
Installation Depth
106 mm
Woofer Material
Cellulosa pressata idrorepellente

ES 200.5 Subwoofer new Energy 200 mm 4Ω series - RMS Power 200 W and Max 600 W

The Energy.5 subwoofers have been designed to express maximum performance in enclosures of reduced volume.
Their electroacoustic parameters are optimized for correct operation in any type of enclosure (sealed, bass reflex, bandpass, etc), ensuring extraordinary versatility and highest quality performance.


The use of a long-throw moving assembly and dual high-flux-density magnets has made it possible to create components capable of handling high power levels, with extraordinary musicality combined with explosive dynamics.
Scratch-resistant paint finishes and a butyl rubber ring provide reliable protection along with a modern and aggressive look.

FEATURES

  • 1. V-cone® technology with pressed cellulose membrane and water-repellent treatment, to reduce moving mass and increase sensitivity.
  • 2. Spider with wide wave geometry with high mechanical resistance to impulse stress, made of resin-impregnated interwoven fibers for parameter consistency over time.
  • 3. High-density pressed polyurethane suspensions, for extreme mechanical and acoustic linearity even at high excursions.
  • 4. Pure copper voice coil, wound on aluminum former, combined with the heat dissipation circuit of the spider support and ventilation holes on the magnet, for exceptional thermal capacity during power peaks.
  • 5. Silver-braided leads with silicone shielding terminated on high-current tin-plated connectors, for high resistance to mechanical stress and low contact resistance.
  • 6. High magnetic permeability pole plates combined with an oversized magnet, guarantee continuous and constant magnetic flux, for perfect control at low frequencies.
  • 7. Gasket and magnet protective shell in butyl rubber, for ideal coupling with the mounting surface and damping of basket resonances.

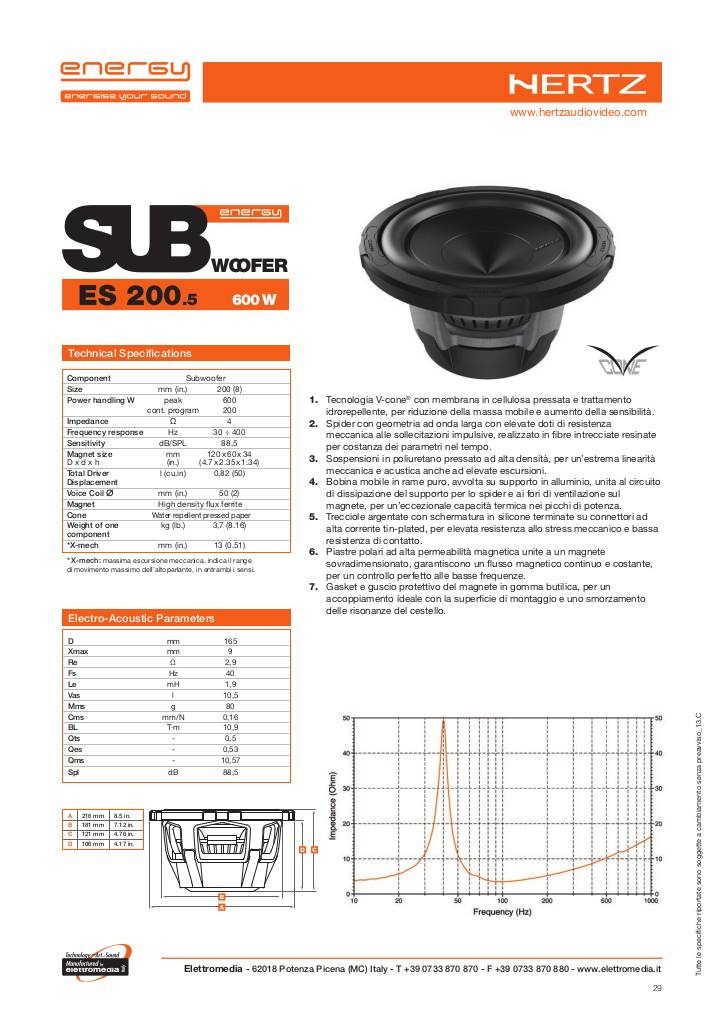

Scheda tecnica

20130712123808-060604-hertz-cartellastampa-energy-13c-150dpi-29.pdf

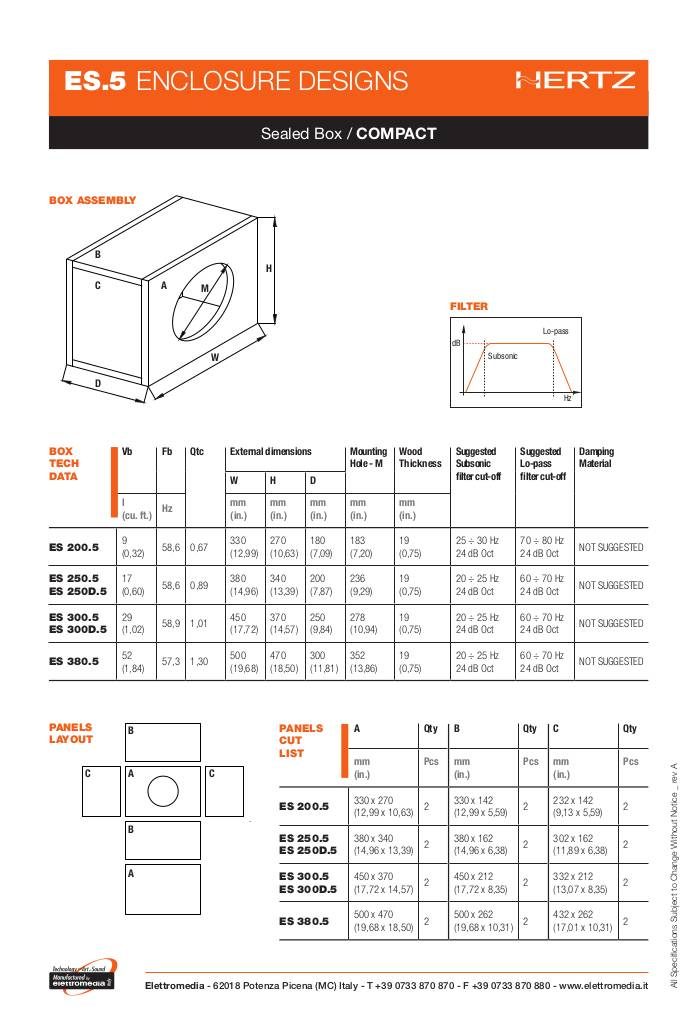

Progetti box

20140722112227-031440-hertz-es-5-sub-enclosure-design-web.pdf
Discontinued
