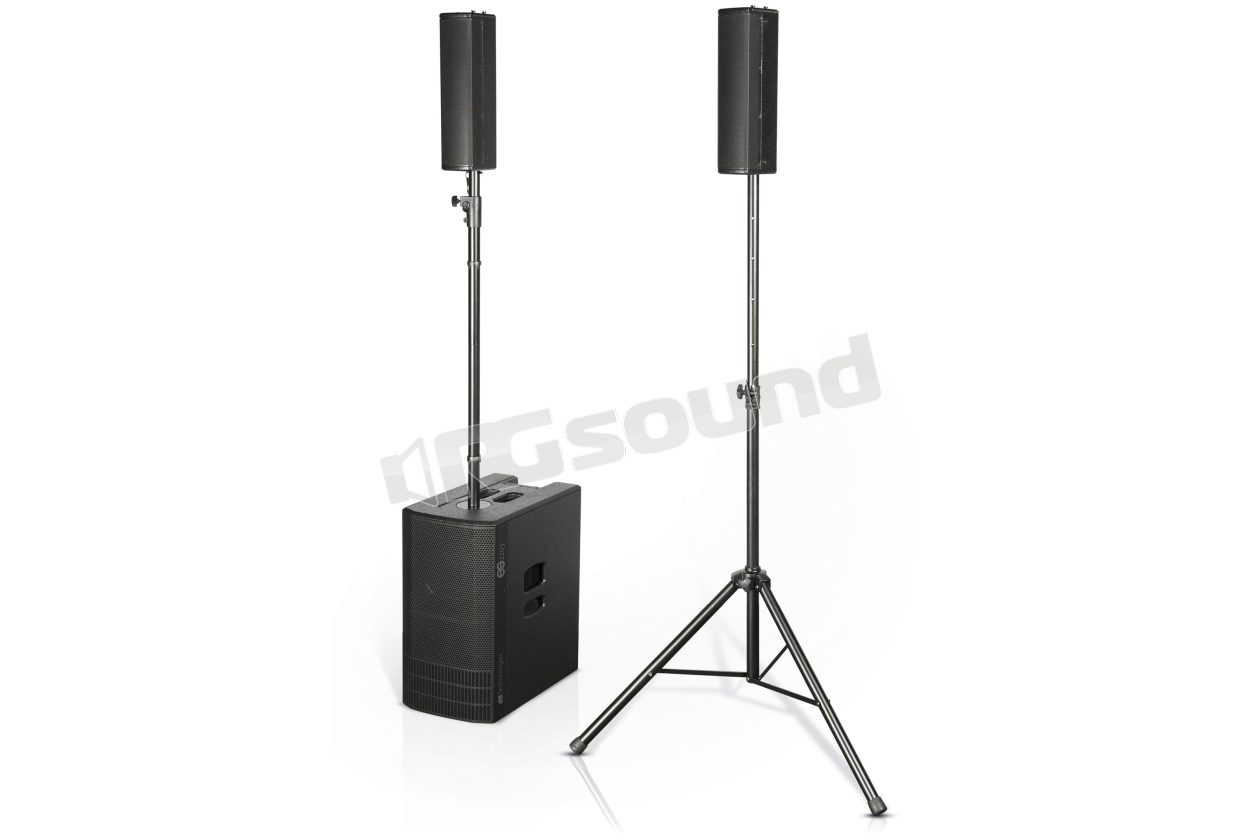

ES 1203 stereo system consisting of 2 speakers and a powered subwoofer with DSP and 5-channel mixer

dB Technologies
Your price:
€ 1449,00
Price per pair (VAT included)
Available on backorder
Calculating shipping costs to

dbTechnologies ES 1203 is a stereo system composed of 2 passive wooden speaker cabinets and an active subwoofer equipped with 2 12" woofers (covers included)

The subwoofer houses the latest generation Digipro G4 amplifier inside, with a maximum power of 2400 Watt.

A powerful DSP (controlled by a dedicated user interface) manages all the functions of the on-board digital mixer, as well as system configurations (mono, stereo or dual column) and allows the choice between two different steering modes (far, near) making ES 1203 a totally customizable system and adaptable to every need.

Each upper satellite is equipped with 4 mid-woofers of 4 inches each, whose alignment allows asymmetric vertical coverage.

The integrated mixer of ES 1203 is a 5-channel mixer: the first channel is equipped with a balanced/unbalanced MIC/instrument combo connector with an adjustable anti-feedback filter, impedance compensation and microphone gain with 3 positions (0, +10, +20 dB). The second and third channels are MIC / LINE inputs with balanced/unbalanced combo connector. This allows the system to handle up to 3 microphone lines at a time.

ES 1203 also has a built-in Bluetooth module to receive audio from external portable devices and a balanced/AUX MIX output to connect a stage monitor or a speaker. In Dual Column mode, this output acts as a source for another ES1203 making it an even more powerful stereo system.

The system can be completed with DP-ES1203, a wooden pole, which balances the overall design of the system making it discreet and elegant for permanent installations or events that require greater design.

In addition, the ES 1203 system package includes:

  • Subwoofer cover
  • Top modules cover
  • 35mm telescopic pole
  • 2x 7m Speakon cables
  • Power cable

dbTechnologies ES 1203 technical specifications

  • 3-amplifier stereo system with two full-range speakers and a subwoofer
  • Frequency response [-10dB] 35 - 20,000 Hz
  • Max SPL 132 dB
  • MF - HF 8 x 4 ", v.c. 1"
  • MF - HF Type Neodymium
  • LF 2x12 "
  • Directivity 97x60 °
  • Amp Technology Digipro® G4
  • Amp Class Class-D
  • Power amplifier peak 2400 W
  • Electrical connection VDE connector
  • DSP processor 56 bit
  • AD / DA converter 24 bit / 48 Hz
  • Limiter Peak, RMS, thermal
  • LF-MF crossover frequency 160 Hz

Input channels:

  • 1x microphone / instrument combo (XLR / jack)
  • 2x Mic / Line Combo (XLR / Jack)
  • 1x Built-in Bluetooth receiver
  • Mix output:
  • 1x balanced XLR output

Dimensions and weight:

  • Width (top) 110 mm (4.33 inches)
  • Height (top) 460 mm (18.11 inches)
  • Depth (top) 160 mm (6.30 inches)
  • Width (subwoofer) 360 mm (14.17 inches)
  • Height (subwoofer) 680 mm (26.77 inches)
  • Depth (subwoofer) 545 mm (21.46 inches)
  • Weight (speakers) 3.3 kg - 7.27 pounds
  • Weight (subwoofer) 29.3 kg - 64.59 pounds
€ 1449,00 Price incl. VAT
