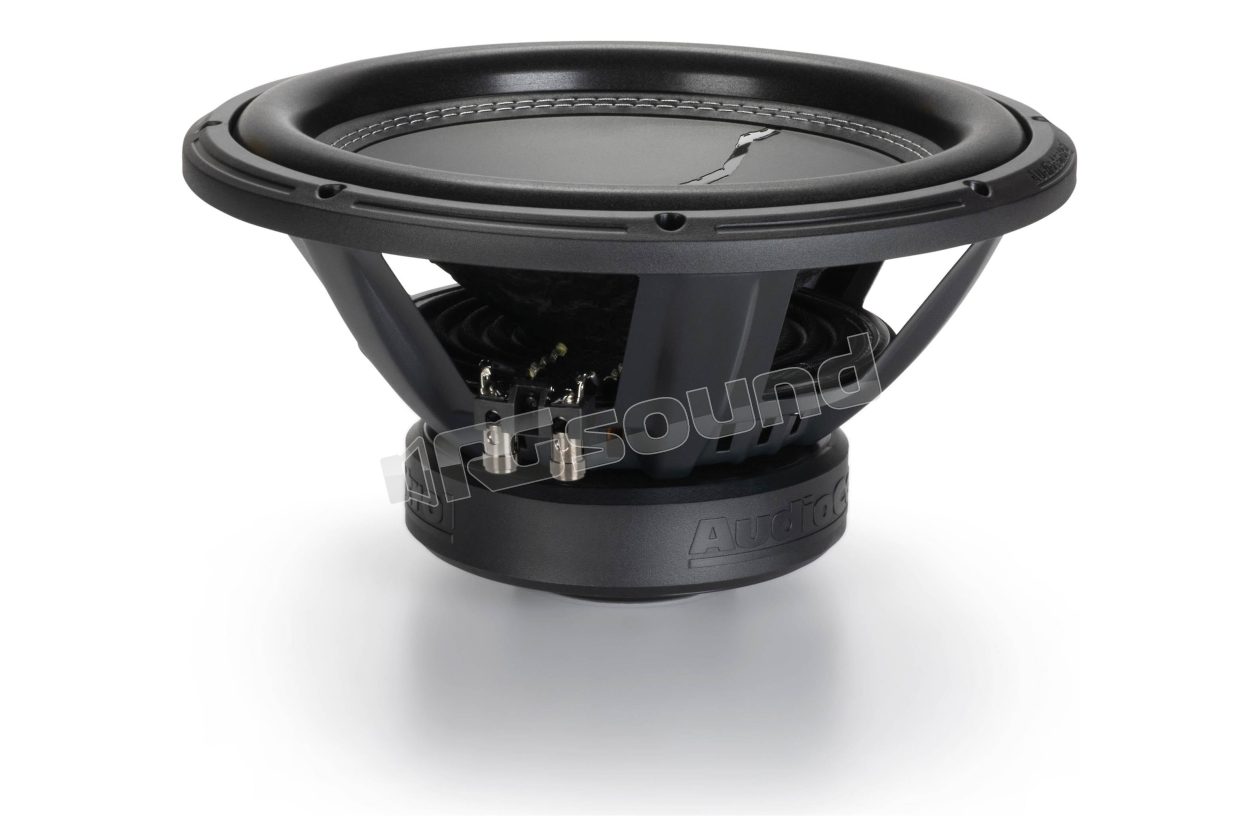

EPICX12D4 30cm (12") subwoofer with dual 4 Ohm voice coil, 500 W RMS

Audiocontrol
Your price:
€ 189,10
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
300 mm
MAX Power
750 Watt
RMS Power
500 Watt
Sensitivity
86,6 dB
Impedance
4 + 4 Ohm
Installation Depth
154 mm
Woofer Material
Cellulosa trattata

Audiocontrol EPICX12D4 subwoofer EPICX series 30cm (12") with dual voice coil, 500 W RMS, dual impedance 4 Ohm

Discover the perfect fusion of unstoppable power and refined audio quality with the brand new EPICX series subwoofers from AudioControl. Designed for those who don't settle for simply loud sound, these subwoofers deliver precise and well-defined bass response that strikes with force while maintaining sound purity, even at extreme volumes.

Engineered with precision from the ground up, these subwoofers feature non-pressed paper cones, heavy-duty motor structures and high-quality components capable of withstanding intense stress. Every element is optimized for power, efficiency and durability, creating a subwoofer that exceeds expectations in every way!

If you're pushing the limit in competitions or want a system that dominates the streets, the EPICX series is made for you. These subwoofers handle power effortlessly, delivering the kind of deep and aggressive bass that turns heads.

Built on AudioControl's tradition of build quality and innovative design, the EPICX series delivers performance without sacrificing clarity. Engineered for those who love loud volume. No gimmicks: just pure and responsive performance you can count on.

Main features of the Audiocontrol EPICX12D4 sub

  • Composite foam surround: delivers fluid and controlled bass, ensuring breathtaking sound without compromise.
  • High-precision motor assembly: maximizes efficiency and output power, converting amplifier power into pure and impactful bass.
  • Rigid steel basket: guarantees unwavering strength and eliminates resonance, for more defined bass and clearer sound.
  • Lightweight voice coil resistant to high temperatures: ensures dynamic and lightning-fast bass response, plus unwavering reliability even at extreme power levels.
  • One-piece dust cap design: improves cone rigidity for consistent, accurate and distortion-free bass reproduction.
  • Non-pressed paper cone: imparts organic warmth, natural depth and rich character to low frequencies.
  • Large gauge quick-disconnect black nickel terminals: ensure maximum conductivity and a rock-solid, vibration-proof connection for consistent power delivery.
  • Pair it with The EPICENTER: unleash unparalleled bass, as the EPICX series is designed to integrate perfectly with AudioControl's legendary bass restoration processor for breathtaking low frequencies.

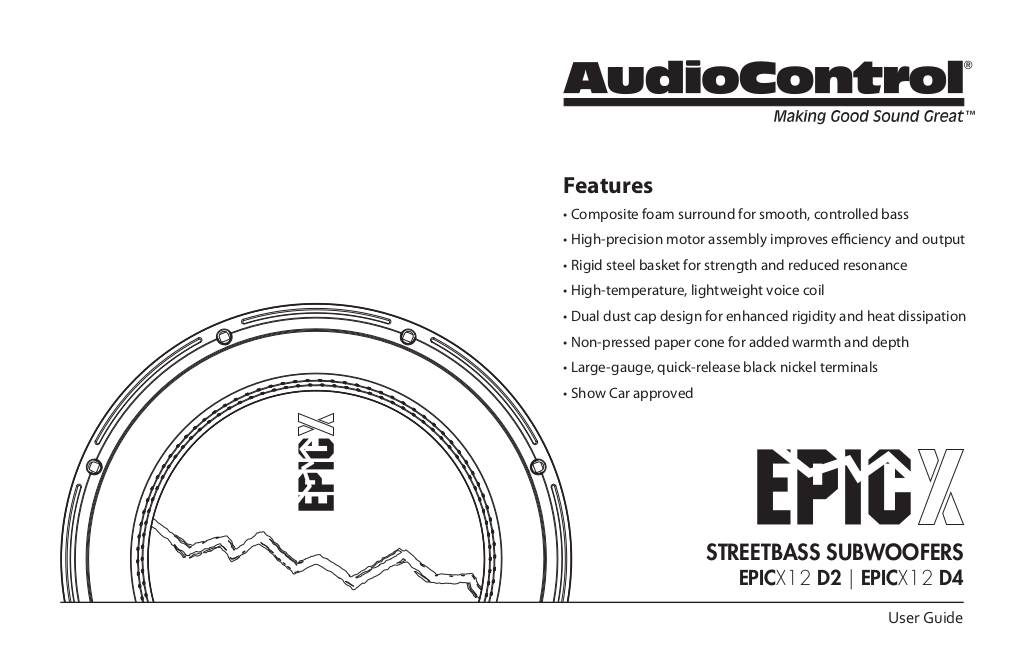

Manuale utente

n-20260702154105-epicx12-user-manual-rev-b.pdf

Audiocontrol EPICX12D4 technical specifications

  • Speaker size 12" / 300 mm
  • Power 500 W RMS / 750 W max
  • Impedance 4 + 4 Ohm
  • Voice coil 2.38"
  • Resonance frequency 30.1 Hz
  • Efficiency 86.6 dB
  • Magnet dimensions 6.14 x 2.95 x 0.98" / 156 x 75 x 25 mm

Dimensions

  • Overall diameter: 12.4" / 316 mm
  • Mounting hole diameter: 11.06" / 281 mm
  • Mounting depth: 6" / 153.8 mm
  • Mounting height: 1" / 24 mm
  • Motor diameter (with cover): 6.4" / 162 mm

Recommended reflex enclosure

  • External dimensions: 23.75″ L × 16.5″ H × 12.5″ D
  • Net internal volume: 2 ft³
  • External volume: 2.83 ft³
  • Material thickness: 0.75"
  • Port area: 22.5" sq
  • Port entrance: 1.2″ L × 15″ H
  • Port length: 23.75"
  • Resonance frequency: 33 Hz

Recommended sealed enclosure

  • External dimensions: 19″ L × 14.5″ H × 11″ D
  • Internal volume: 1.25 ft³
  • Material thickness: 0.75"
