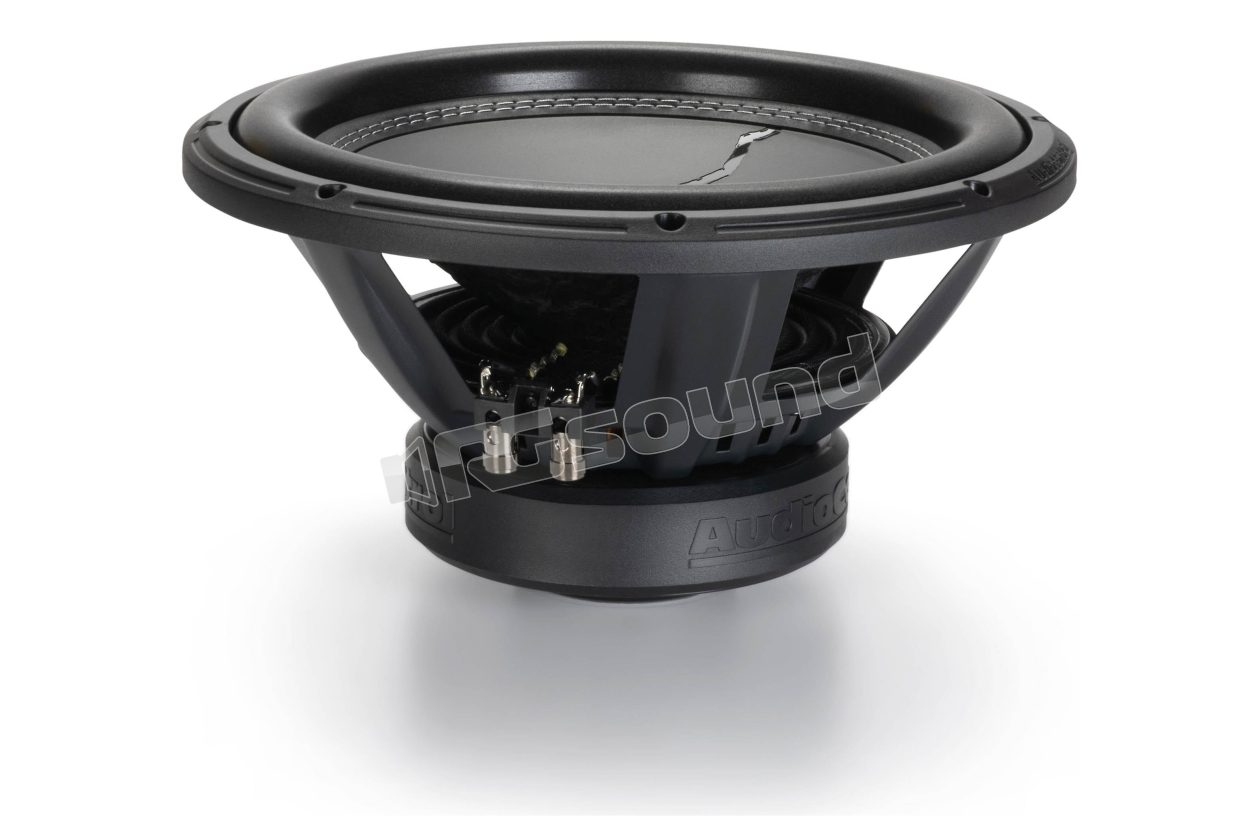

EPICX12D2 30cm (12") subwoofer with dual 2 Ohm voice coil, 500 W RMS

Audiocontrol
Your price:
€ 189,10
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
300 mm
MAX Power
750 Watt
RMS Power
500 Watt
Sensitivity
86,6 dB
Impedance
2 + 2 Ohm
Installation Depth
154 mm
Woofer Material
Cellulosa trattata

Audiocontrol EPICX12D2 subwoofer EPICX series 30cm (12") with dual voice coil, 500 W RMS, dual impedance 2 Ohm

Discover the perfect fusion of unstoppable power and refined audio quality with the brand new EPICX series subwoofers from AudioControl. Designed for those who don't simply settle for loud sound, these subwoofers deliver precise and well-defined bass response that hits with force while maintaining sound purity, even at extreme volumes.

Engineered with precision from the ground up, these subwoofers feature non-pressed paper cones, heavy-duty motor structures, and high-quality components capable of withstanding intense stress. Every element is optimized for power, efficiency, and durability, creating a subwoofer that exceeds expectations from every angle!

If you're pushing limits in competitions or want a system that dominates the streets, the EPICX series is made for you. These subwoofers handle power effortlessly, delivering the kind of deep and aggressive bass that commands attention.

Built on AudioControl's tradition of construction quality and innovative design, the EPICX series delivers performance without sacrificing clarity. Engineered for those who love loud volume. No gimmicks: just pure and responsive performance you can count on.

Main features of the Audiocontrol EPICX12D2 sub

  • Composite foam surround: delivers smooth and controlled bass, guaranteeing breathtaking sound without compromise.
  • High-precision motor assembly: maximizes efficiency and output power, converting amplifier power into pure and impactful bass.
  • Rigid steel basket: ensures unwavering strength and eliminates resonance, for more defined bass and clearer sound.
  • Light voice coil with high-temperature resistance: delivers dynamic and lightning-fast bass response, plus unwavering reliability even at extreme power levels.
  • One-piece dust cap design: improves cone rigidity for consistent, accurate bass reproduction free from distortion.
  • Non-pressed paper cone: imparts organic warmth, natural depth, and rich character to low frequencies.
  • Black nickel quick-disconnect terminals with large gauge: ensure maximum conductivity and rock-solid, vibration-proof connection for consistent power delivery.
  • Pair with The EPICENTER: unleash unmatched bass, as the EPICX series is designed to integrate seamlessly with AudioControl's legendary bass restoration processor for breathtaking low frequencies.

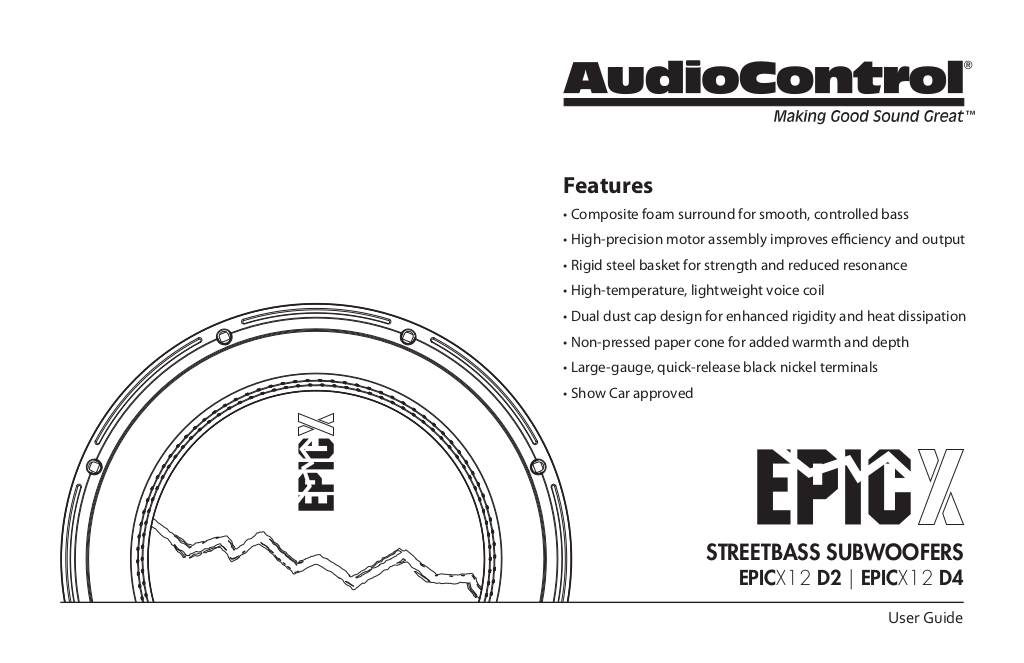

Manuale utente

n-20260702154729-epicx12-user-manual-rev-b.pdf

Audiocontrol EPICX12D2 technical specifications

  • Speaker size 12" / 300 mm
  • Power 500 W RMS / 750 W max
  • Impedance 2 + 2 Ohm
  • Voice coil 2.38"
  • Resonance frequency 30.1 Hz
  • Efficiency 86.6 dB
  • Magnet size 6.14 x 2.95 x 0.98" / 156 x 75 x 25 mm

Dimensions

  • Overall diameter: 12.4" / 316 mm
  • Mounting hole diameter: 11.06" / 281 mm
  • Mounting depth: 6" / 153.8 mm
  • Mounting height: 1" / 24 mm
  • Motor diameter (with cover): 6.4" / 162 mm

Recommended ported enclosure

  • External dimensions: 23.75″ L × 16.5″ H × 12.5″ D
  • Net internal volume: 2 ft³
  • External volume: 2.83 ft³
  • Material thickness: 0.75"
  • Port area: 22.5" sq
  • Port entrance: 1.2″ L × 15″ H
  • Port length: 23.75"
  • Resonance frequency: 33 Hz

Recommended sealed enclosure

  • External dimensions: 19″ L × 14.5″ H × 11″ D
  • Internal volume: 1.25 ft³
  • Material thickness: 0.75"
