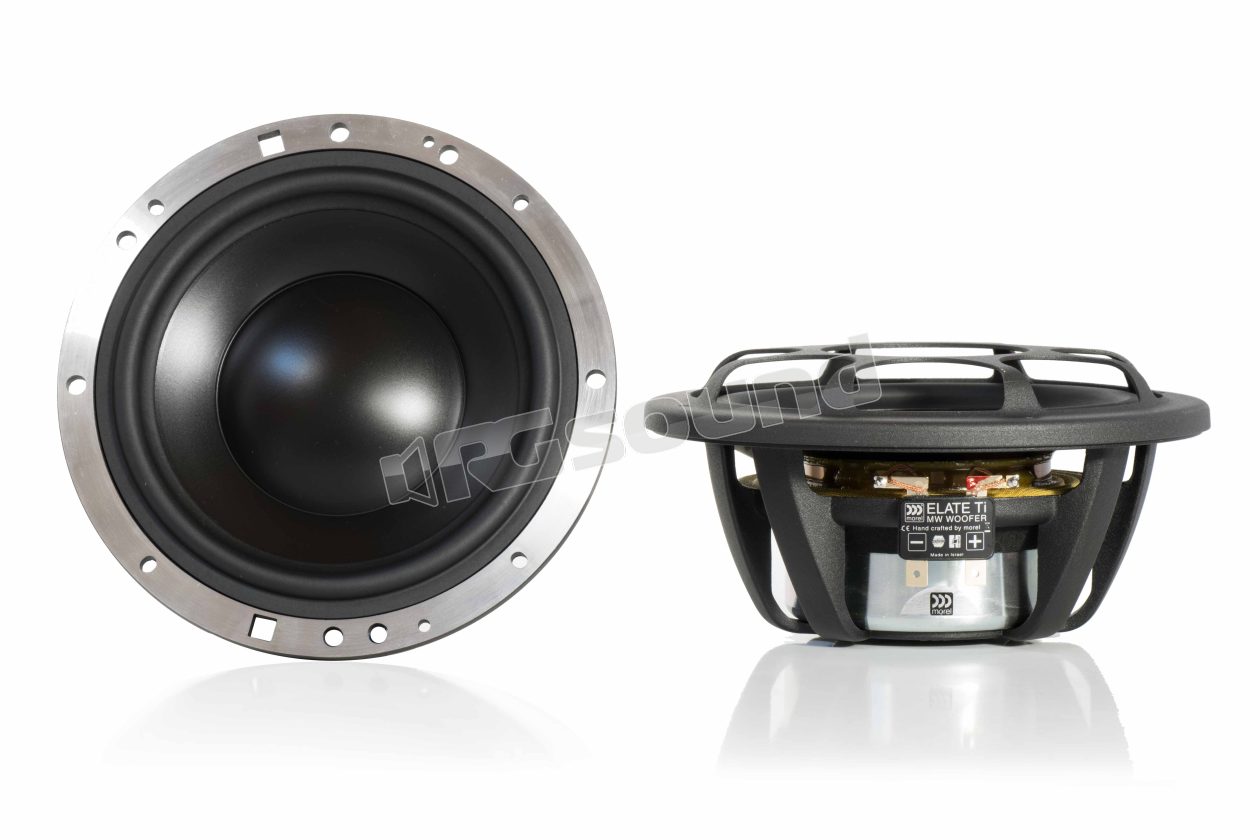

ELATE MW6 Elate high-end 16.5cm woofer

Morel

Discontinued

Your price:
€ 729,00
Price per pair (VAT included)
Type
Woofer and midwoofer
Speaker Size
165 mm
MAX Power
1000 Watt
RMS Power
180 Watt
Frequency Response
30 - 4000 Hertz
Sensitivity
88 dB
Impedance
4 Ohm
Weight
1,2 Kg
Installation Depth
61 mm
Woofer Material
Cellulosa trattata

ELATE MW6 MOREL woofer high-end 165 mm
The Morel Elate line has been recognized as an icon for hi-fi systems. Morel's R&D (Research & Development) designed this series to combine precision and high sound power.

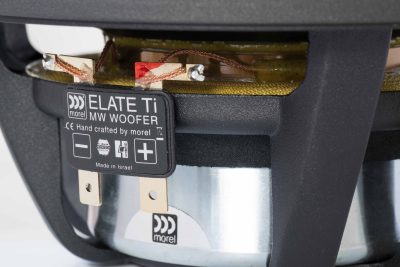

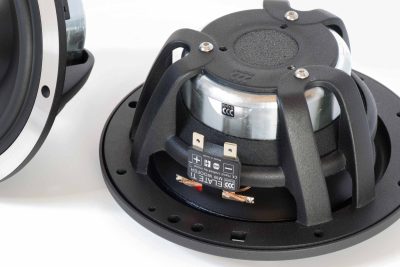

The Elate Titanium woofers feature a new titanium voice coil (previous mobile voice coil) created to produce a fast transient response that aligns with the acoustic challenges of the car, allowing woofers to match different enclosures for different car doors. The woofers continue to use the Morel C.A.R™ filter and the 3-inch EVC™ with Hexatech™ technology.

ELATE MW6 woofer specifications:

  • Nominal Impedance: 4 Ohms
  • Power Handling: 180Wrms
  • Max. Trans.Pwr Handling: 1000Wrms
  • Sensitivity (2.83V/1M): 88dB
  • Frequency Response: 30-4000 Hz
  • Resonant Freq. Fs:43Hz
  • Voice Coil Diameter: 75mm
  • Voice Coil Height: 0.57in (14.50mm)
  • Voice Coil Type/ Former: Aluminum
  • Voice Coil Wire: Hexatech Aluminum
  • DC Resistance: 3.6Ohms
  • Voice Coil Induct. @1 kHz: 0.41MH
  • Magnet System: Double Magnet Rear Vented
  • HE-Magnetic Gap Height: 0.20inch(5mm)
  • B-Flux Density (T.M.): 0.66
  • BL Product/BXL: 5.37
  • Max. Linear Ex./Xmax: ±0.2in (±4.75mm)
  • Suspension Compliance CMS - mm/N: 0.81
  • Electrical Q Factor QES: 0.57
  • QTS: 0.44
  • QMS: 1.87
  • Mech.Resistance RMS - Ohm/meter: 2.41
  • Moving Mass MMS - gr: 16.9
  • Equiv. Can Air Load VAS: 16.02L (0.56cu.ft)
  • Effective Piston Area SD: 119sq.cm (18.45sq. inch)
  • Cone Type: One-piece formed
  • Cone Material: DPC
  • Unit Diameter: 6.50in (165mm)
  • Mounting Depth: 2.40in (61mm)
  • Mounting Cutout: 5.55in (141mm)
  • Net Weight: 2.60lb (1.18Kg)

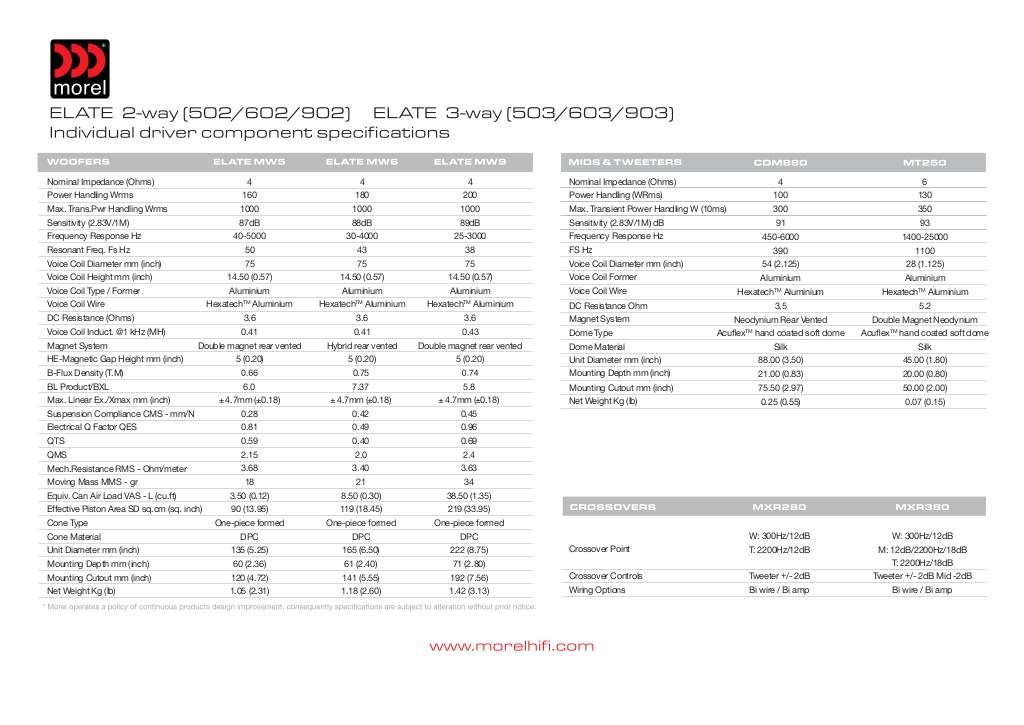

Scheda tecnica

20131017130242-elate-modified-spec.pdf

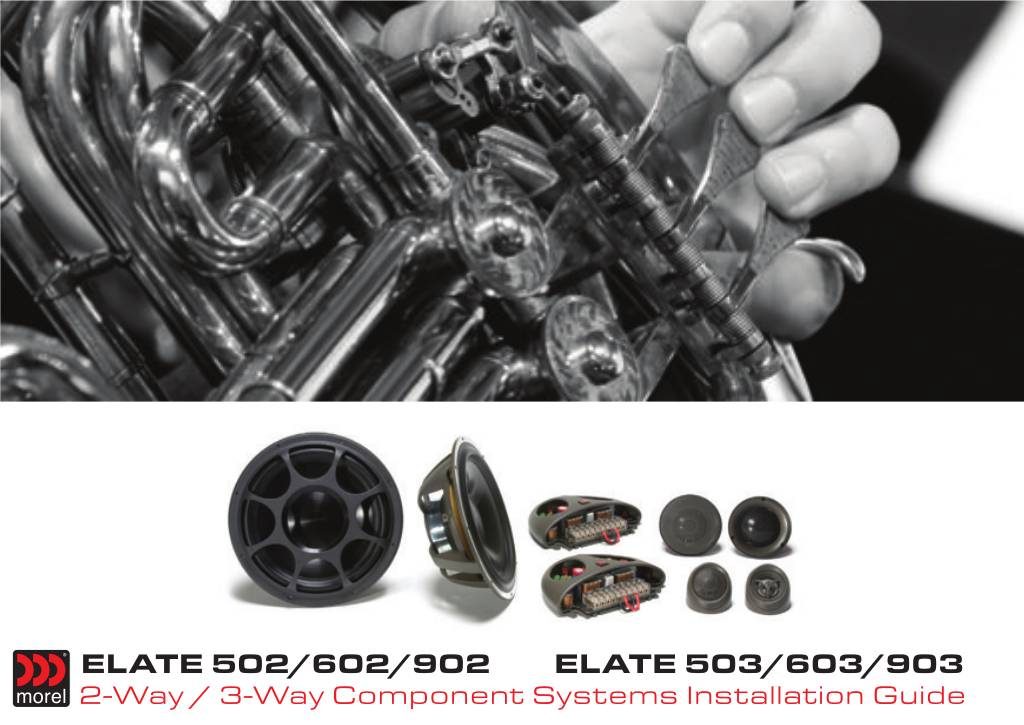

Manuale utente

20131017130242-components-new-elate-series-in-low-res.pdf
Discontinued
