ELATE CARBON MW6 High-end 16.5cm woofer, carbon fiber cone

Morel
Your price:
€ 1137,00
Price per pair (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
165 mm
MAX Power
1.000 Watt
RMS Power
180 Watt
Frequency Response
30 - 4.000 Hertz
Sensitivity
87 dB
Impedance
4 Ohm
Weight
1,18 Kg
Installation Depth
61 mm
Woofer Material
Fibra di carbonio

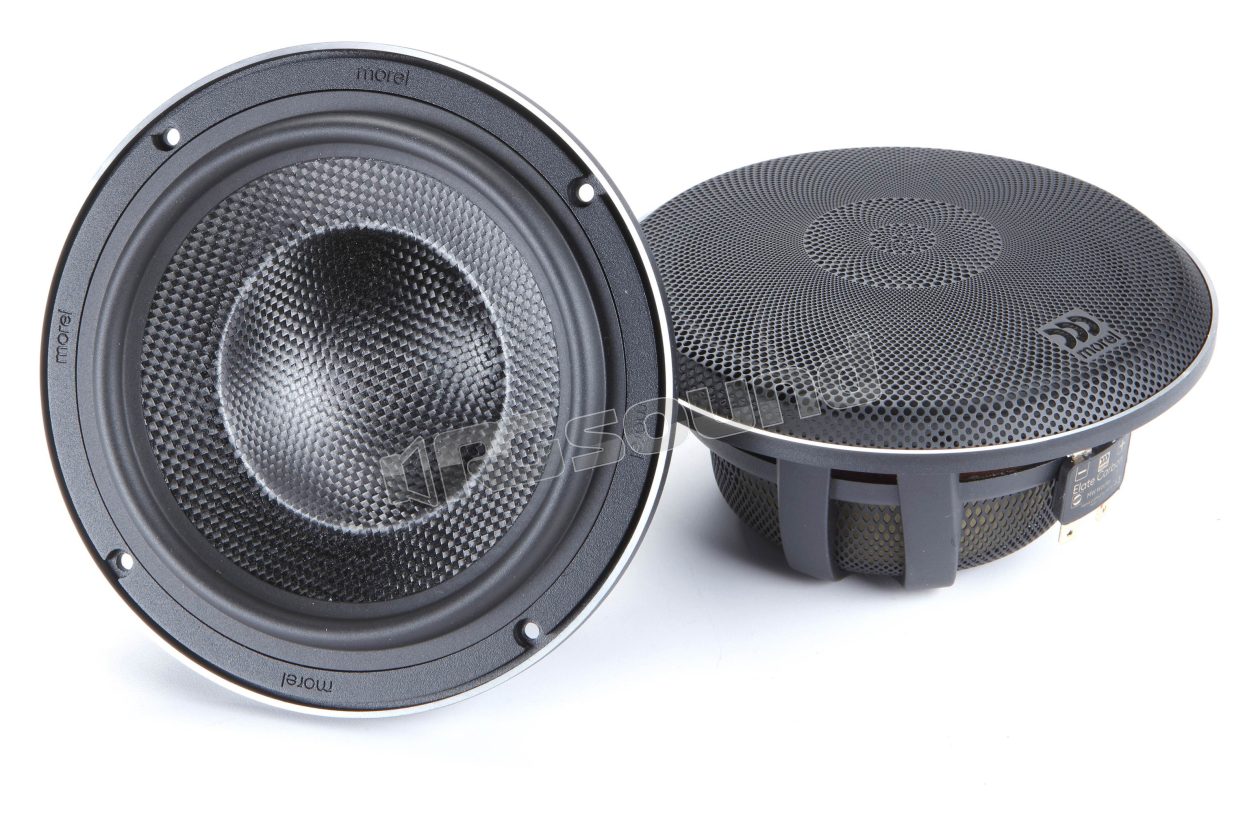

Morel ELATE CARBON MW6 pair of 6.5" (165mm) woofers

With double-layer carbon fiber cone, 3" (75mm) voice coil, 4 Ohm impedance. The Elate Carbon woofers, visually stimulating, have been developed with superior performance in mind. These new drivers take their name from the triple-layer cones from which they are derived, consisting of two carbon fiber layers that enclose a Rohacell foam core. These proprietary cones were developed to give them incredible rigidity, high damping and lightweight: the triplet for cone performance.

Coupled with a large 3-inch diameter Hexatech aluminum voice coil, a titanium former and Morel's EVC motor technology, Elate Carbon achieves remarkable control and low distortion that translates into highly transparent sound reproduction and rich bass. The Elate Carbon MW6 woofers handle up to 180 Watts of RMS power and a maximum power of 1000 Watts. Frequency range 30 - 4,000 Hz, sensitivity 87 dB, impedance 4 Ohm.

Morel ELATE CARBON MW6 Technical Specifications

  • Woofer diameter 165 mm
  • Impedance 4 Ohm
  • Rated power 180 Watt RMS
  • Maximum power 1,000 Watt
  • Sensitivity 87 dB
  • Frequency response 30 - 4,000 Hz
  • Titanium voice coil
  • Voice coil diameter 75 mm
  • Double vented magnet
  • Mounting hole diameter 141 mm
  • Mounting depth 61 mm
  • Weight 1.18 Kg
€ 1137,00 Price incl. VAT
