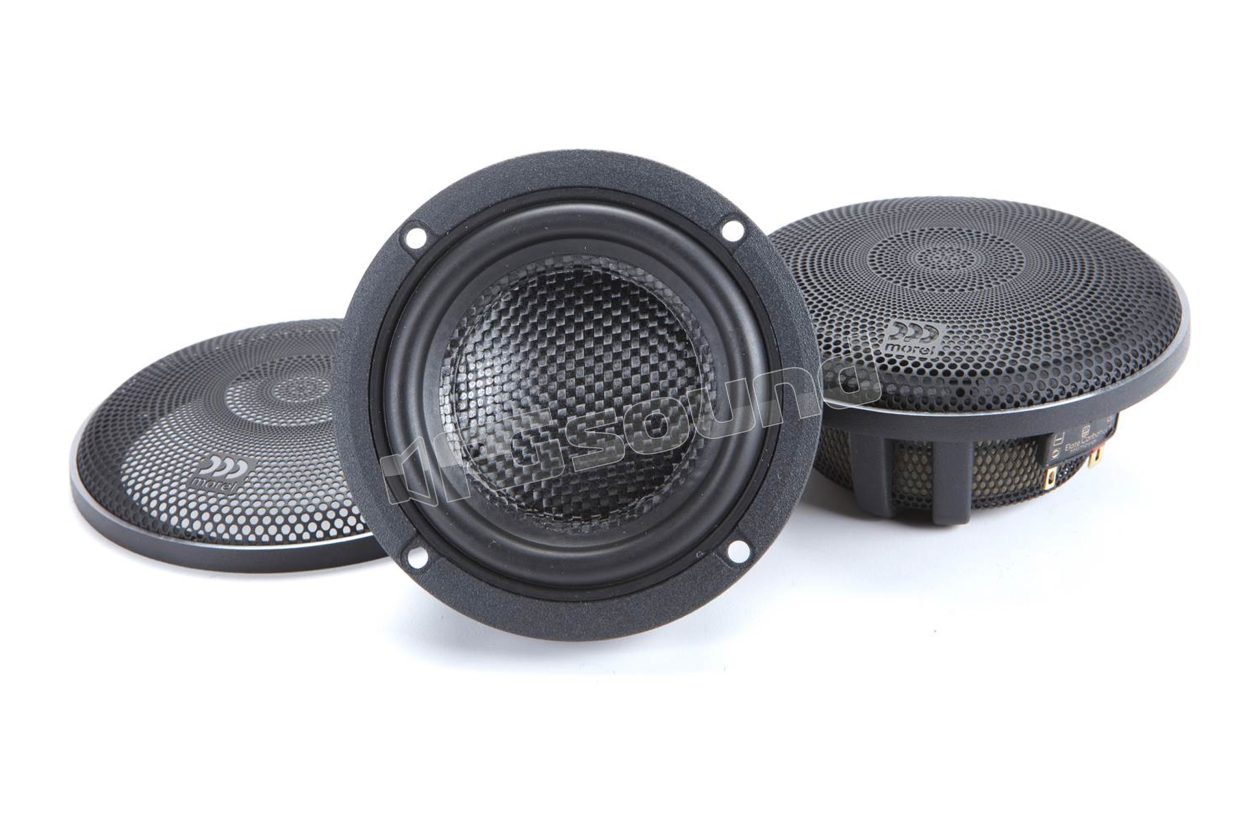

ELATE CARBON MM3 Pair of 3.5" midranges

Morel
Your price:
€ 891,00
Price per pair (VAT included)
Available on backorder
Calculating shipping costs to
Type
Midrange
Speaker Size
100 mm
MAX Power
400 Watt
RMS Power
120 Watt
Frequency Response
60 - 6.000 Hertz
Sensitivity
87 dB
Impedance
4 Ohm
Weight
0,38 Kg
Installation Depth
38 mm
Midrange Cone Material
Fibra di carbonio

Morel ELATE CARBON MM3 Pair of 3.5" midrange

Elate Carbon MM3 is a true masterpiece. 3.5 inch midrange that combines a large 2.1 inch voice coil and Morel's EVC motor design that encapsulates a highly efficient neodymium magnet system and the new triple-layer carbon fiber Rohacell cone.

With exceptional power handling, the MM3 is capable of playing at lower frequencies compared to other midrange drivers of its size, finding the right balance between acoustic and mechanical attributes to deliver a very flat frequency response, a wonderfully smooth midrange, and tonal balance.

Morel ELATE CARBON MM3 Technical specifications

  • Nominal impedance (ohm) 4
  • Nominal power 120 Watt RMS
  • Maximum power (10ms) 400 Watt
  • Sensitivity (2.83 V/1 M) 87 dB
  • Frequency response 90 - 6000 Hz
  • FS Hz 88
  • Voice coil diameter 54 mm (2.125")
  • Aluminum voice coil
  • Voice coil wire Hexatech aluminum
  • DC resistance 3 Ohm
  • Neodymium magnet system with rear ventilation
  • Unit diameter mm 100 mm (3.9")
  • Mounting depth 38 mm (1.5")
  • Mounting hole diameter 83 mm (3.3")
  • Net weight 0.38 Kg
€ 891,00 Price incl. VAT
