ELATE CARBON 93 22 cm 3-way speaker kit

Morel
Your price:
€ 2684,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
3-way separate kit
Woofer Size
200 mm
Midrange Size
75 millimetri
Tweeter Size
28 millimetri
MAX Power
2000 Watt
RMS Power
200 Watt
Frequency Response
25 - 25000 Hertz
Sensitivity
89 dB
Impedance
4 Ohm
Woofer Material
Fibra di carbonio

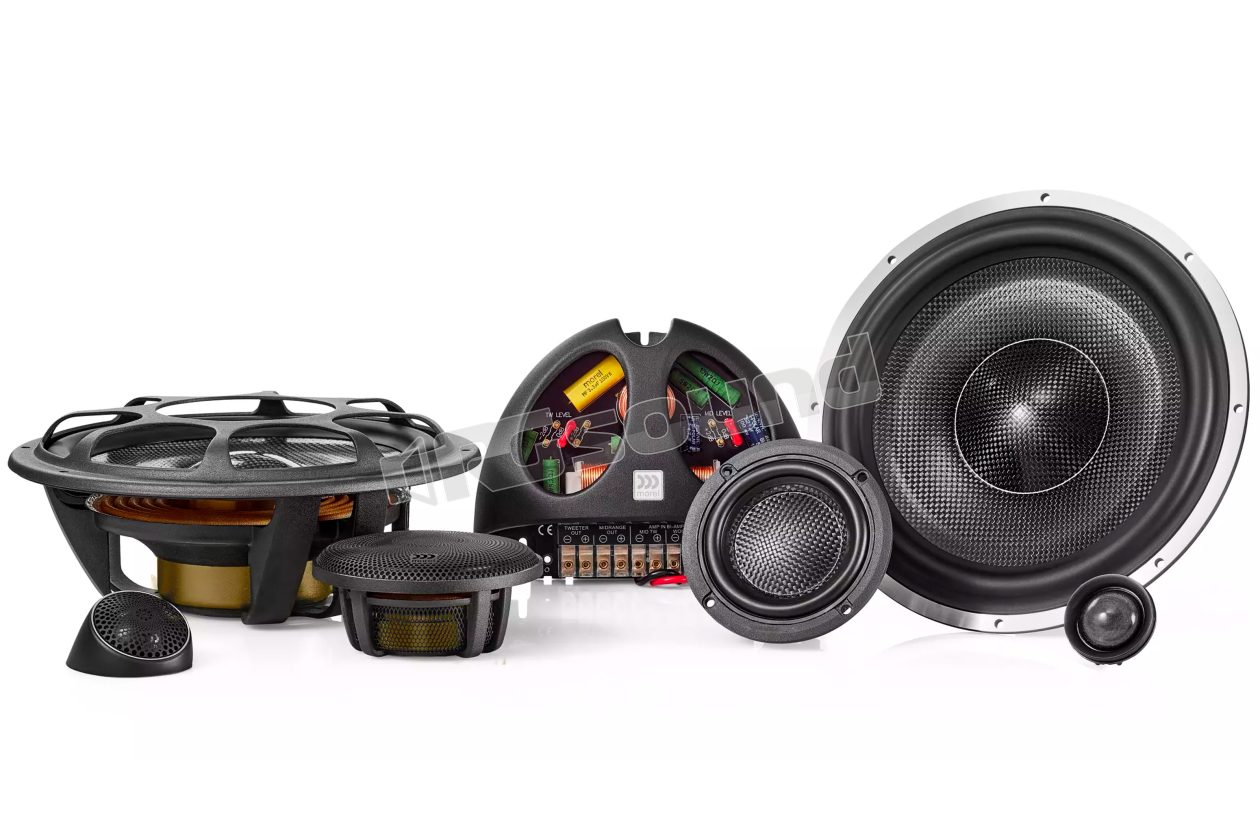

Morel ELATE CARBON 93 three-way speaker system with 22cm woofer

The Elate Carbon shares most of the high-end components with its Pro brothers, but takes a slightly more reasonable approach. These 2 and 3-way systems were designed for those who want maximum performance but are looking for a discrete tweeter.

The compact design of the MT450 tweeter allows users to place the speaker in most factory positions or areas with limited space thanks to the included brackets. Despite its reduced size, the silk dome coated in Acuflex, the open cavity design and the dual neodymium magnet motor of the MT450 give it surprising detail and a smooth and flat frequency response like silk.

All 3-way Elate Carbon systems receive the new 3.5" MM3 cone midrange. This small midrange uses the best of Morel technology, including the EVC motor, the high-power 2.1" diameter voice coil and the highly damped carbon fiber/Rohacell membrane, which allows it to play at lower frequencies and with greater control than most 4.5" speakers. Additionally, it is able to handle considerable power. These attributes drastically improve system performance, while still allowing them to fit into most factory midrange seats.

Scheda tecnica

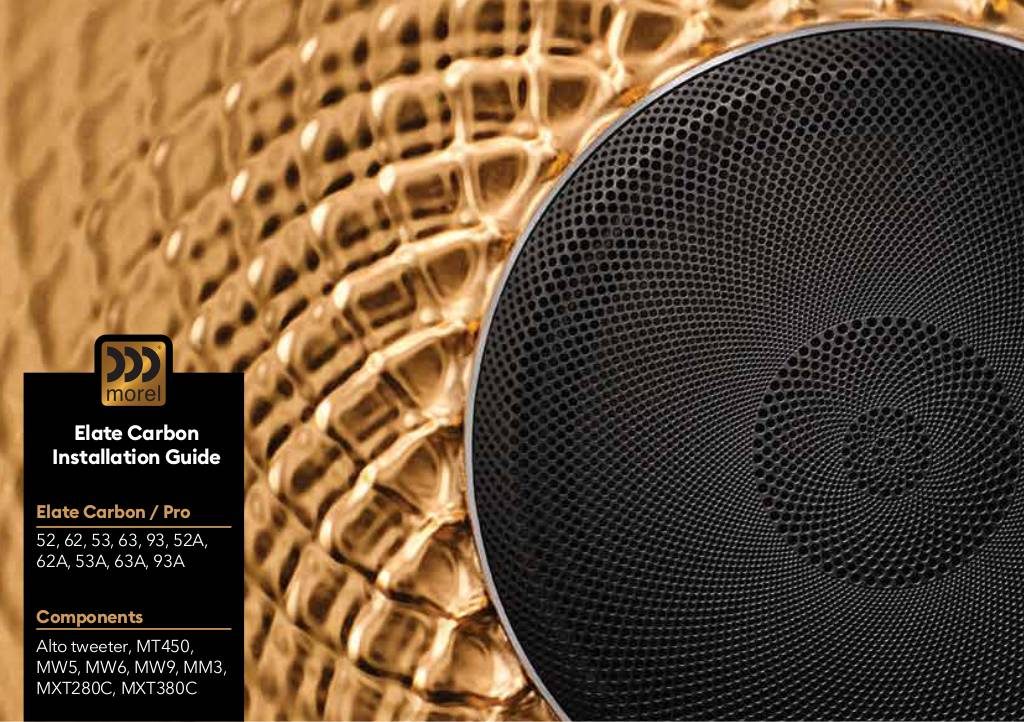

n-20240715102250-elate-carbon-new-manual-v2-for-web.pdf

Morel ELATE CARBON 63 Technical Specifications

  • 3-way speaker system
  • Woofer diameter 222 mm (8¾")
  • Woofer and midrange with carbon fiber cone
  • Tweeter with Acuflex dome
  • Power 200 Watt RMS / 1000 Watt max
  • Sensitivity 89 dB
  • Frequency response 25-25000
  • Crossover MXT380C
€ 2684,00 Price incl. VAT
