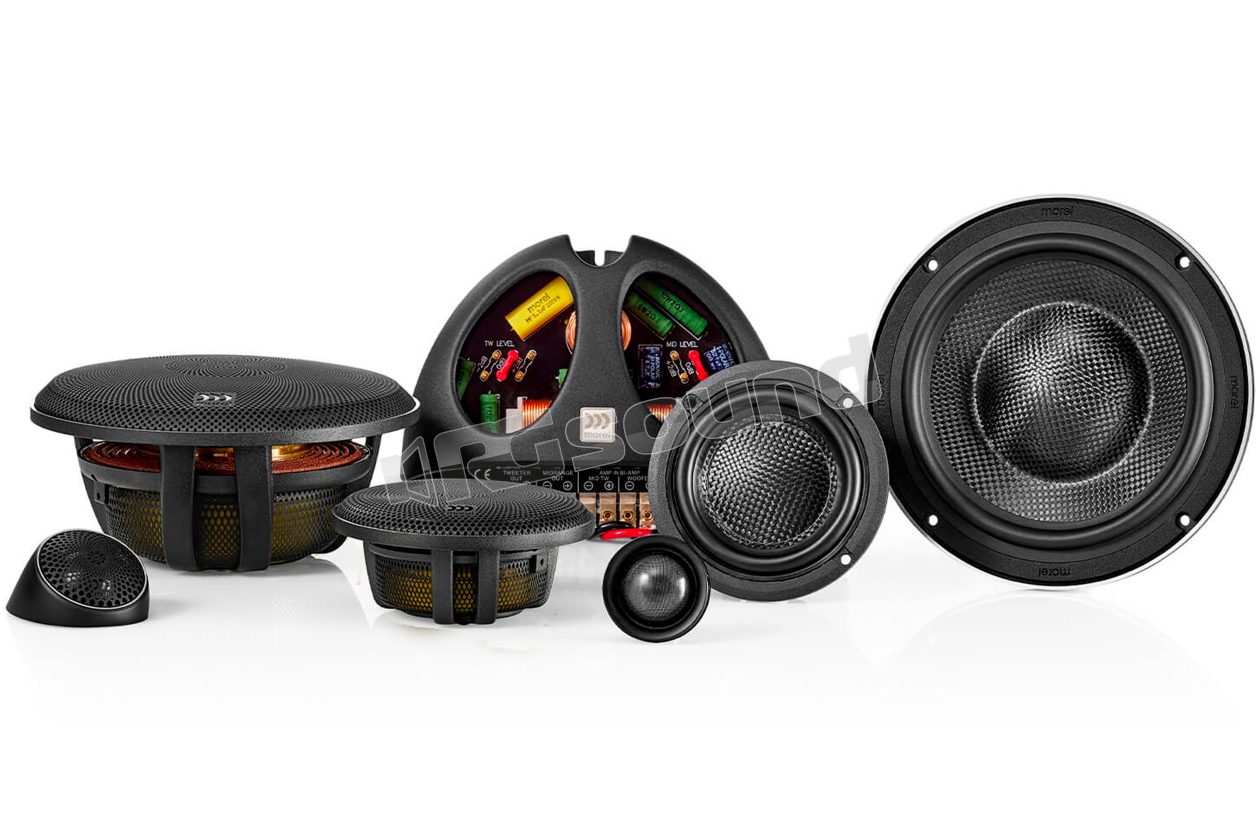

ELATE CARBON 63 16.5 cm 3-way speaker kit

Morel
Your price:
€ 2520,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
3-way separate kit
Woofer Size
165 mm
Midrange Size
75 millimetri
Tweeter Size
28 millimetri
MAX Power
1000 Watt
RMS Power
180 Watt
Frequency Response
30 - 25000 Hertz
Sensitivity
87 dB
Impedance
4 Ohm
Woofer Material
Fibra di carbonio

Morel ELATE CARBON 63 3-way speaker system 16.5cm (6.5")


The Elate Carbon shares most of the high-end components with its Pro siblings, but takes a slightly more reasonable approach. These 2 and 3-way systems were designed for those who want maximum performance but are looking for a discreet tweeter.

The compact design of the MT450 tweeter allows users to place the speaker in most factory positions or areas with limited space thanks to the included brackets. Despite its small size, the Acuflex-coated silk dome, open cavity design, and dual neodymium magnet motor of the MT450 give it surprising detail and a smooth and flat frequency response like silk.

All Elate Carbon 3-way systems receive the new 3.5" MM3 midrange cone. This small midrange uses the best of Morel technology, including the EVC motor, the 2.1" diameter high-power voice coil, and the highly damped carbon fiber/Rohacell membrane, which allows it to sound at lower frequencies and with greater control than most 4.5" speakers. Furthermore, it is able to handle considerable power. These attributes drastically improve system performance while allowing them to fit into most factory midrange locations.

Morel ELATE CARBON 63 Technical Specifications

  • 3-way speaker system
  • Woofer diameter 165 mm (6½")
  • Woofer and midrange with carbon fiber cone
  • Tweeter with Acuflex dome
  • Power 180 Watt RMS / 1000 Watt max
  • Sensitivity 87 dB
  • Frequency response 30-25000
  • Crossover MXT380C
€ 2520,00 Price incl. VAT
