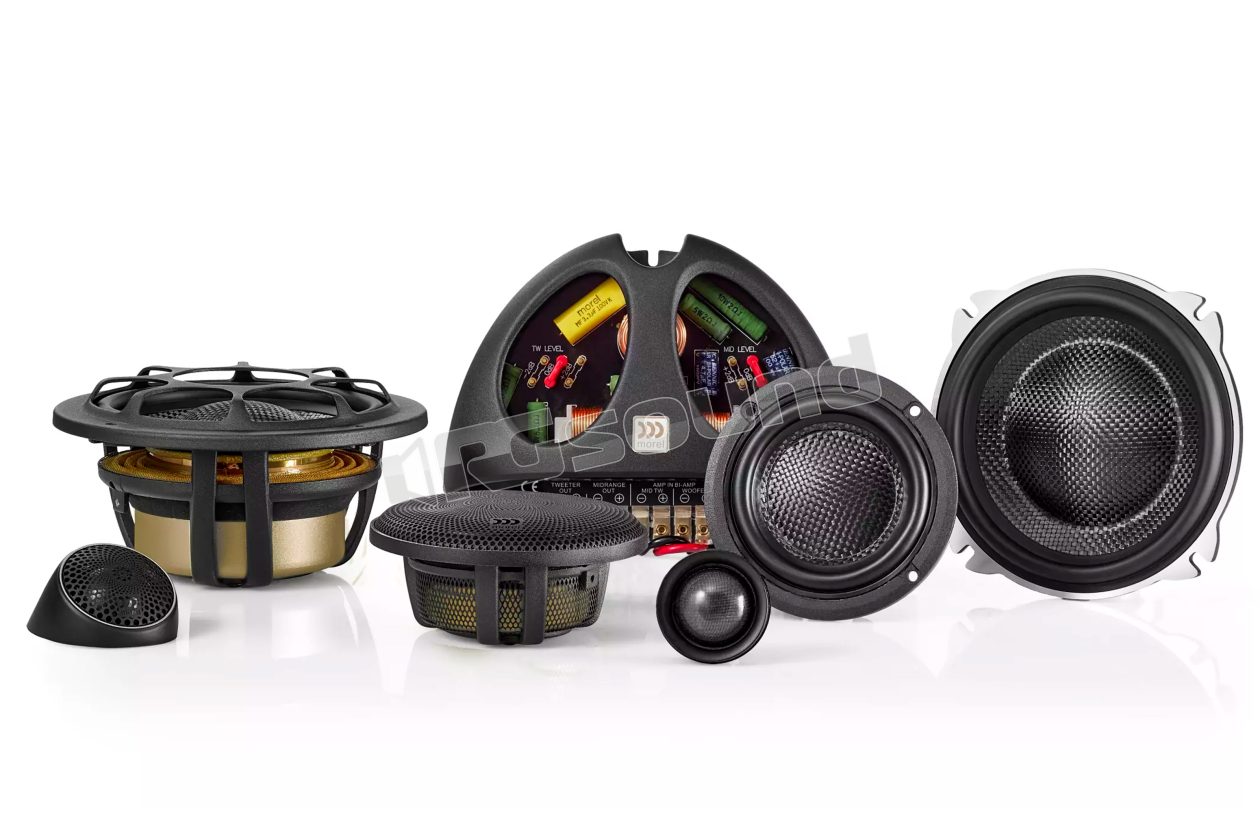

ELATE CARBON 53 13 cm 3-way speaker kit

Morel
Your price:
€ 2520,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
3-way separate kit
Woofer Size
130 mm
Midrange Size
75 millimetri
Tweeter Size
28 millimetri
MAX Power
1000 Watt
RMS Power
160 Watt
Frequency Response
40 - 25000 Hertz
Sensitivity
85 dB
Impedance
4 Ohm
Woofer Material
Fibra di carbonio

Morel ELATE CARBON 53 3-way speaker system 13cm (5")


The Elate Carbon shares most of the high-end components with its Pro siblings, but takes a slightly more reasonable approach. These 2 and 3-way systems were designed for those who want maximum performance but are looking for a discreet tweeter.

The compact design of the MT450 tweeter allows users to place the speaker in most factory positions or in areas with limited space thanks to the included brackets. Despite being small, the Acuflex-coated silk dome, open cavity design, and dual neodymium magnet motor of the MT450 give it surprising detail and a smooth and flat frequency response like silk.

All Elate Carbon 3-way systems receive the new 3.5" MM3 midrange cone. This small midrange uses the best of Morel technology, including the EVC motor, the 2.1" diameter high-power voice coil, and the highly damped carbon fiber/Rohacell membrane, which allows it to play at lower frequencies and with greater control than most 4.5" speakers. In addition, it is able to handle considerable power. These attributes dramatically improve system performance, while still allowing them to fit into most factory midrange locations.

Scheda tecnica

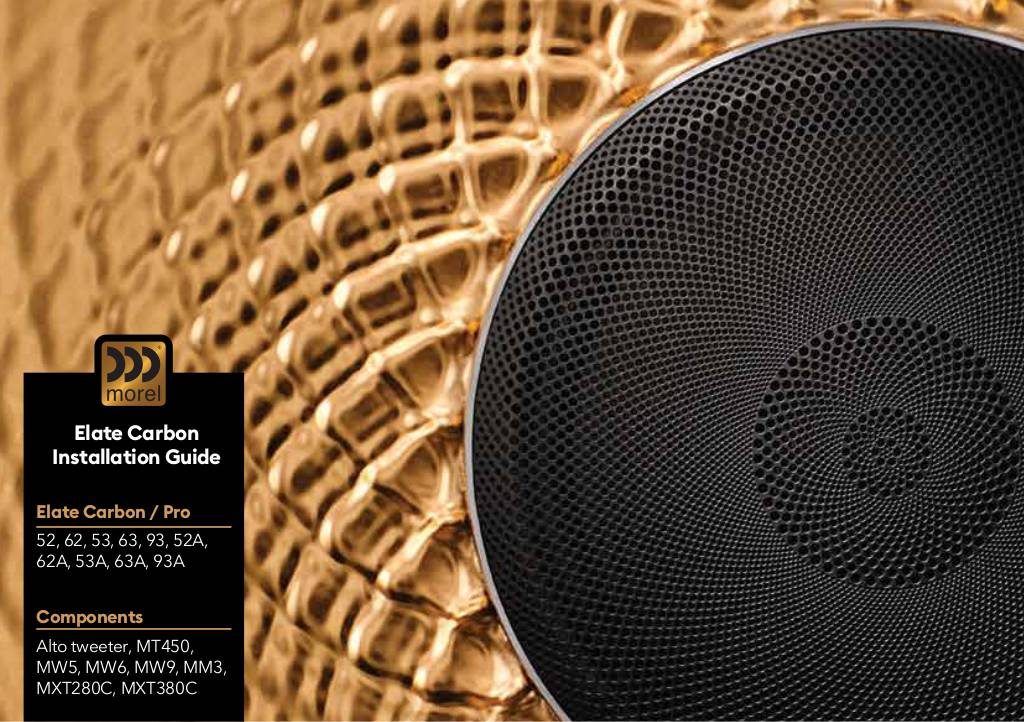

n-20240712172138-elate-carbon-new-manual-v2-for-web.pdf

Morel ELATE CARBON 53 Technical Specifications

  • 3-way speaker system
  • Woofer diameter 130mm (5¼")
  • Woofer and midrange with carbon fiber cone
  • Tweeter with Acuflex dome
  • Power 160 Watt RMS / 1000 Watt max
  • Sensitivity 85 dB
  • Frequency response 40-25000
  • Crossover MXT380C
€ 2520,00 Price incl. VAT
