EL-C5.2 Experience line two-way kit

Rainbow

Discontinued

Your price:
€ 99,00
Price per single item (VAT included)
Type
2-way separate kit
Frequency Response
60 - 20.000 Hertz
Woofer Size
130 mm
Tweeter Size
35 millimetri
MAX Power
120 Watt
RMS Power
80 Watt
Sensitivity
90 dB
Impedance
4 Ohm
Woofer Material
Polipropilene
Tweeter Material
Cupola in seta

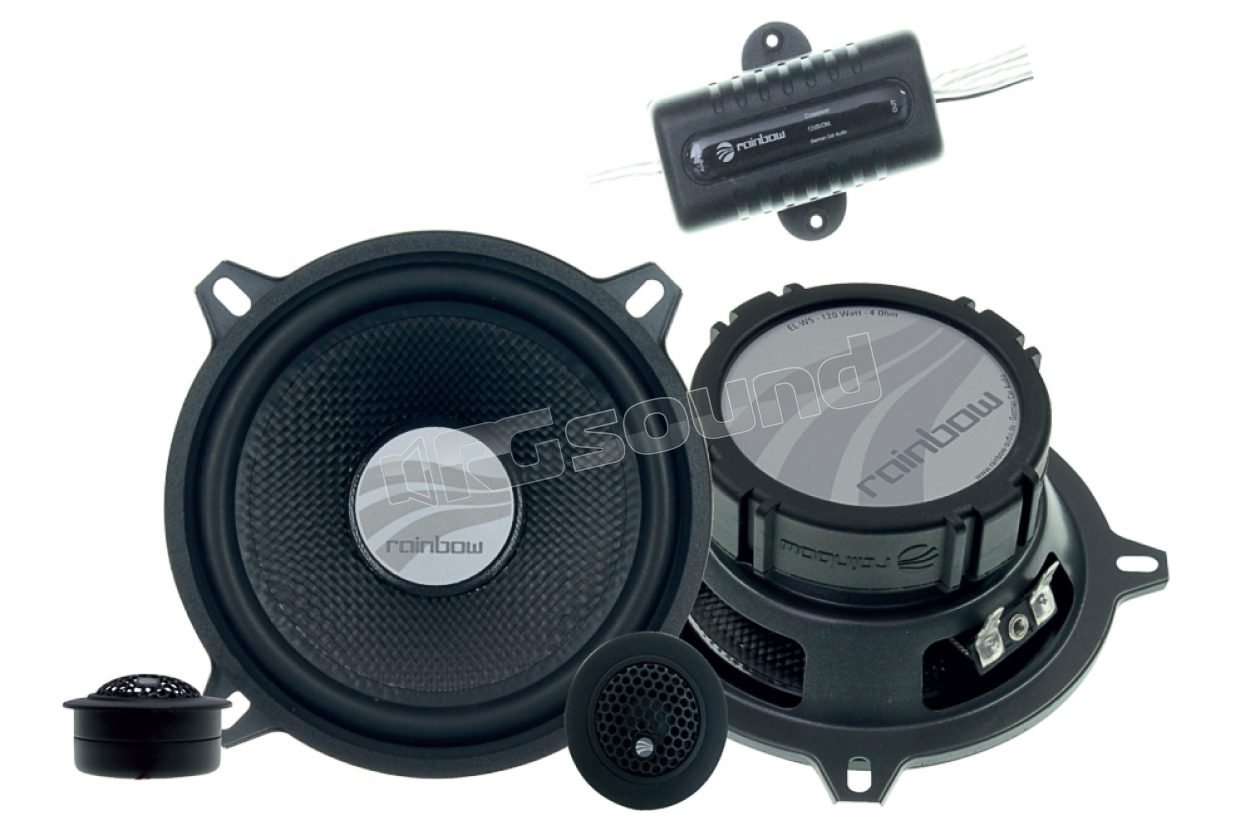

Rainbow EL-C5.2 two-way kit composed of a pair of EL-W5 woofers of 130mm, a pair of EL-T19 tweeters of 19mm and dedicated crossovers.

The Rainbow speakers of the Experience line represent the introduction to the Rainbow world, in addition to guaranteeing a good quality-to-price ratio, among their strengths are the technical characteristics for the reproduction of balanced sounds and their standard dimensions to facilitate installation.

The butyl rubber at the edge of the cone controls its movement. Furthermore, the EL-W5 woofer has an innovative dust cap module in reinforced natural fiber for optimal frequency response.

The EL-T19 tweeters of 19 millimeters combine their dome in mixed silk with natural fiber with a powerful neodymium magnet.

In-line crossover with high quality film capacitor and low-loss coil. 12 dB/octave filter, attenuation for the tweeter.

Technical characteristics EL-C5.2 kit

Maximum power 120 Watt

RMS power 80 Watt

Minimum amplifier power 30 Watt

Sensitivity 90 dB 1W/1m

Frequency response 60 - 20.000 Hz

Impedance 4 Ohm

Slope 12 dB/Oct.

Crossover frequency 5.200 Hz

Tweeter attenuation 2x

DL-W5 woofer characteristics

Maximum power 120 Watt

RMS power 80 Watt

Minimum amplifier power 30 Watt

Sensitivity 90 dB 1W/1m

Frequency response 60 - 8.000 Hz

Impedance 4 Ohm

Diameter Ø 130 mm

External diameter Ø 153 mm

Installation hole Ø111 mm

Mounting depth 52 mm

EL-T19 tweeter characteristics

Maximum power 150 Watt

RMS power 100 Watt

Sensitivity 90 dB 1W/1m

Frequency response 3.000 - 20.000 Hz

Impedance 4 Ohm

Slope 12 dB/Oct. / 24 dB/Oct.

Crossover frequency 4.800 Hz

Diameter Ø 35 mm

External diameter Ø 45 mm

Installation hole Ø 24 / 39 mm

Mounting depth 3 / 15 mm
