ECX 570.5

Hertz

Discontinued

Your price:
€ 86,00
Price per pair (VAT included)
Type
Coaxial
Speaker Size
5x7''
Coaxial Type
2-way
Frequency Response
60-23 Hertz
MAX Power
210 Watt
RMS Power
70 Watt
Sensitivity
94 dB
Impedance
4 Ohm
Woofer Material
Fibra di cellulosa
Tweeter Material
PEI

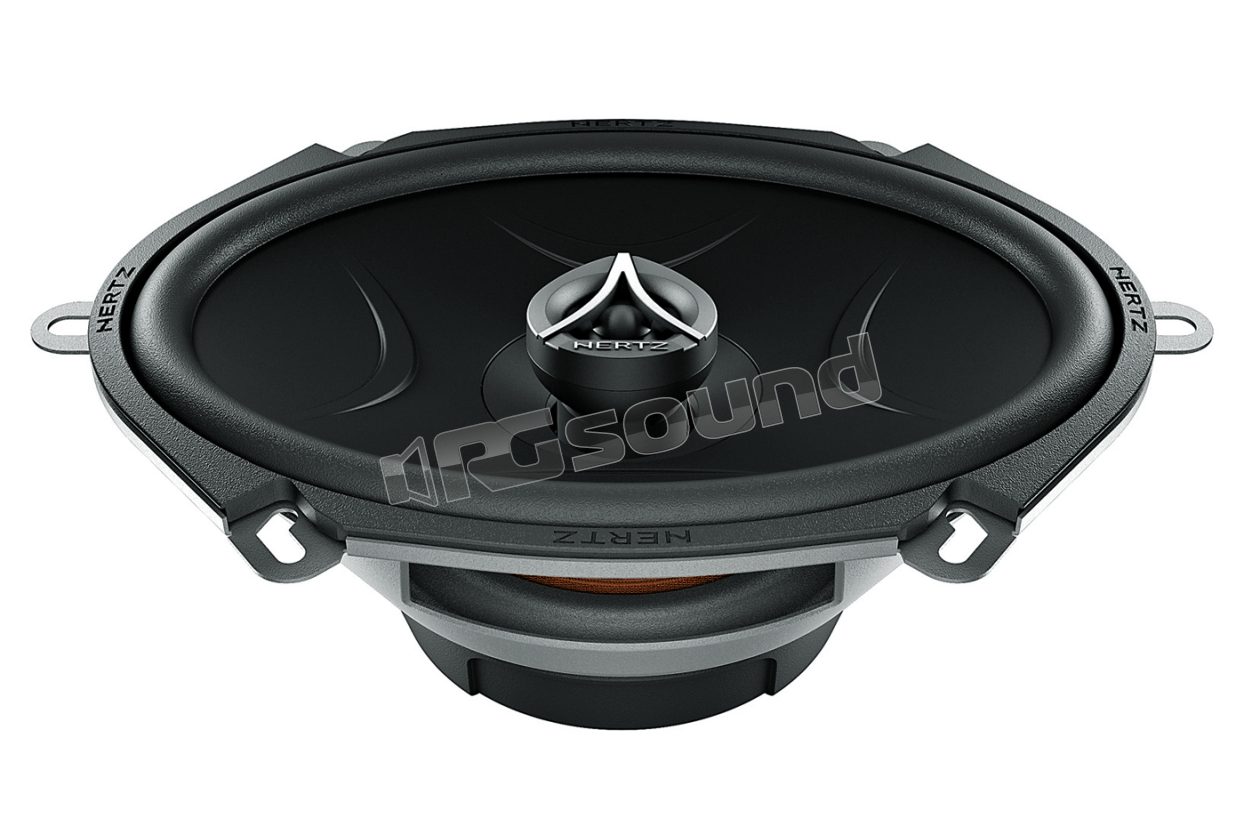

165 mm Two-Way Coaxial Speakers from the new Energy series - Max Power 210 W

The Energy.5 coaxial speakers are the solution for those who want to reproduce a wide range of frequencies without resorting to separate components: the coaxial tweeter completes the woofer response by optimizing installation space requirements.
Neodymium tweeter with integrated crossover, cellulose membrane reinforced with deep stiffening ribs and careful tuning of the motor assembly contribute to enhancing sound linearity, off-axis response and tonal quality. The RHFC technology allows you to orient the tweeter, tilted 10°, to control dispersion and approximate an ideal frequency response.

The Energy.5 line enhances the innovations introduced in the four version and becomes even more installable, even in standard configurations, and more high-performing.

Each Energy.5 component has been developed with the objective of optimizing installation space requirements: a careful study of the woofer and coaxial profiles has led, in the former, to more compact baskets and motor assemblies, and in the latter, to an alignment between the tweeter height and that of the woofer surround, reducing those thicknesses which, although minimal inside a door panel, become fundamental.



FEATURES
1. Cellulose fiber cone with water-repellent treatment; butyl rubber suspensions.
2. Voice coil made of pure copper, wound on aluminum support, for exceptional thermal and mechanical capacity.
3. Oversized magnet assembly for energetic control of the moving system.
4. Low carbon polar plates for maximum magnetic permeability and high thermal dissipation.
5. Magnet coated with rubber, to ensure mechanical damping of the basket and motor assembly, and protect it from possible abrasion and damage.
6. Basket to DIN standards, coated with anti-abrasion and anti-scratch protective material.
7. High current terminals, tin-plated.
8. Silver-plated braids, for maximum reliability and conductivity.
9. Basket-motor assembly coupling in epoxy glue.
10. Nomex spider with shape memory, for constant and reliable performance.
11. Tweeter with high energy neodymium magnet.
12. RHFC, Rotary High Frequency Contour; adjustable system for the best off-axis dispersion and for a perfect frequency response towards any listening point.

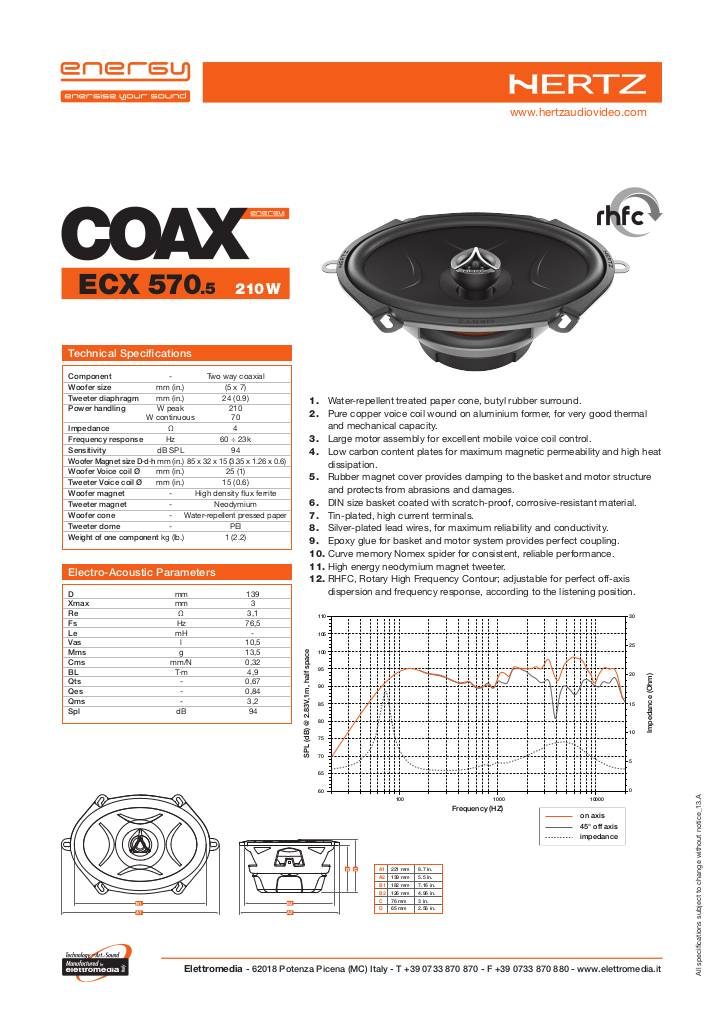

Scheda tecnica

20130711174551-hertz-energy-ecx570-5-tech.pdf
Discontinued
