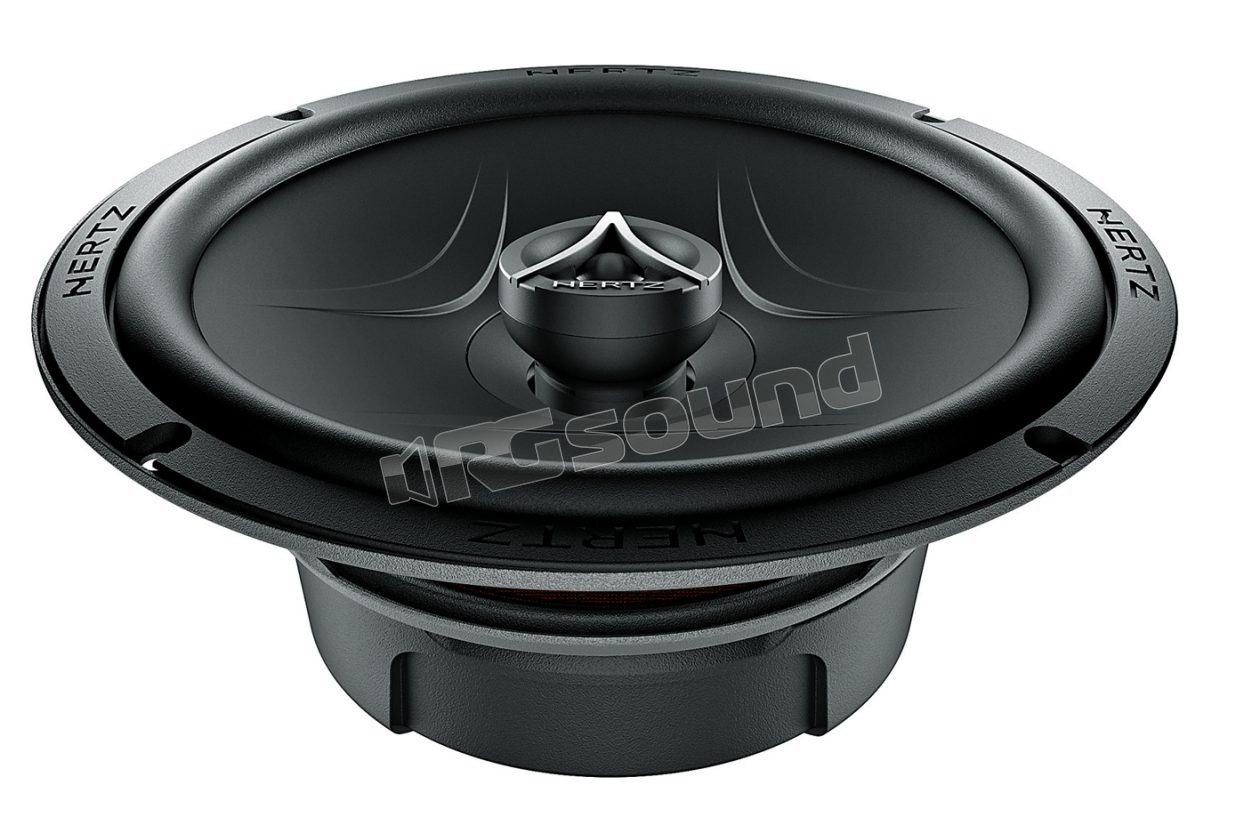

ECX 165.5

Hertz

Discontinued

Your price:
€ 79,10
Price per pair (VAT included)
Type
Coaxial
Speaker Size
165 mm
Coaxial Type
2-way
Frequency Response
60-23 Hertz
MAX Power
210 Watt
RMS Power
70 Watt
Sensitivity
94 dB
Impedance
4 Ohm
Woofer Material
Fibra di cellulosa
Tweeter Material
PEI

Two-Way 165 mm Coaxial Speakers from the New Energy Series - Max Power

The Energy.5 line enhances the innovations introduced in the four version and becomes even more installable, even in factory provisions, and more performing. Every Energy.5 component was developed with the goal of optimizing installation dimensions: careful study on the profile of woofers and coaxials led, in the former, to baskets and more compact motor groups, and in the latter, to an alignment between the height of the tweeter and that of the woofer surround, reducing those thicknesses that although minimal inside a door become fundamental.

The Energy.5 coaxials are the solution for those who wish to reproduce a wide range of frequencies without resorting to the use of separate components: the coaxial tweeter completes the woofer response optimizing installation dimensions.


Neodymium tweeter with integrated crossover, cellulose membrane stiffened with deep reinforcements and careful tuning of the motor group, contribute to enhancing sound linearity, off-axis response and tonal quality. The RHFC technology allows you to orient the tweeter, tilted at 10°, to control dispersion and approximate an ideal frequency response.

FEATURES

1. Cellulose fiber cone with water-repellent treatment; suspensions in butyl rubber.
2. Moving coil in pure copper, wound on aluminum support, for exceptional thermal and mechanical capacity.
3. Oversized magnetic group for energetic control of the moving assembly.
4. Low-carbon polar plates for maximum magnetic permeability and high thermal dissipation.
5. Magnet coated in rubber, to ensure mechanical damping of the basket and motor group, and protect it from possible abrasions and damage.
6. DIN-standard basket, coated with protective anti-abrasion and anti-scratch material.
7. High-current terminals, tin-plated.
8. Silver-plated braids, for maximum reliability and conductivity.
9. Basket-motor group coupling with epoxy adhesive.
10. Nomex spider with shape memory, for constant and reliable performance.
11. Tweeter with high-energy neodymium magnet.
12. RHFC, Rotary High Frequency Contour; adjustable system for better off-axis dispersion and for a perfect frequency response to any listening point.

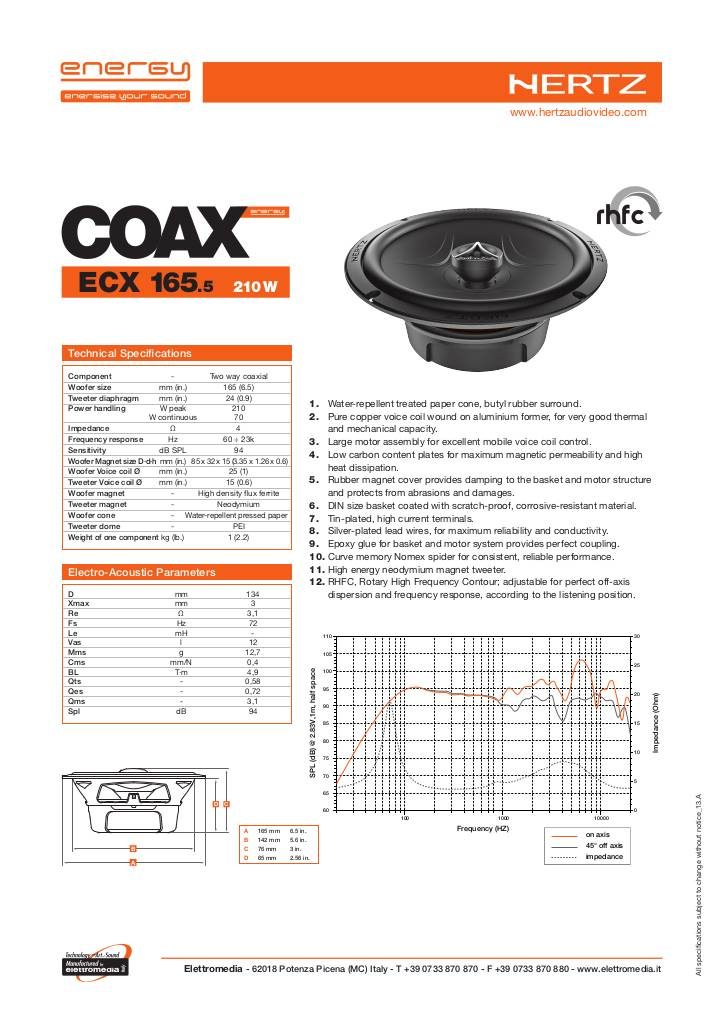

Scheda tecnica

20130711173641-hertz-energy-ecx165-5-tech.pdf
Discontinued
