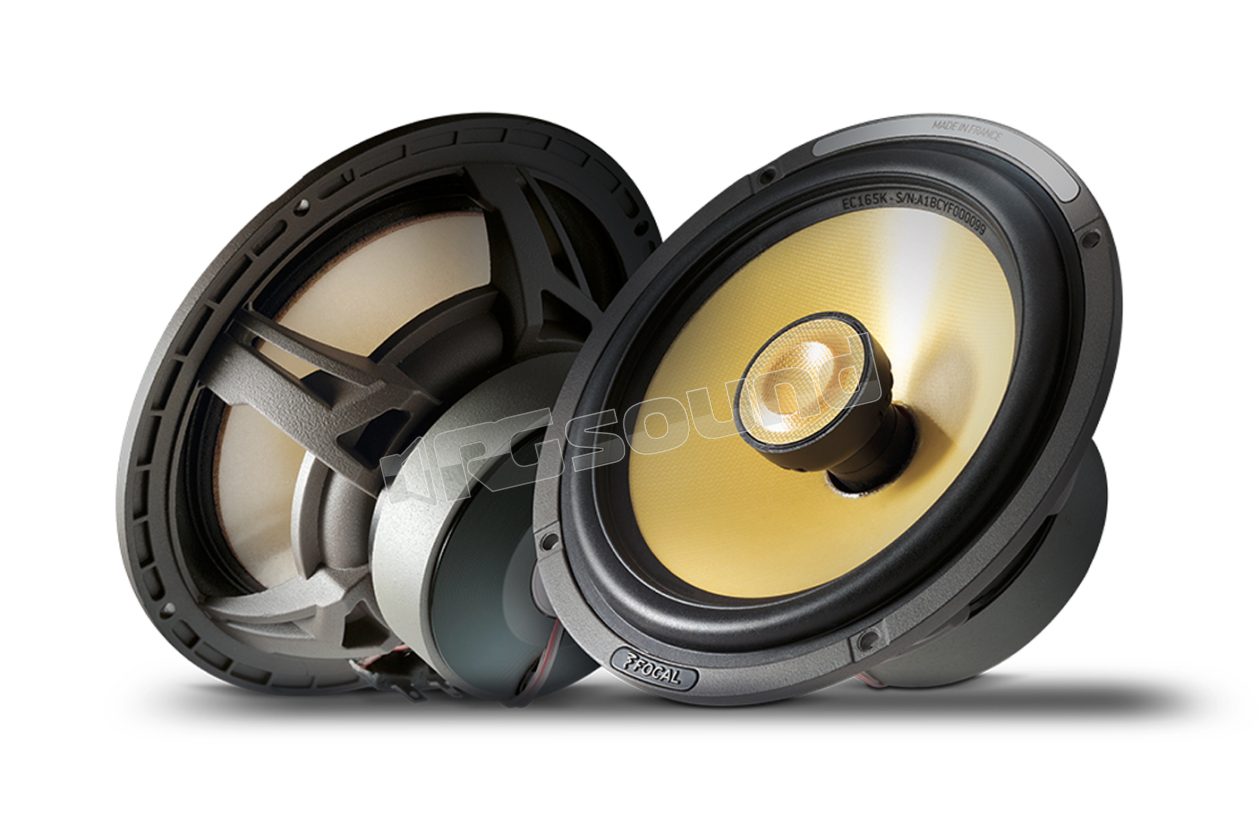

EC165K 16.5cm 2-way coaxial speakers

Focal

Discontinued

Your price:
€ 419,00
Price per pair (VAT included)
Type
Coaxial
Speaker Size
165 mm
Coaxial Type
2-way
Frequency Response
60 - 22.000 Hertz
MAX Power
160 Watt
RMS Power
80 Watt
Sensitivity
93 dB
Impedance
4 Ohm
Woofer Material
Cono Kevlar
Tweeter Material
Cupola in fibra

Focal EC 165 K pair of 165mm coaxial speakers K2 Power series, nominal power 80W RMS, with Kevlar cone and inverted dome tweeter. Speaker grilles included in the package.

Focal EC 165 K coaxial characteristics

The speakers of the K2 Power line are equipped with Kevlar cones that incorporate all the ideal qualities for excellent sound reproduction, they are light but rigid and with excellent damping to provide dynamic sound and perfect definition. The cones are fixed to the frame through TMD suspensions whose exclusive design removes unwanted resonances and reduces the effects of distortion.

The two TKM inverted dome tweeters are made of aramid fibers. Their exclusive "M" profile is designed to control dome deformation and reproduce high frequencies with precision up to 22 kHz. The frames have been redesigned to make them more robust and more compact, their depth has been reduced as much as possible to 74 mm (3"). These tweeters are equipped with built-in crossover.

Every component of the K2 Power speakers is the result of long acoustic research to increase power and precision performance.

KEVLAR® cone precision and dynamics

The K2 Power Kevlar® cone, a unique Made In Focal product, is to this day second to none. Composed of an expanded sandwich structure, ultralight, which combines a thin layer of Kevlar® aramid fibers and a fiberglass layer.

"M" shaped tweeter for precise and soft highs

The new K2 Power TKM tweeter is equipped with an exclusive "M" shaped structure. This new generation aramid fiber inverted dome tweeter provides high precision, and its combination with the "push-pull" motor with IAL2 technology increases the frequency response extension and provides extraordinary harmonic balance.

TMD suspensions goodbye to distortions

Initially developed for high fidelity speakers, the TMD suspension (Tuned Mass Damper) features a special structure designed to control unwanted resonances and drastically reduce harmonic distortion caused by the stress the cone is subject to. This patented technology provides well-defined midrange reproduction.

"Radial VC" cooling system for higher SPL

The new radial VC cooling system for speaker coils expels hot air from the coil to the bottom of the magnet through 6 holes. This improves temperature control on the coil, limiting the effects of thermal compression and improving reliability. This greatly increases speaker efficiency. Additionally, it improves dynamics and produces a more powerful sound.

Technical specifications Focal EC 165 K

Diameter 165 mm (6-1/2″)

Voice coil diameter 25 mm (1")

Voice coil height 15 mm (0-9/16″)

TKM tweeter ("M" profile inverted dome)

Sandwich cone

Tuned Mass Damper suspensions (TMD)

Maximum power 160 W

Nominal power 80 W RMS

Sensitivity (2.83V/1m) 93 dB

Frequency response 60Hz - 22 kHz

Impedance 4 Ω

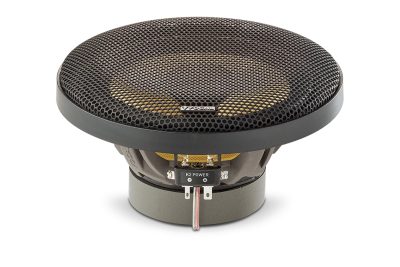

Grilles included in the package

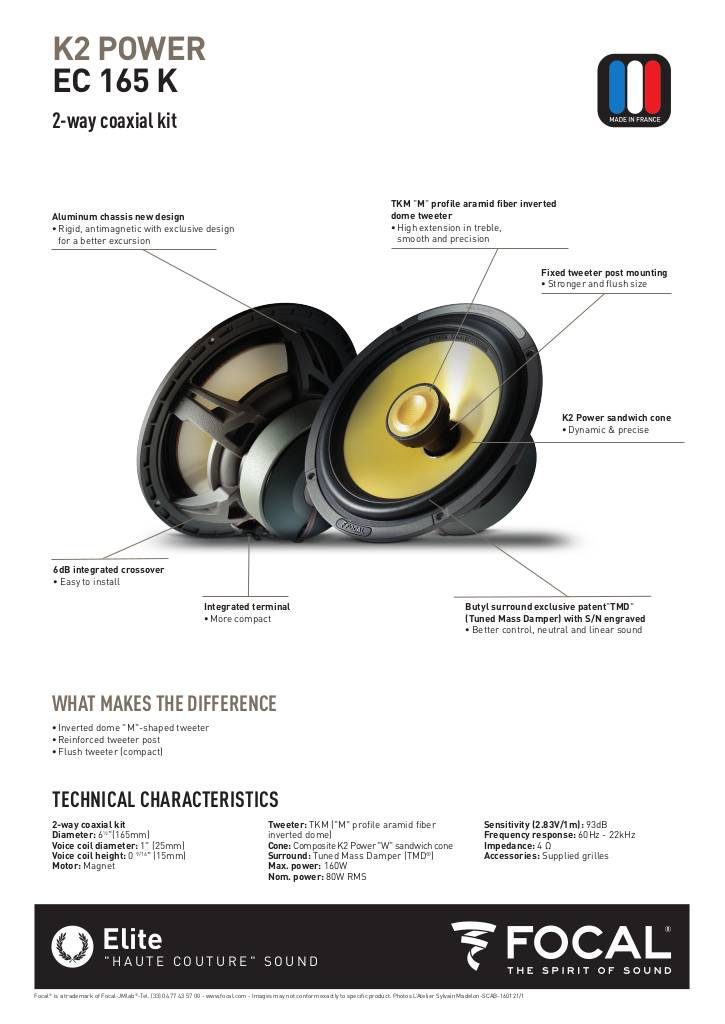

Scheda prodotto

20160428112530-fp-k2power-ec165k-gb.pdf

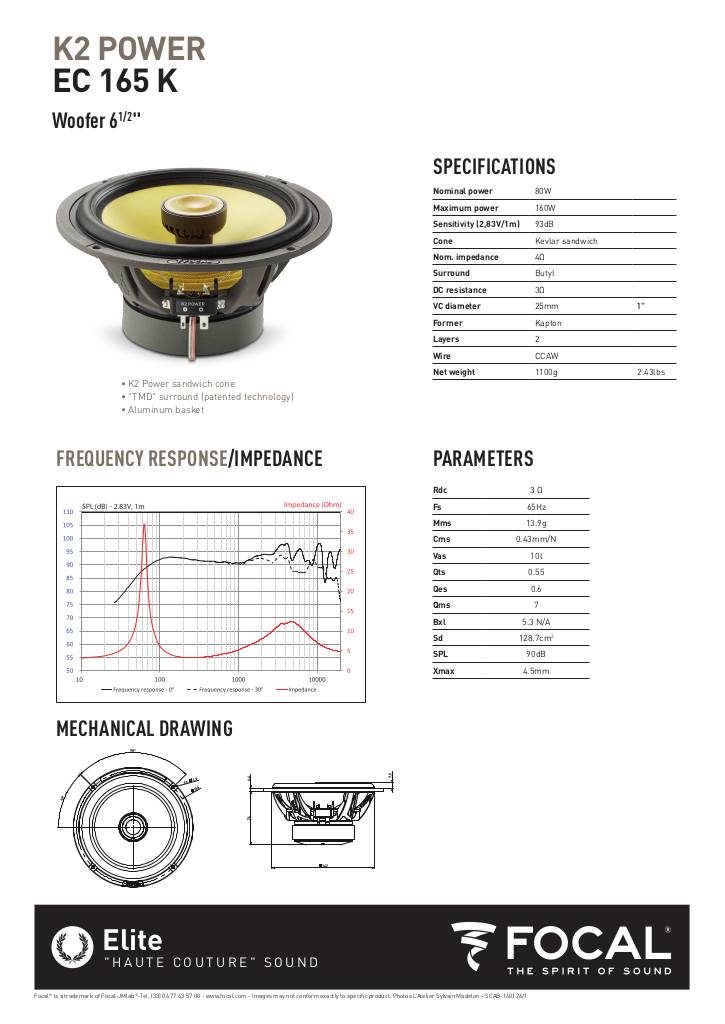

Specifiche tecniche

20160428112530-ft-k2power-ec165k.pdf
Discontinued
