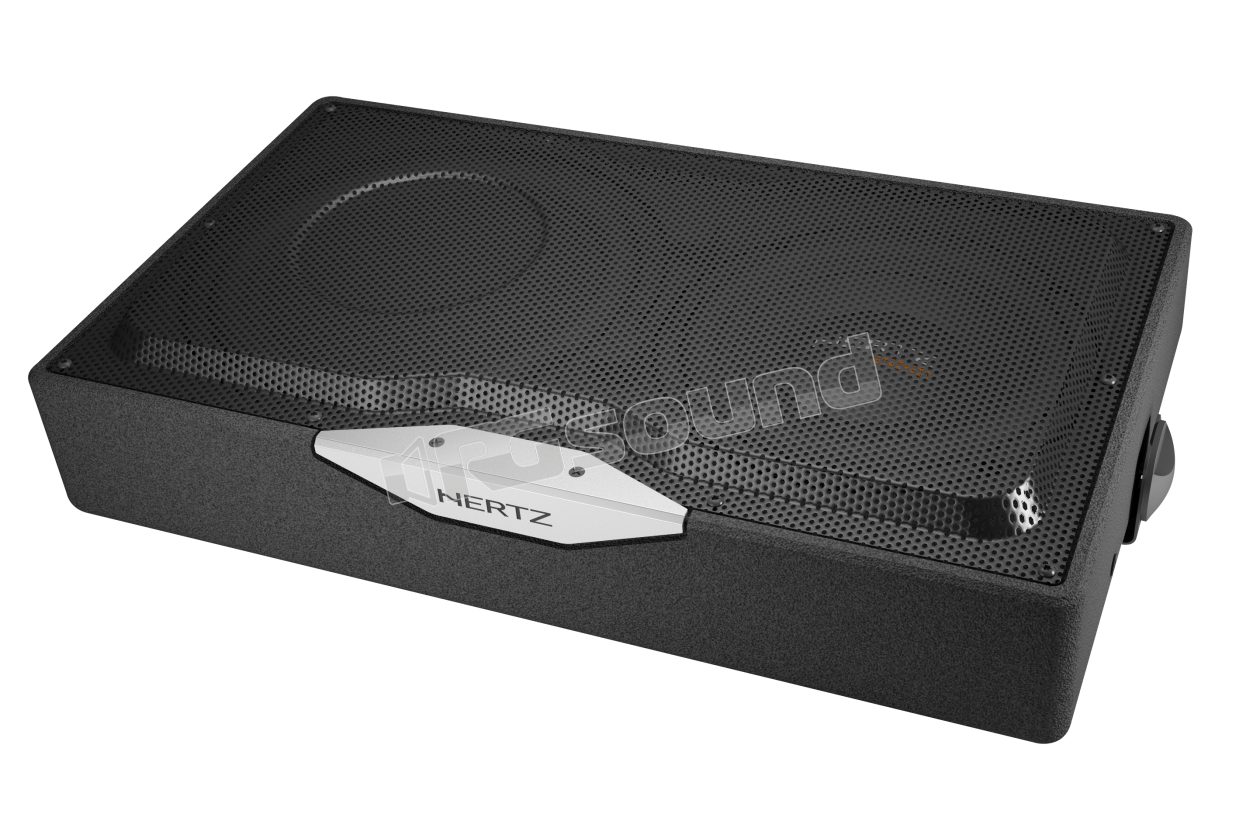

EBX F20.5 Ultra Flat

Hertz

Discontinued

Your price:
€ 179,00
Price per single item (VAT included)

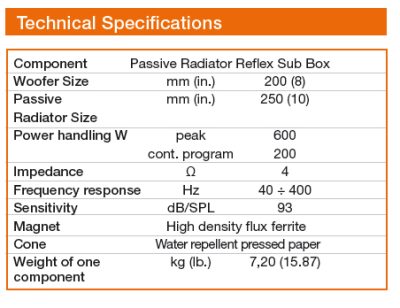

Type
Subwoofer in enclosure
Speaker Size
200 mm
MAX Power
600 Watt
RMS Power
200 Watt
Frequency Response
40 - 400 Hertz
Sensitivity
93 dB
Impedance
4 Ohm
Weight
7,2 Kg
Enclosure Size
520 x 320 x 108 mm
Enclosure Type
Reflex Enclosure

EBX F20.5 Reflex Sub Box 200mm ultra-flat - 4 ohm RMS Power 200 W and Max 600 W

  • 1. Ultra Flat profile, for minimum cabin space and hidden installations.
  • 2. Box built in MDF 15/18 mm with internal reinforcements, to minimize system losses.
  • 3. Inclined bottom panel to reduce internal resonances and facilitate installation.
  • 4. Passive radiator with low-loss foam surround, for powerful and clean emission.
  • 5. Low-profile subwoofer with high excursion, for high SPL with minimal distortion.
  • 6. Metal mesh grille, for aggressive look and complete protection of components.
  • 7. Reversible Hertz logo, adaptable to different installation positions.
  • 8. Patented power connection terminals, for maximum safety and functionality
  • 9. Easy-remove metal mounting bracket, for quick disassembly and clean, reliable installation.

Ultra-compact EBX F20.5 subwoofer: reflex box sub with passive radiator at reduced height (108 mm) for use in tight and limited spaces.

The design of these compact subwoofers with high performance will allow you to equip even the most difficult vehicles with sound

The flat EBX F20.5 subwoofer was designed to offer installation versatility and outstanding bass performance, without any compromise. Long-throw voice coil, high-density flux magnet and a reflex system with passive radiator with 250 mm woofer made it possible to create a subwoofer with impressive power combined with exceptional musicality. The enclosure built in MDF 15/18 mm thick is reinforced with internal bracing and covered with a dense carpet to minimize system losses. The reduced footprint and refined aesthetic finishes, with the reversible logo, make this boxed subwoofer adaptable to any installation solution.

Scheda tecnica

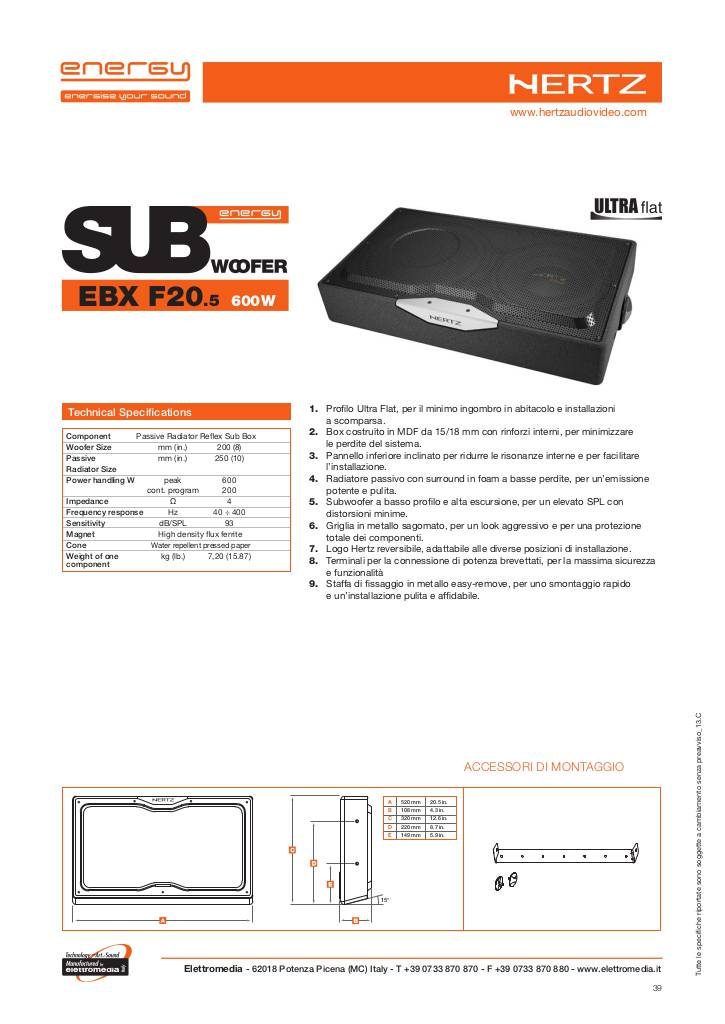

20130712173911-060604-hertz-cartellastampa-energy-13c-150dpi-39.pdf
