E30KX 30cm K2 Power sub

Focal

Discontinued

Your price:
€ 599,00
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
300 mm
MAX Power
1600 Watt
RMS Power
800 Watt
Frequency Response
25 - 500 Hertz
Sensitivity
86.5 dB
Impedance
4 Ohm
Weight
11 Kg
Installation Depth
172 mm
Woofer Material
Cono Kevlar

Focal E 30 KX subwoofer 30 cm K2 Power series, sandwich cone, rated power 800W, maximum power 1600W, impedance 4 Ohm.

Focal E 30 KX Features

E 30 KX is a very compact 30 cm (12") subwoofer, offering high power and exceptional reliability. This subwoofer has a surprising SPL of 86.5 dB despite its compact design. It is equipped with a Kevlar® cone, yellow in color, lightweight yet rigid and has excellent damping providing extremely dynamic bass.

The cone is fixed to the frame by means of a robust and fully reliable rubber suspension, whose exclusive shape has been optimized to provide very high excursion. The aluminum frame has been redesigned to facilitate the coil and all parts benefit from this excellent excursion, giving the subwoofer incisive and dynamic bass.

The oversized "Dual Magnet" ensures a mobile coil cooling system capable of improving cooling, performance and power of the subwoofer.

Progressive spider for greater linearity and precision

The K2 Power subwoofer progressive spider profile is designed to provide full-bodied bass at low levels and to increase linearity, precision of the dynamic range.

Rubber suspension

K2 Power robust rubber suspension for higher excursion. The exclusive shape of the suspension has been specifically designed to provide high excursion.

KEVLAR® cone precision and dynamics

The K2 Power Kevlar® cone, a unique Focal Made In product, is to this day second to none. Composed of an expanded sandwich structure, ultralight, which combines a thin layer of Kevlar® aramidic fibers and a layer of fiberglass.

"Radial VC" cooling system for greater SPL

The new radial VC cooling system for speaker coils expels hot air from the coil to the bottom of the magnet through 6 holes. This improves temperature control on the coil, limiting the effects of thermal compression and improving reliability. This significantly increases speaker efficiency. In addition, it improves dynamics and produces more powerful sound.

Technical Specifications Focal E 30 KX

Subwoofer diameter 300 mm (12″)

Voice coil diameter 65 mm (2-9/16")

Voice coil height 55 mm (2-3/16″)

Sandwich cone

Maximum power 1600 W

Rated power 800 W RMS

Sensitivity (2.83V/1m) 86.5 dB

Frequency response 25Hz - 500 kHz

Impedance 4 Ω

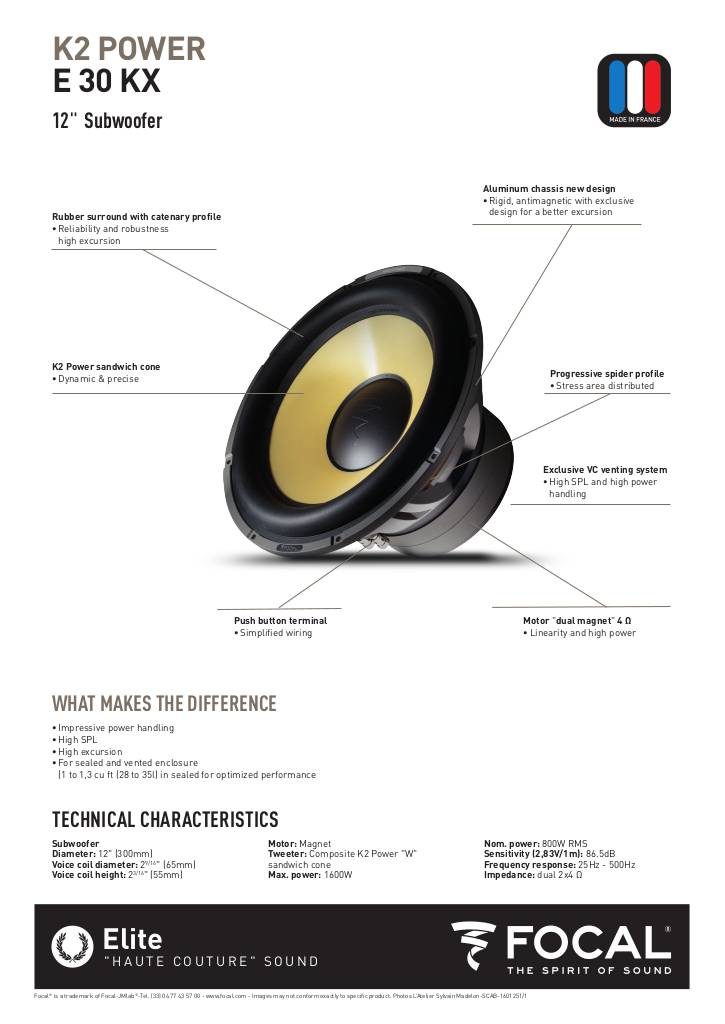

Descrizione

20160428170339-fp-k2power-e30kx-gb.pdf

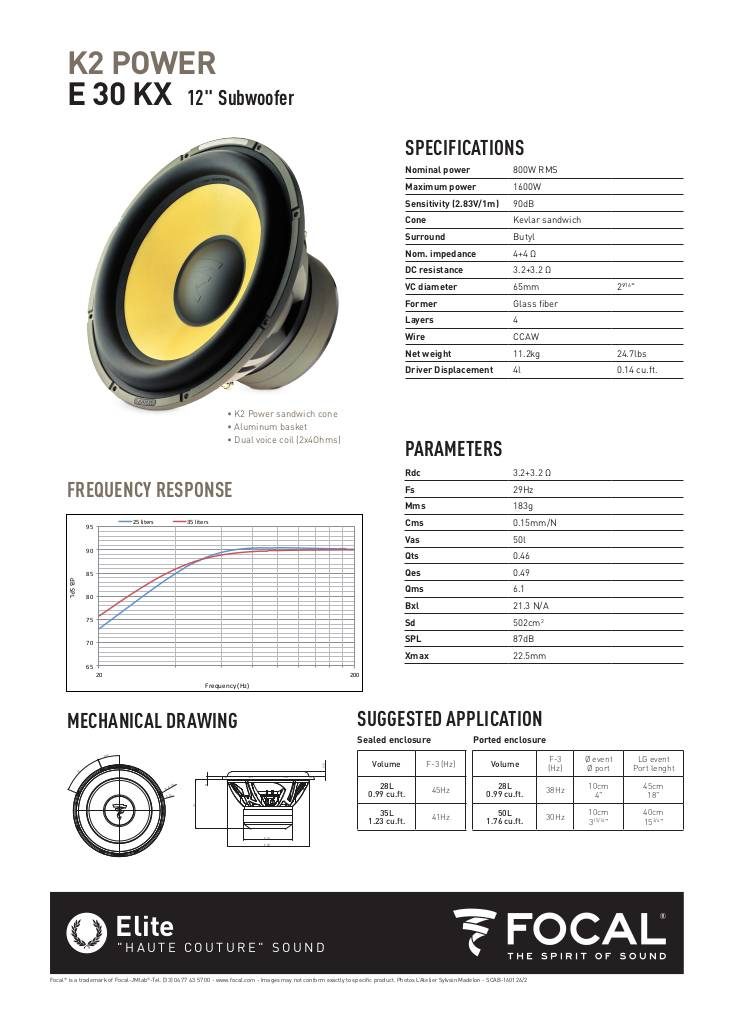

Specifiche tecniche

20160428170339-ft-k2power-e30kx-1.pdf
Discontinued
