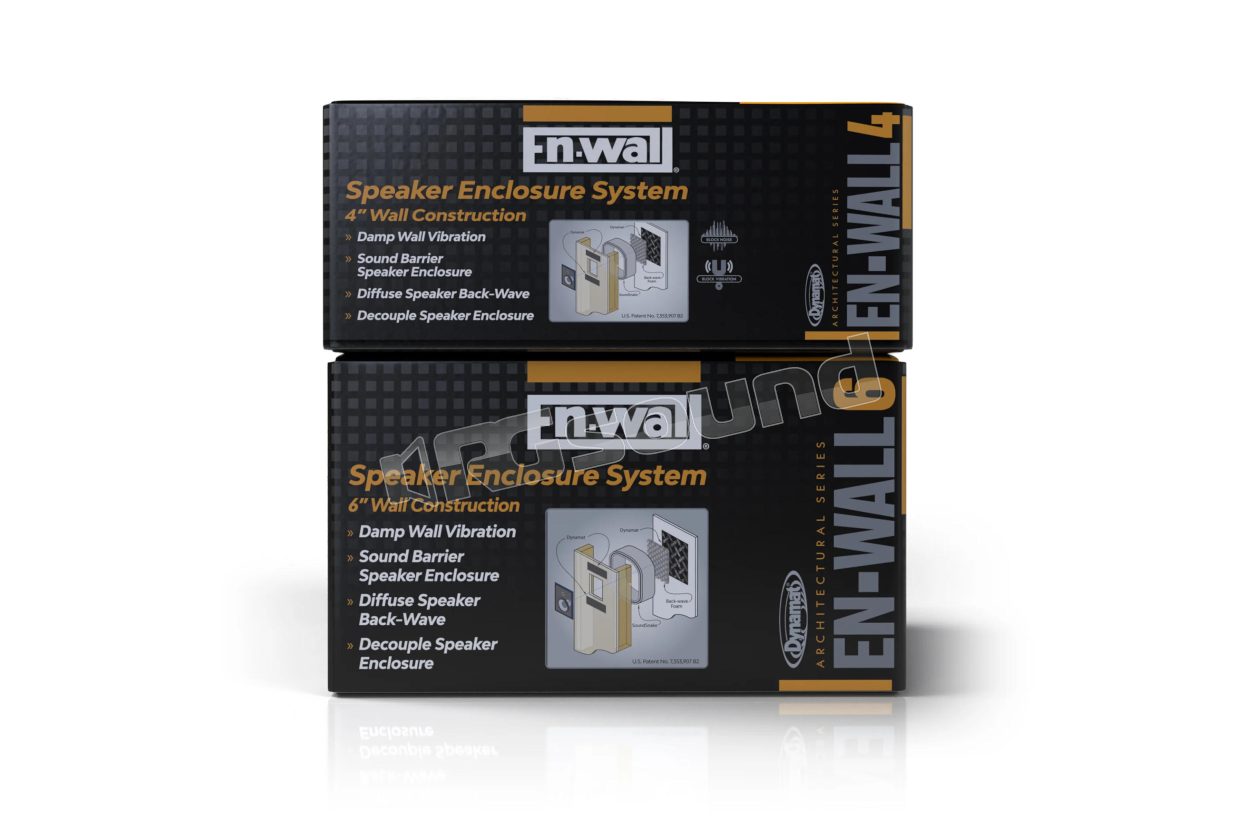

DYN50506 Dynamat En-Wall 6 Acoustic enclosure for drywall and in-wall speakers

Dynamat
Your price:
€ 99,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to

Dynamat DYN50506 En-Wall 6" Acoustic enclosure for drywall and in-wall speakers

Dynamat En-Wall is an acoustic enclosure system designed for in-wall speakers, developed to create a controlled rear chamber within drywall cavities. Unlike traditional installations, where the speaker works in an open and undefined cavity, En-Wall allows you to achieve a stable and predictable acoustic volume, improving sound performance and reducing sound dispersion in the structure.


How an acoustic box for walls works and what it is for

When a speaker is installed directly in a wall without an enclosure, sound propagates within the wall cavity, causing:

  • loss of control over low frequencies
  • non-linear acoustic response
  • sound transmission to adjacent spaces

Dynamat En-Wall creates a closed acoustic chamber behind the speaker. This allows you to:

  • stabilize the speaker's working volume
  • improve frequency response
  • reduce sound dispersion in wall cavities
  • limit sound transmission between rooms

The result is a more predictable and controlled system, both in residential and professional settings.

When to use it, where to install it and how to apply it

En-Wall is designed for integrated audio installations in drywall or cavity wall structures. Typical applications:

  • in-wall speakers
  • home theater systems
  • multiroom systems
  • residential and commercial spaces
  • meeting rooms and professional spaces

It is particularly suitable when:

  • you want to improve speaker acoustic performance
  • you want to reduce sound transmission between spaces
  • you work on light walls (drywall)

Installation

The system is installed inside the wall, before mounting the speaker. Procedure:

  1. prepare the opening in the drywall
  2. insert the enclosure inside the wall cavity
  3. fix the system to the wall structure
  4. connect the audio wiring
  5. install the speaker in the designated hole

The box is designed to integrate with standard stud structures.

Available versions

Dynamat En-Wall is available in two variants, designed to adapt to different wall depths:

  • DYN50504 - 4" Version
    • for walls with reduced depth
    • ideal for compact installations
  • DYN50506 - 6" Version
    • for walls with greater depth
    • offers superior acoustic volume
    • better low frequency extension

The two versions share the same operating principle, but differ in internal volume and structural compatibility.

Dynamat En-Wall is a system designed to improve the performance of in-wall speakers through the creation of a controlled acoustic chamber within walls. Compared to installations without an enclosure, it allows you to achieve more predictable response, reduce sound dispersion and improve acoustic integration in spaces. It is a technical solution designed for careful installations, where sound control and system quality are priorities.

Dynamat
DYN10005 Hardwood Dynaroller Wooden roller for applying sound deadening materials Dynamat
Dynamat DYN10005 Hardwood Dynaroller Wooden roller for applying sound deadening materials
Price incl. VAT
€ 18,90
Dynamat
DYN10007 Heavy Duty Dynaroller Professional rubber roller for sound deadening materials Dynamat
Dynamat DYN10007 Heavy Duty Dynaroller Professional rubber roller for sound deadening materials
Price incl. VAT
€ 26,90
Dynamat
DYN13100 DynaTape Aluminum adhesive tape for sealing thermal-acoustic materials Dynamat
Dynamat DYN13100 DynaTape Aluminum adhesive tape for sealing thermal-acoustic materials
Price incl. VAT
€ 17,90

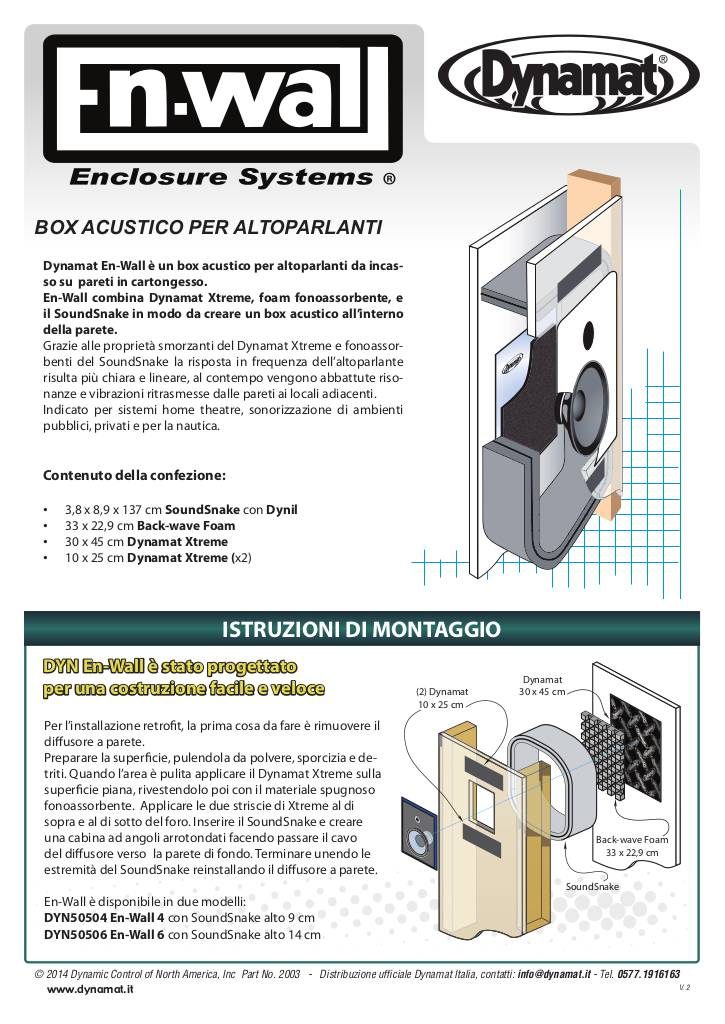

Manuale di istruzioni

20141027103710-dynamat-en-wall-low.pdf

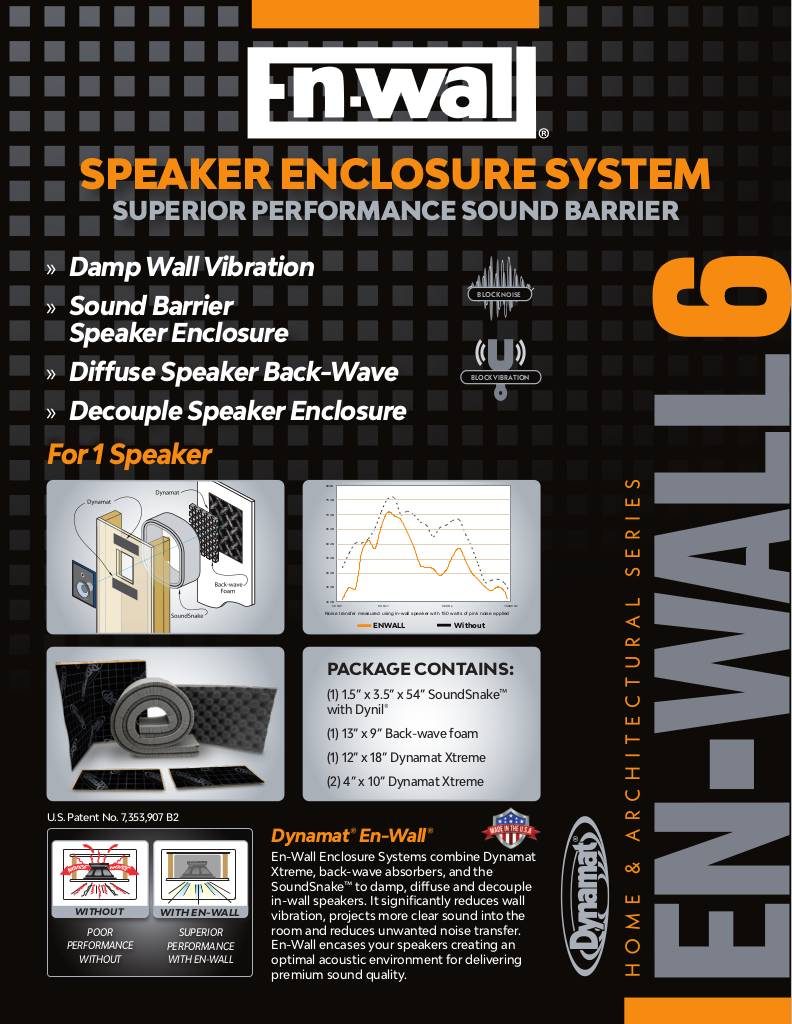

Scheda tecnica

n-20240222152117-enwall-datasheet.pdf

SoundSnake with Dynil 3.8 x 14 x 137 cm Back-wave Foam 33 x 22.9 cm Dynamat Xtreme 30 x 45 cm 2x Dynamat Xtreme 10 x 25 cm

DYN50506 En-Wall 6 Technical Specifications

Extreme

  • Black butyl core with 4 mil aluminum bonding layer, self-adhesive with release backing.
  • Mass 0.45 lbs/ft.2 (2.20 kg/m2)
  • Adhesive peel strength 42.6 lb./in. (74.8 N/cm)
  • Thickness 0.067" (1.7 mm)
  • Temperature range (optimal performance) 14ºF to +140ºF (-10ºC to +60ºC)
  • Temperature range (resistance) -65ºF to +300ºF (-54ºC to +149ºC)

BackWave Foam

  • Dimensions 33 cm x 22 cm x 25 mm
  • Mass 0.78 kg/m2
  • Density 0.125 kg/m3
  • Tensile strength 15 psi
  • Tear strength 1.9
  • Thermal conductivity (R) 1.9 (hr-ft²-deg.F/BTU)
  • Standard Meets UL94 HF-1 standard
  • Temperature range (resistance): -40ºF to +225ºF (-40ºC to +107ºC)

Sound Snake

  • Foam
    • Thickness 1.5" (38.1 mm) total
    • Density 2.0 lb/ft3 (0.125 kg/m3)
    • Tensile strength 15 psi
    • Tear strength 1.9
    • Thermal conductivity (R) 1.9 (hr-ft²-deg.F/BTU)
    • Standard Meets UL94 HF-1 standard
    • Temperature range (resistance) -40ºF to +225ºF (-40ºC to +107ºC)
  • Dynil
    • Black Flexivinyl barrier
    • Color: anthracite gray
    • STC: 28
    • Mass 1 pound per square foot
    • Thickness 0.09 inches
    • Standard Meets UL94-V0 standard
    • Temperature range (resistance): -40ºF to +220ºF (-40ºC to +105ºC)
    • Water and mineral oil resistant
€ 99,00 Price incl. VAT
