DYN50110 DynaPad Roll Multilayer thermal and acoustic insulation for car floors

Name: DYN50110 DynaPad Roll Multilayer thermal and acoustic insulation for car floors
Brand: Dynamat
SKU: 57-18923
Price: 856.50 EUR
Availability: BackOrder

DYN50110 DynaPad Roll Multilayer thermal and acoustic insulation for car floors Dynamat

Official Italian warranty

Your price:

€ 856,50

Price per single item (VAT included)

Available on backorder

Calculating shipping costs to

Product code: #018923
Type: Accessories for Speakers and Subs - Sound Deadening, Damping Materials and Accessories
Manufacturer: Dynamat
Website: https://www.dynamat.it

Dynamat DYN50110 DynaPad Roll Thermal and acoustic insulation - Roll 137cm x 7.6 meters (10.41 sqm), thickness 12 mm.

DynaPad is a composite material designed for acoustic and thermal insulation of horizontal vehicle surfaces. Unlike vibration damping materials, it acts as a barrier against noise and heat coming from the road, engine and exhaust. The multilayer structure allows you to effectively reduce low frequencies and heat transfer through the floor pan, improving overall cabin comfort.

How a multilayer thermal-acoustic insulator works and what it is for

Low frequency noise (rolling, exhaust, structural vibrations) is the hardest to attenuate because it easily passes through surfaces.

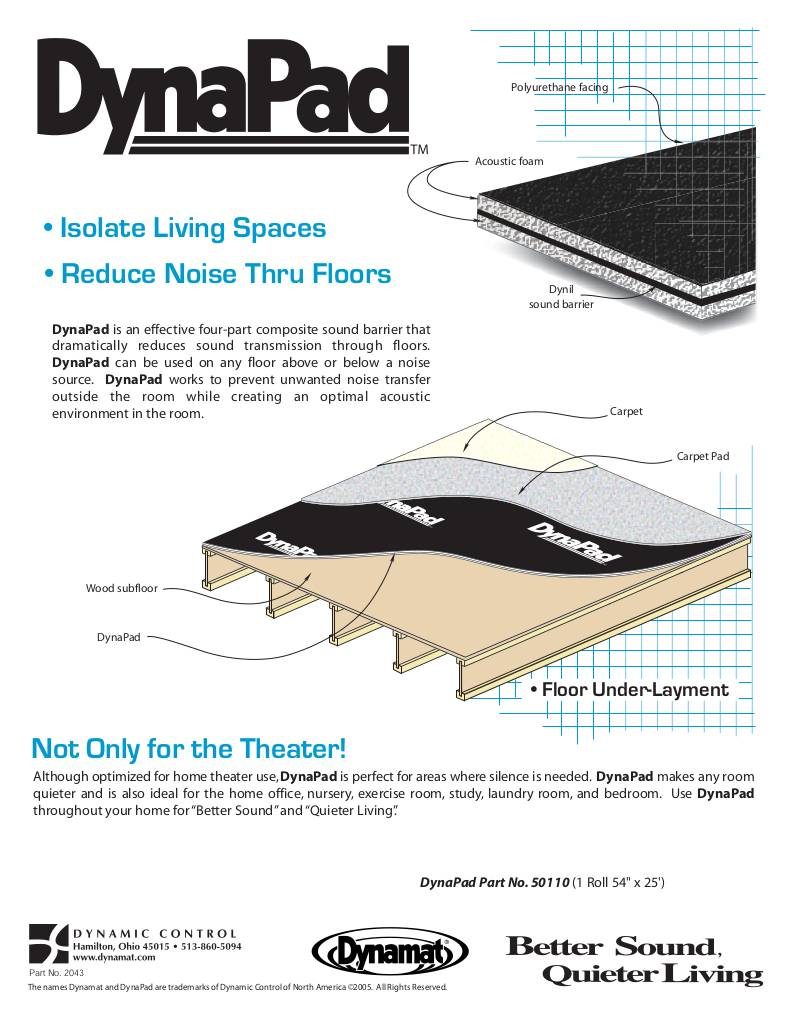

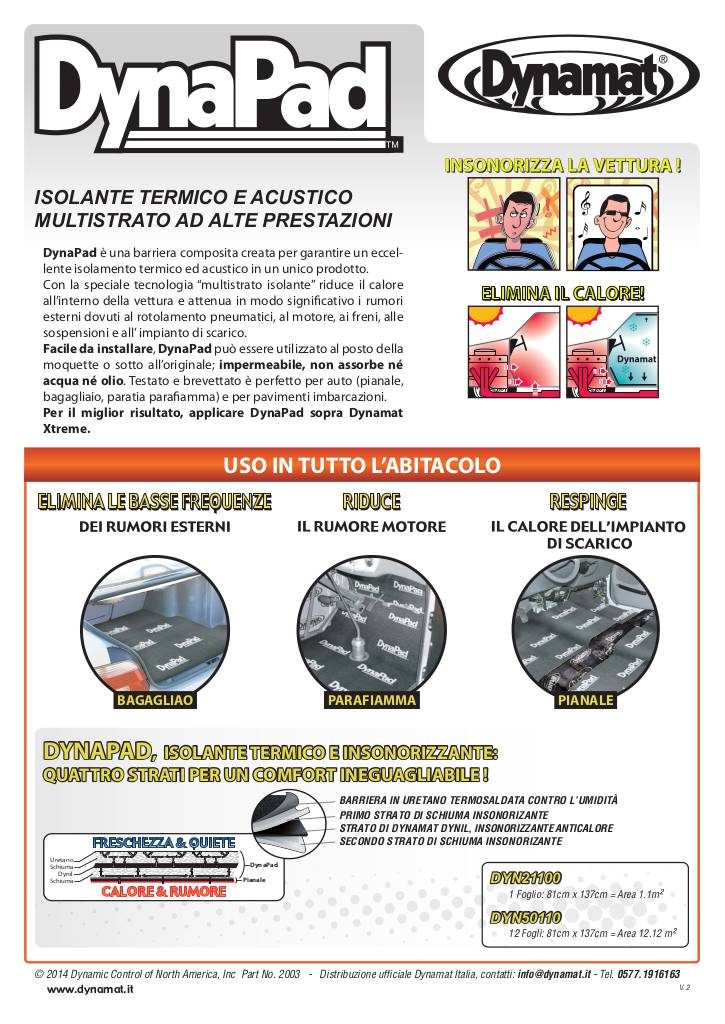

DynaPad uses a four-layer composite structure:

central high-mass barrier (vinyl)
two layers of acoustic foam
protective surface layer
This system creates an effect:
absorption - barrier - absorption

which allows to:

block noise transmission (especially low frequencies)
attenuate rolling and exhaust noise
reduce heat transfer from the vehicle floor
improve internal acoustic comfort

Its effectiveness comes from the ability to create a physical separation between sound source and cabin.

When to use it, where to apply it and how to install it

DynaPad is designed mainly for applications on horizontal surfaces and areas in contact with the vehicle floor.
Typical applications:

cabin floor pan
trunk
firewall partition
vehicle and boat floors

It is particularly suitable when:

you want to reduce rolling noise
you want to insulate heat from the exhaust
you are making a complete soundproofing system

To achieve maximum performance, use above a damping layer (e.g. Dynamat Xtreme) is recommended.

Installation

The material can be easily cut and adapted to the surface.
Procedure:

remove any carpet or trim
clean the surface of dirt and residue
cut the panel to the desired shape
position it on the floor pan
reinstall the carpet over the material
no adhesive is necessary under the carpet and in other applications spray adhesive can be used. The material is waterproof and resistant to oils and moisture.

Available variants

DynaPad is available in two main formats:

DYN21100 - Single sheet
- Dimensions: approximately 81 x 137 cm
- Surface: ~1.1 m²
- Thickness: approximately 12 mm
- Ideal for localized interventions

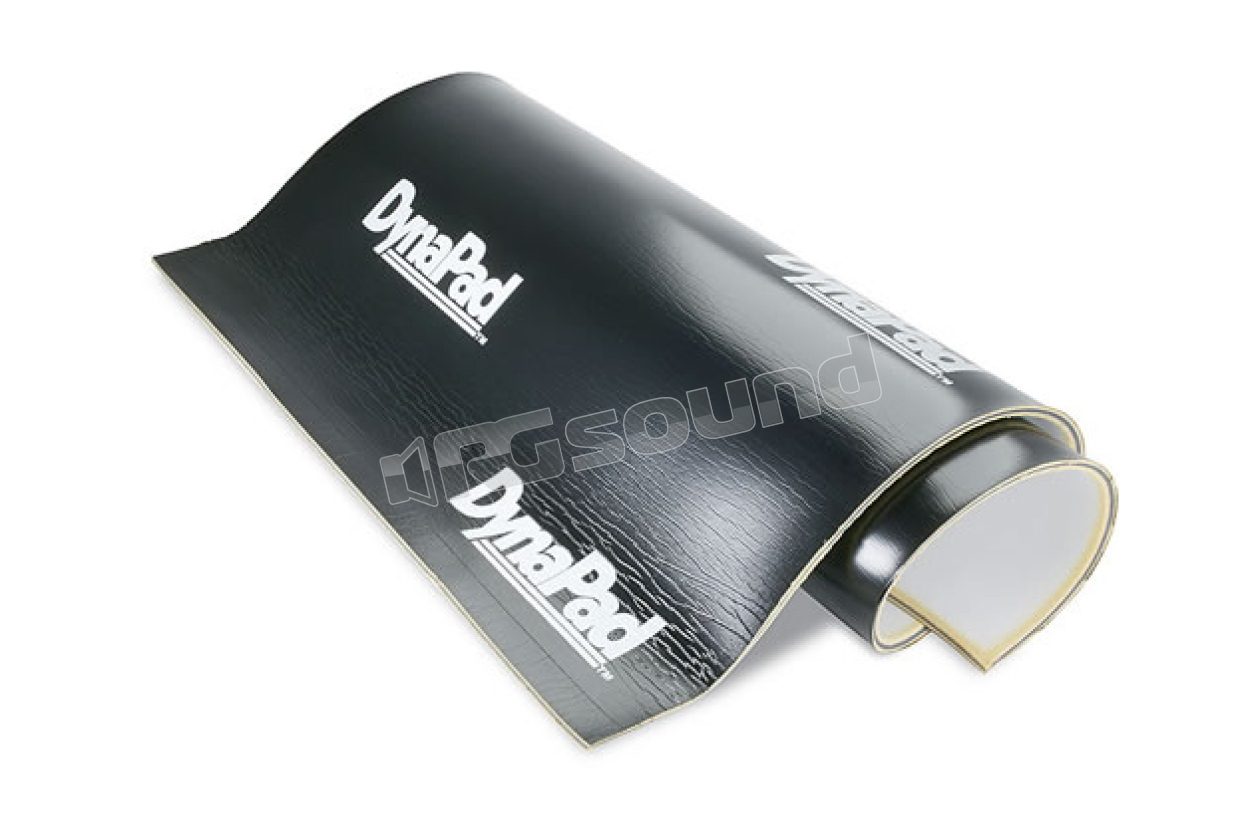

DYN50110 - Roll
- Dimensions: 137 cm x 7.6 m
- Surface: ~10.4 m²
- Thickness: approximately 12 mm
- Suitable for full coverage or professional installations

Both versions use the same multilayer structure and the same thermal-acoustic properties.

DynaPad is a material designed to block noise and heat in applications where damping materials are not sufficient. Its multilayer structure makes it particularly effective on low frequencies and in floor pan applications. It is a fundamental element in complete soundproofing systems, where it is used in combination with vibration damping and sound-absorbing materials to achieve more effective acoustic control.
