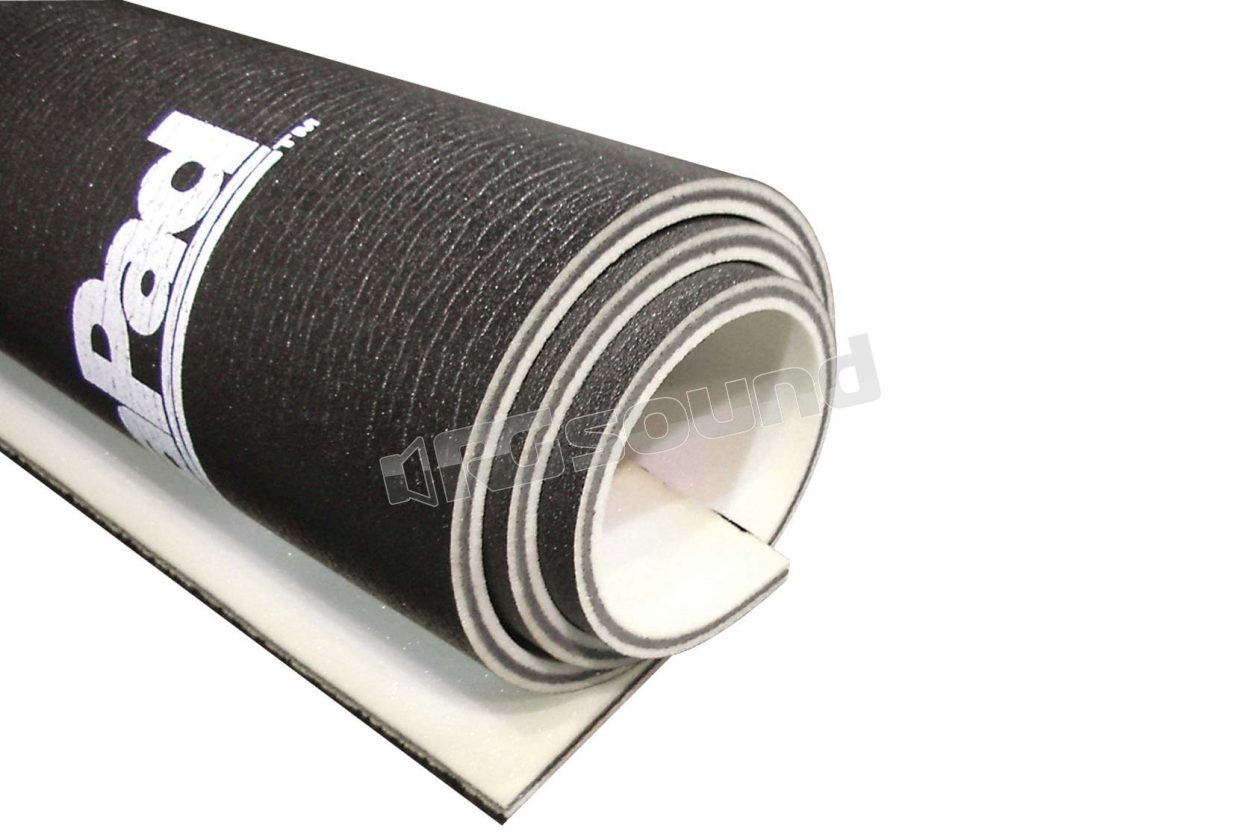

DYN22000 DynaPad 81cm x 137cm sheet

Dynamat
Your price:
€ 135,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to

Dynamat DYN22000 DynaPad thermal and acoustic insulation - Pack of 1 sheet

DynaPad is a four-layer composite barrier that provides excellent acoustic attenuation and thermal insulation. This heavier material uses "Dissimilar layer insulation" technology that solves two of the most difficult automotive problems - thermal noise and low frequency exhaust. DynaPad is used primarily on the floor pan.
DYN22000 DynaPad Features
  • Chemical resistance - Resistant to water and mineral oils
  • Description - DynaPad is a four-layer composite barrier material using a 1 pound per square foot vinyl barrier that is sandwiched between two layers of 3/16 inch thick acoustic foam with a urethane top layer. DynaPad is designed to provide an under-the-carpet sound barrier in car interiors, residential and commercial buildings. The material can withstand temperature ranges between -40ºF and +225ºF (-40°C to +107ºC)
  • Acoustic properties - The effectiveness of DynaPad depends on the material's ability to form an effective barrier between the noise source and the listener. The barrier supported between two layers of acoustic foam creates a sound absorption-barrier-absorption isolation system. This system optimizes the amount of sound that can be blocked.
  • Applications - DynaPad is optimized for use under carpet in automotive, residential and commercial applications. It is also used in other applications that require acoustic barrier foam systems.
  • Installation - Use scissors, knife or die to cut DynaPad to the desired size and shape before installation. Afterwards, remove dust, grease, moisture and other foreign substances from the application surface. When used under carpet, no spray adhesive is necessary. For other locations, spray adhesive on the application surface and on the back of the DynaPad.

Manuale di istruzioni

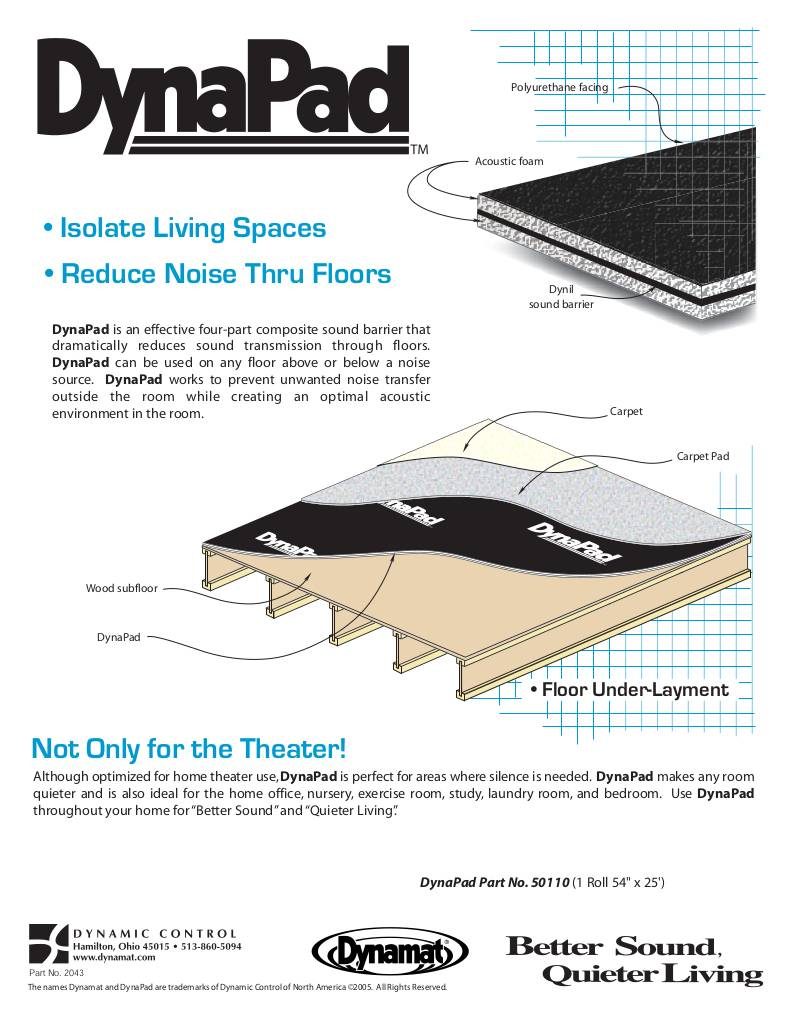

20130419122121-2043-dynapad-lit.pdf

Scheda tecnica

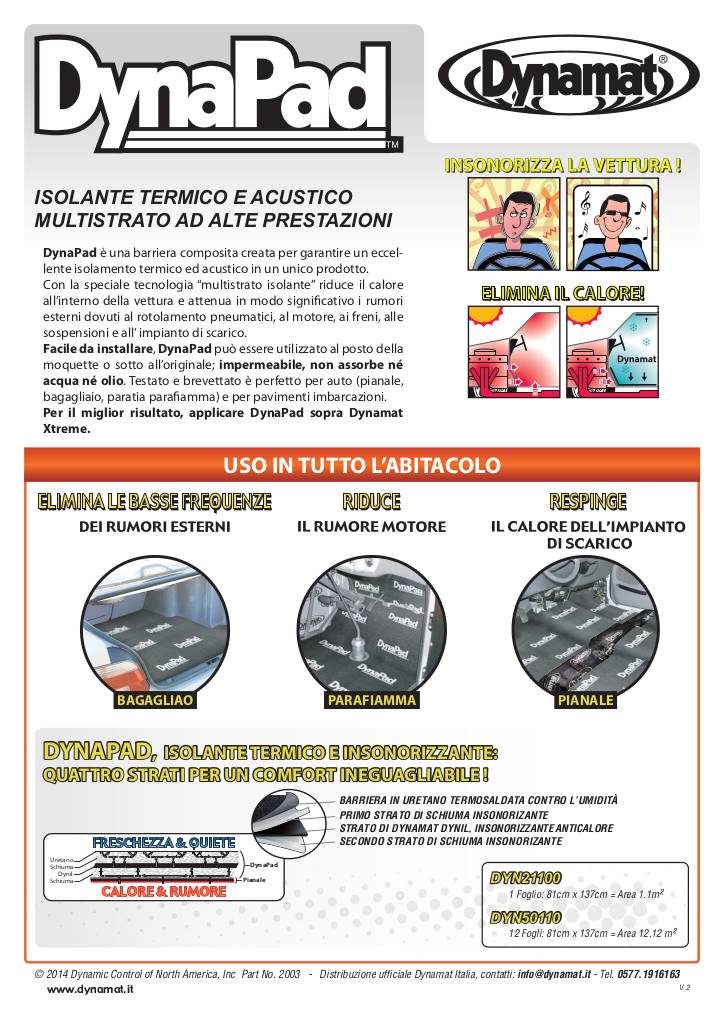

20141027102916-dynamat-dynapad-low.pdf

Caratteristiche

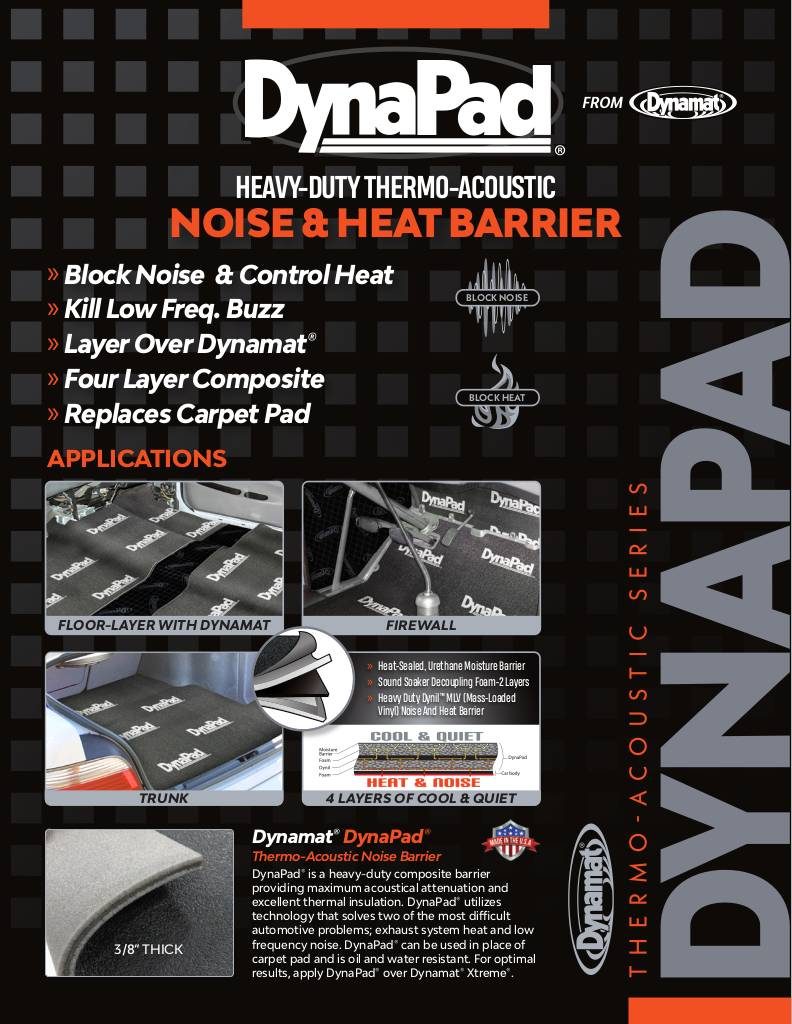

n-20240222145753-dynapad-datasheet.pdf

1x DynaPad sheet 81 x 137 cm (1.1 m²)

Dynamat DYN22000 DynaPad Technical Specifications

  • Four-part composite foam barrier with two layers of expanded polyurethane thickness 0.18 inches.
  • Color Charcoal Gray/Black
  • STC 28
  • Mass 1.09 lb/ft (5.32 kg/m)
  • Thickness 0.452 inches (11.48 mm)
  • Temperature range (resistance) 40 F to 220 F (-40 C to +105 C)
  • Standard Complies with MVSS302
  • UL94-V0 (barrier)
  • UL94HF (foam)
€ 135,00 Price incl. VAT
