Dynamat DYN21212 DynaDeck 12mm x 366 cm x 137cm (5m²) Waterproof Sound Dampening and Thermal Insulating Flooring

DynaDeck is a flooring covering designed to replace a vehicle's original carpet with a technical waterproof, durable and sound-dampening surface. It is composed of a multilayer structure that combines high-resistance vinyl and thermaoacoustic foam, with the goal of reducing the transmission of noise and heat through the floor pan. The material is used in automotive, restoration and special vehicles where a surface resistant to wear and external elements is required.

How a DynaDeck covering works and what it is for

A vehicle's floor is one of the main paths for transmission of noise and heat from the road, engine and transmission. DynaDeck acts as a composite barrier, combining:

  • an upper layer of high-resistance vinyl
  • a lower layer of closed-cell thermaoacoustic foam

This structure makes it possible to:

  • attenuate the transmission of road noise
  • reduce heat transfer from the vehicle floor
  • improve the overall comfort of the cabin
  • create a surface resistant to water, oils and wear

The material therefore works both as an acoustic insulator and as a technical flooring finish.

When to use it, where to apply it and how to install it

DynaDeck is recommended for vehicles where you want to replace the original carpet with a more durable and functional surface. Typical applications:

  • cabin floor pan
  • trunk floor
  • restoration vehicles (classics, hot rods)
  • off-road and jeeps
  • trucks and work vehicles
  • boats and RVs

It is particularly suitable in contexts where the following are required:

  • resistance to water and oils
  • ease of cleaning
  • durability over time
  • basic thermal and acoustic insulation

Installation

One of the distinctive aspects of DynaDeck is its simplified installation.
Procedure:

  1. remove the existing carpet or covering
  2. clean and dry the floor pan surface
  3. position the material following the geometry of the vehicle floor
  4. adapt any custom cuts

The material:

  • does not require permanent gluing
  • can be removed and reused
  • adapts to the floor thanks to its weight and flexible structure

For optimal results, installation over a Dynamat Xtreme-type damping layer is recommended.

Variants and coverage

DynaDeck is available in multiple formats to fit different surfaces:

This modularity allows you to cover:

  • single floor pans
  • entire cabins
  • rear compartments and complete trunks

DynaDeck is a technical flooring covering solution for vehicles that integrates acoustic insulation, thermal protection and mechanical resistance in a single material. Unlike traditional damping materials, it does not act on the vibrations of surfaces but as a continuous structural barrier, improving the comfort and durability of the floor pan over time. It is indicated for applications where the vehicle's floor must be functional, durable and easy to manage, as well as acoustically more controlled.

Scheda tecnica

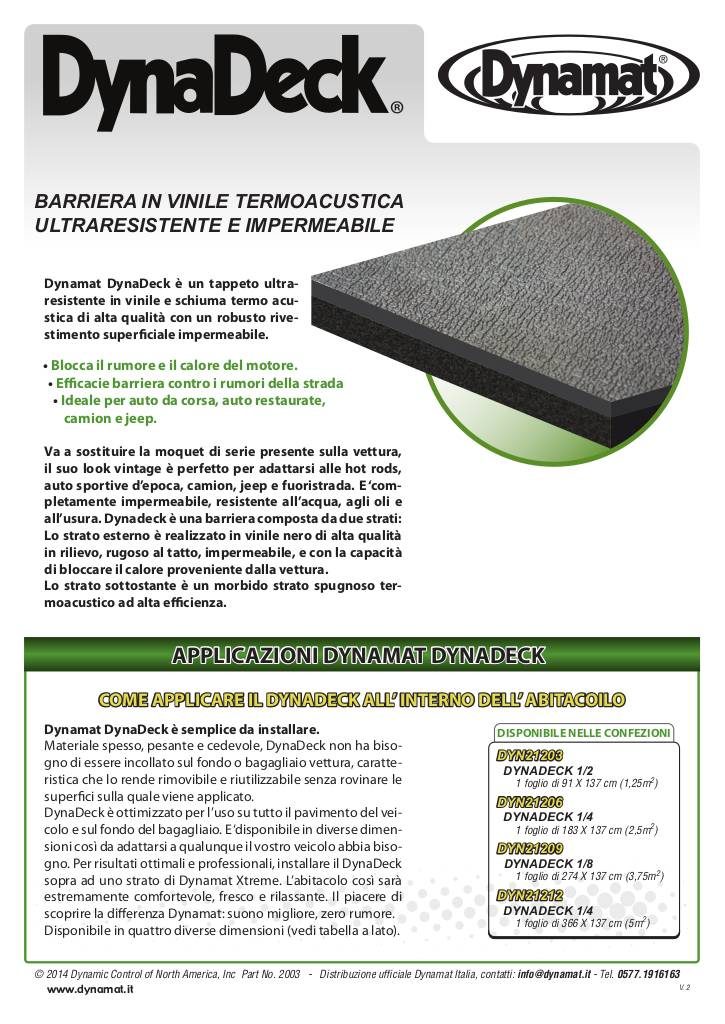

20141027103116-dynamat-dynadeck-low.pdf

Scheda tecnica

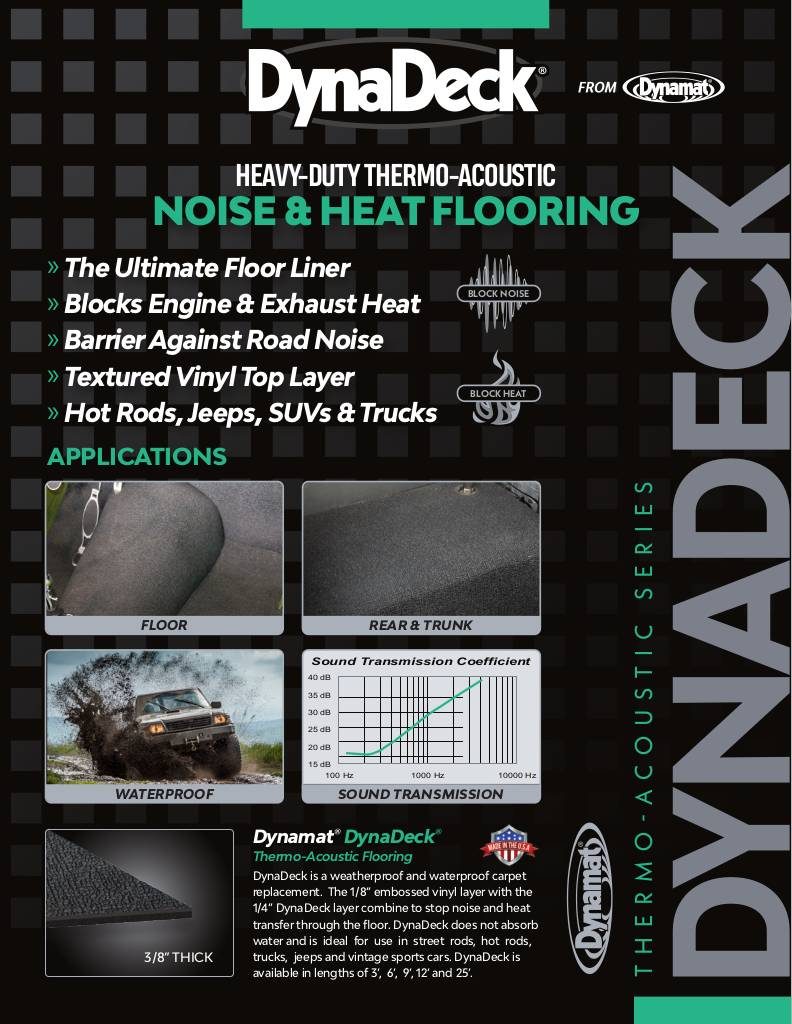

n-20240222154513-dynadeck-datasheet.pdf

Dynadeck 366 x 137cm (5m²), 12mm thick

Dynamat DYN21212 DynaDeck Technical Specifications

  • Twisted grain wear surface T(1)
  • Characteristic Typical Value
  • Type Vinyl
  • Model Grain twist
  • Reinforced backing
  • Total weight 23.7 oz/yd2
  • Color black

PVC Barrier

  • Type PVC
  • Specific gravity 2.5
  • Flexibility Very floppy

Typical Values

  • Closed-cell foam VSC(3)
  • Characteristic Typical Value
  • Base polymer PVC/NBR
  • Density 3.5 - 7.0 lb/ft3 (ASTM D1056)
  • Compression Set @50% 25% max. (ASTM D1056)
  • Water absorption 10% max. (ASTM D1667)
  • Thermal conductivity 0.27 BTU-in/hr-ft2°F @ 72 °F (ASTM C518)

Composite

  • Characteristic Typical Value
  • Layer lamination Thermal bond - No adhesive
  • Peel strength between 700 g/in (ASTM D 903 Mod)
  • Layers (or material destruction)
  • Flammability FMVSS 302 - Passed
