DYN21206 DynaDeck 12mm thick x 183 cm x 137cm (2.5m²)

Dynamat
Your price:
€ 419,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to

Dynamat DYN21206 DynaDeck 12mm thick x 183 cm x 137cm (2.5m²) waterproof soundproofing and thermal insulating flooring for cars and vehicles

DynaDeck is a flooring covering designed to replace the vehicle's original carpet with an impermeable, resistant and noise-insulating technical surface. It is composed of a multi-layer structure that combines high-resistance vinyl and thermo-acoustic foam, with the aim of reducing the transmission of noise and heat through the floor pan. The material is used in the automotive field, restoration and special vehicles where a surface resistant to wear and external agents is required.

How a DynaDeck covering works and what it is for

The floor of a vehicle is one of the main transmission routes for noise and heat from the road, engine and transmission. DynaDeck acts as a composite barrier, combining:

  • an upper layer of high-resistance vinyl
  • a lower layer of closed-cell thermo-acoustic foam

This structure allows:

  • attenuating the transmission of road noise
  • reducing heat passage from the vehicle bottom
  • improving overall cabin comfort
  • creating a surface resistant to water, oils and wear

The material therefore functions as both an acoustic insulator and a technical finish for the floor.

When to use it, where to apply it and how to install it

DynaDeck is indicated for vehicles where you want to replace the original carpet with a more resistant and functional surface. Typical applications:

  • cabin floor pan
  • trunk bottom
  • restoration vehicles (classics, hot rods)
  • off-road vehicles and jeeps
  • trucks and work vehicles
  • boats and RVs

It is particularly suitable in contexts where the following are required:

  • water and oil resistance
  • ease of cleaning
  • durability over time
  • basic thermal and acoustic insulation

Installation

One of the distinctive aspects of DynaDeck is its simplified installation.
Procedure:

  1. remove existing carpet or covering
  2. clean and dry the floor pan surface
  3. position the material following the geometry of the vehicle bottom
  4. adapt any custom cuts

The material:

  • does not require permanent gluing
  • can be removed and reused
  • adapts to the floor thanks to its weight and flexible structure

For optimal results, installation over a damping layer such as Dynamat Xtreme is recommended.

Variants and coverage

DynaDeck is available in multiple formats to adapt to different surfaces:

This modularity allows covering:

  • individual floor pans
  • entire cabins
  • rear compartments and complete trunks

DynaDeck is a technical flooring covering solution for vehicle floors that integrates acoustic insulation, thermal protection and mechanical resistance in a single material.

Unlike traditional damping materials, it does not act on the vibrations of surfaces but as a continuous structural barrier, improving the comfort and durability of the floor pan over time. It is indicated for applications where the vehicle floor must be functional, resistant and easy to manage, as well as acoustically more controlled.

Scheda tecnica

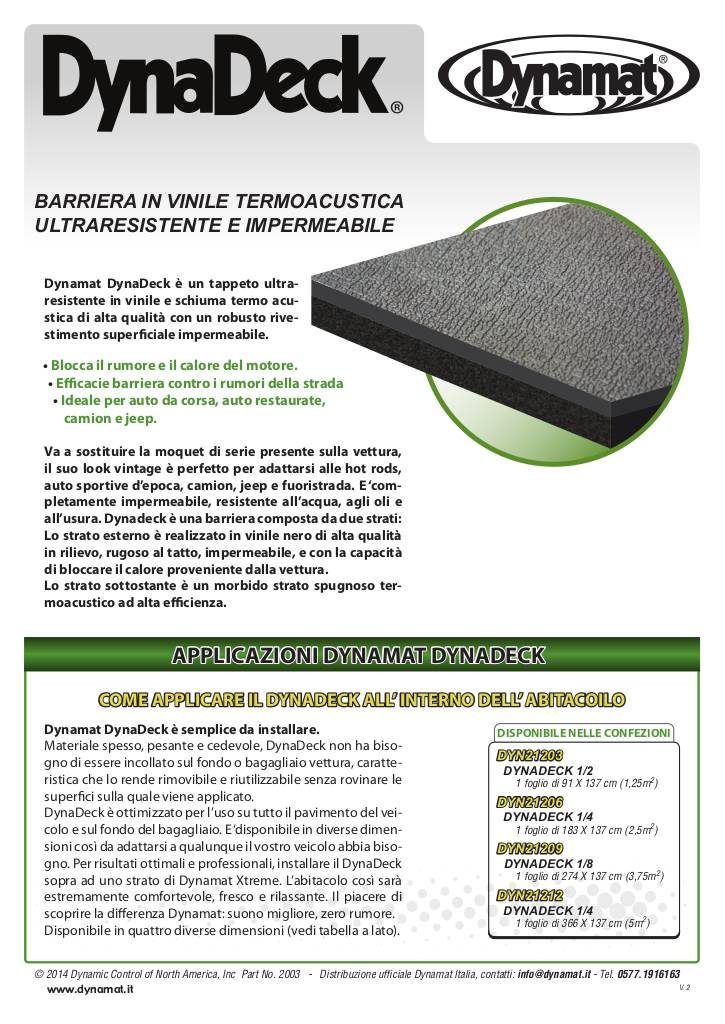

20141027103305-dynamat-dynadeck-low.pdf

Scheda tecnica

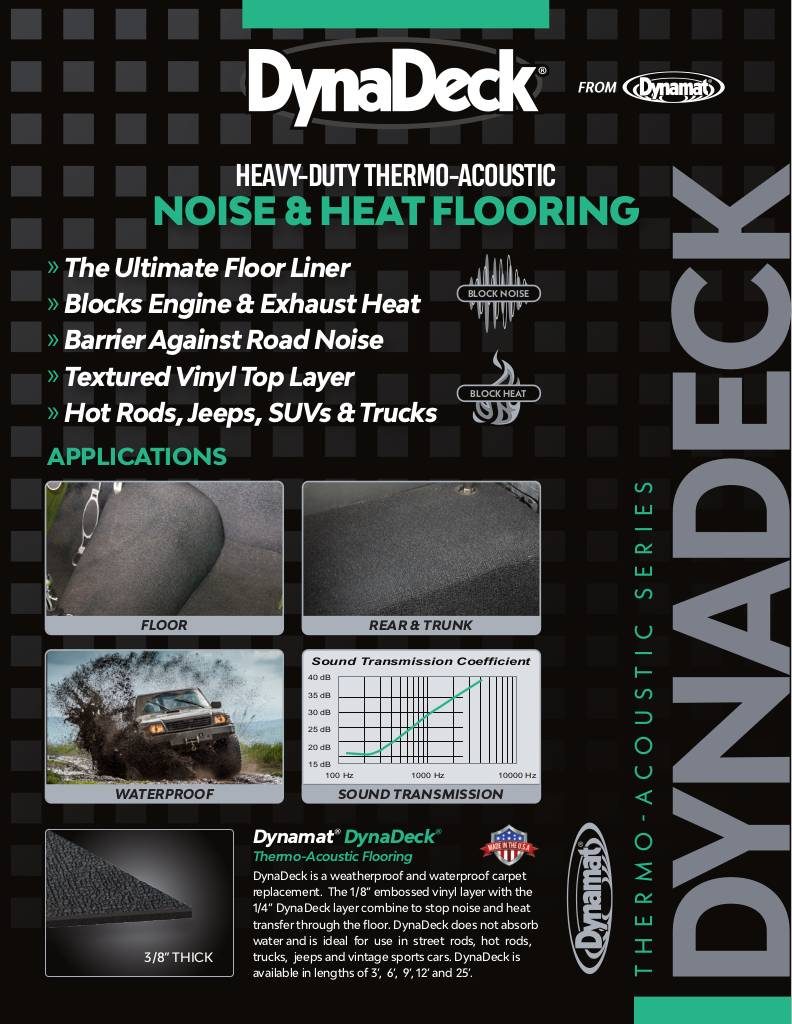

n-20240222155123-dynadeck-2023.pdf

Dynadeck 183 x 137cm (2.5m²), 12mm thick

Dynamat DYN21206 DynaDeck Technical specifications

  • Wear surface twisted grain T(1)
  • Characteristic Typical value
  • Type Vinyl
  • Model Twisted grain
  • Reinforced backing
  • Total weight 23.7 oz/yd2
  • Color black

PVC Barrier

  • Type PVC
  • Specific gravity 2.5
  • Flexibility Very limp

Typical values

  • Closed-cell foam VSC(3)
  • Characteristic Typical value
  • Base polymer PVC/NBR
  • Density 3.5 - 7.0 lb/ft3 (ASTM D1056)
  • Compression Set @50% 25% max. (ASTM D1056)
  • Water absorption 10% max. (ASTM D1667)
  • Thermal conductivity 0.27 BTU-in/hr-ft2°F @ 72 °F (ASTM C518)

Composite

  • Characteristic Typical value
  • Lamination of layers Thermal bond - No adhesive
  • Peel strength between 700 g/in (ASTM D 903 Mod)
  • Layers (or material destruction)
  • Flammability FMVSS 302 - Passed
€ 419,00 Price incl. VAT
